IDC Male Connector RJ21 Centronic Ribbon Cable Connector With Cable Clip

Good quality 50 Pin Centronics Connector for sales
Good quality 50 Pin Centronics Connector for sales
I'm Online Chat Now

IDC Male Connector RJ21 Centronic Ribbon Cable Connector With Cable Clip

China IDC Male Connector RJ21 Centronic Ribbon Cable Connector With Cable Clip supplier

Large Image :  IDC Male Connector RJ21 Centronic Ribbon Cable Connector With Cable Clip

Product Details:

Place of Origin: China
Brand Name: FUYCONN
Certification: UL 94-V0, ROHS-certified, ISO 9001:2008, ISO 14001:2004

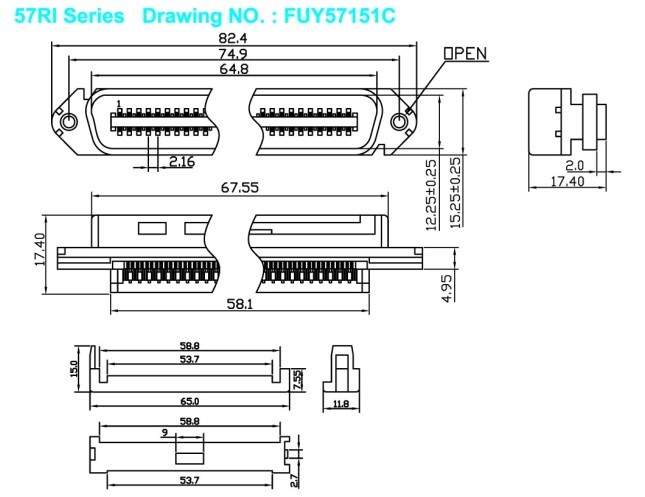

Model Number: FUY57151C-50P

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: USD2 - USD5
Packaging Details: Vacuum Tray + Carton
Delivery Time: 7-10 days
Payment Terms: T/T, Western Union or Paypal
Supply Ability: 1 million/ month
Detailed Product Description
Product Name: IDC Male Connector Product Line: Champ Connector
Type: Centronic IDC Connector Connector Style: Plug
Number Of Terminal: 50 Pin Gender: Male


IDC Male Connector RJ21 Centronic Ribbon Cable Connector With Cable Clip

Detail Description:
Product Category: Centronic connector
Product Line: Champ Connector
Type: Centronic IDC Connector
Connector Style:Plug
Number of Terminal: 50 pin
Gender: Male
Insulator Color: Black
Insulator Material: PPO
Contact pin Material: Phosphor Bronze
Centerline = 2.16mm [0.085in]
Mounting Option: Cable Clip
Application: RJ21 Cable



Common Features:
Designed for Cable-to-cable and cable-to-PC Board applications
Avilable in Plug & Socket Style
Terminal Option with various types
Connector and hood sold as complete assembly
Avilable in low profile hood style
Metal shell provides grounding and shielding capability
Mates with industry compatible connector




Product Features:
Product Type:Centronics IDC Connector
Product Line:Champ Connector
Gender:   Male
Connector Style: Plug
Certerline :2.16mm(0.85in)
Number of Position: 50 pin / 25 Pair
Contact Plating: Gold Flash 1U", 3U", 5U" ,10U", 15U", 30U"
Insulator Color:Black
Shielded: Yes
Orientation: Flat
Mating connector lock: Cable Clip




Materials
Contact Material: Phosphor Bronze
Insulator:PPT (UL 94-V0)
Housing Material:PPT Thermoplastic Cover




Electrical Character
Current Rating:5Amp
Withstanding Voltage:AC 1000v r.m.s
Insulation Resistance:1000 Megohms Minimum at DC 500V
Contact Resistance:25M∩ Max Mated
Operation Temperature: -55°C to +105°C




Application
1, VDSL Teleccom Equipment
2, Computer Peripherals
3, Communication Equipment
4, RJ21 Cable


Advantage:

1,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample available in 2 days
