Product Details:
|
| Product Name: | Centronics Connector | Product Line: | DDK Connector |
|---|---|---|---|
| Type: | Solder Connector | Connector Style: | Cable Plug |
| Number Of Terminal: | 24 Pin | Gender: | Male |
| Metal Hood: | 30240 | ||
| High Light: | Solder DDK Connector,Cable Plug DDK Connector,Male Centronics Connector |
||

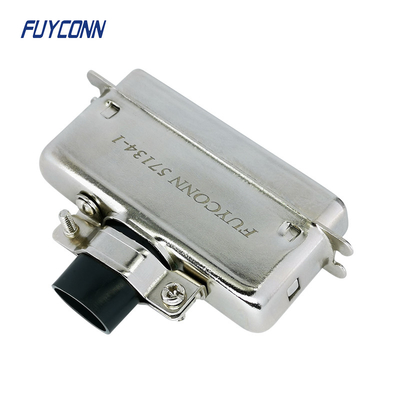

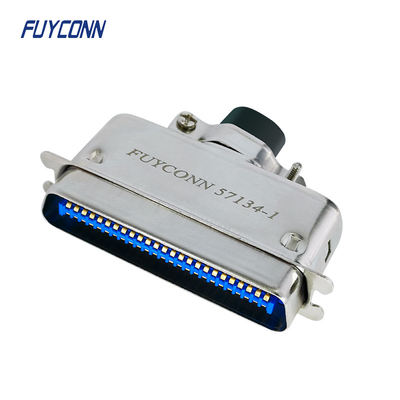

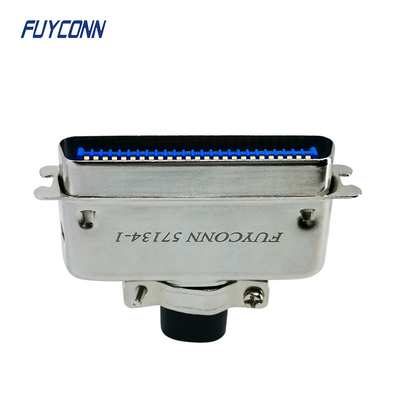

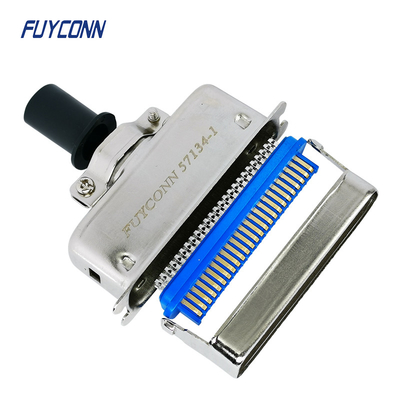

DDK CN50 57-30500 Connector, 50Pin Cable Plug Male 30500 Solder Centronic Connector W/ Metal Hood
2.16mm pitch Centronic Solder Fittings 57 CN50 Connector, 25 pair 50P Plug Male 57 30500 centronic connector with Metal Cover
DDK 57-30 Cable Plug Top Cable Entry Solder Centronics Connector
FUY57134 180° Metal Hood Solder 14 24 36 50 pins Centronix Connector Male Plug Type
The Centronics 50-pin connector is arranged in two rows of pins each with 25 contacts. This connector is held in place by bail locks. The Centronics 50 connector is most often used by older SCSI-1 devices (scanners, storage devices, etc.). A slight variant of the Centronics 50 connector is used in voice/data applications. This variant is commonly called a Telco connector.
Detail Description:
Product Category: Centronic connector
Product Line: Champ Connector
Type: Centronic Solder Connector
Number of Terminal: 14 24 36 50pin
Connector Style:Plug
Gender: Male
Centerline = 2.16mm [0.085in]
Conver Style: 180° Metal Hood
Insulator Color: Black or Blue
Insulator Type: Hard connection
Insulator Material: PBT
Contact pin Material: Brass
Shield Plating: Nickel
Mounting Option: 180°Cable Exit Angle, MD Type
Common Features
|
Designed for Cable-to-cable and cable-to-PC Board applications |
|
|
Board Application |
|
|
Terminal Option with various types |
|
|
Connector and hood sold as complete assembly |
|
|
Avilable in low profile hood style |
|
|
Metal shell provides grounding and shielding capability |
|
|
Mates with industry compatible connector |
Product Features
|
Product Type: |
Centronics Solder Connector |
|
Product Line: |
Champ Connector |
|
Gender: |
Male |
|
Connector Style: |
Plug |
|
Certerline : |
2.16mm(0.85in) |
|
Number of Position: |
50 pin |
|
Contact Plating: |
Gold Plating (1U", 3U", 5U" ,10U", 15U", 30U") |
|
Insulator Color: |
Black or Blue |
|
Shielded: |
Yes |
|
Orientation: |
180 Degree Cable Exit |
|
Mating connector lock: |
Screwlocks |
|
Cover |
Metal Hood |
Materials
|
Contact Material: |
Brass |
|
Insulator: |
PBT (UL 94-V0) |
|
Shell |
Nickel Plated Steel |
|
Housing Material: |
Nickel Plated Steel |
Electrical Character
|
Current Rating: |
5Amp |
|
Withstanding Voltage: |
AC 1000v r.m.s |
|
Insulation Resistance: |
1000 Megohms Minimum at DC 500V |
|
Contact Resistance: |
25M∩ Max Mated |
|
Operation Temperature: |
-55°C to +105°C |
Application
|
1, VDSL Teleccom Equipment |
|
|
2, Computer Peripherals |
|
|
3, Communication Equipment |
|
|
4, RJ21 Cable |
|
|
5, Cable to Panel |
|
|
6, Cable to cable |
|
|
7, Computer terminal |
|
|
8, Telemetering |
|
|
9, Test Equipment |
|
|
10, Printer |
