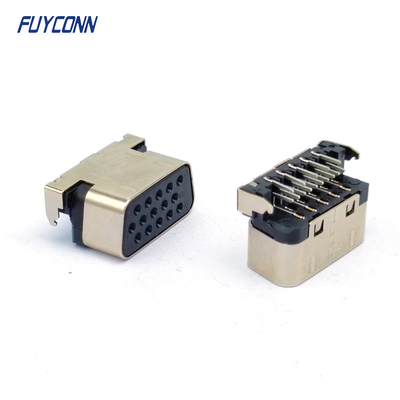

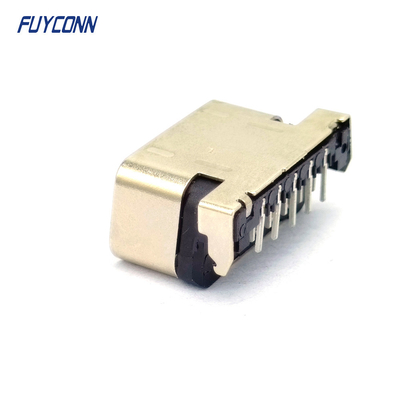

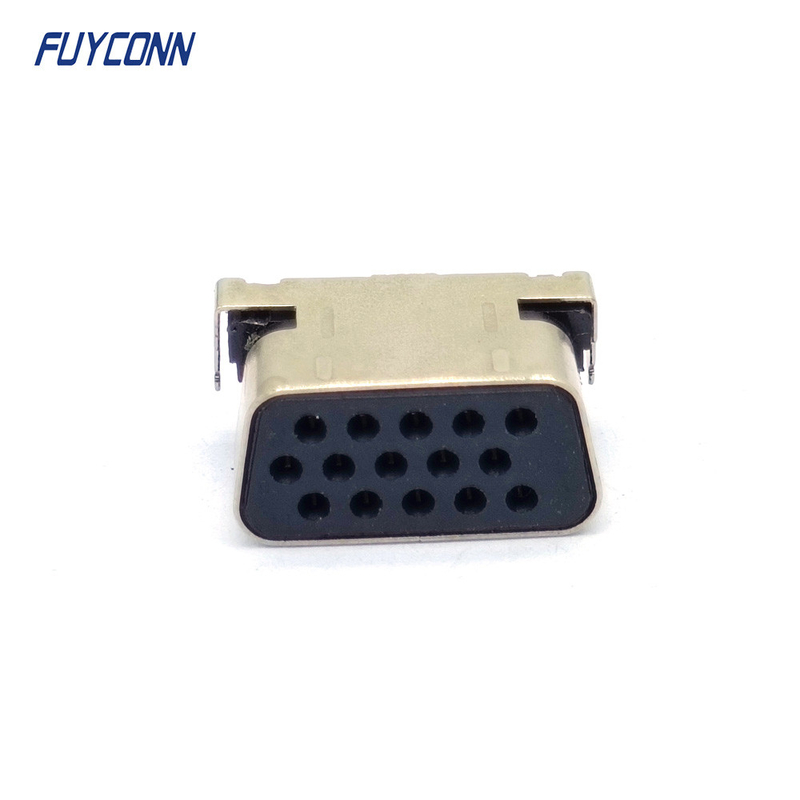

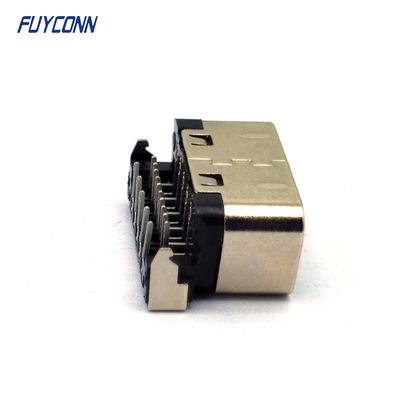

Lower Profile D-SUB Connectors Right Angle PCB 15 Pin Female VGA

Lower Profile D-SUB Connectors Right Angle PCB 15 Pin Female VGA
Lower Profile D-SUB Connectors Right Angle PCB 15 Pin Female VGA
Lower Profile D-SUB Connectors Right Angle PCB 15 Pin Female VGA Lower Profile D-SUB Connectors Right Angle PCB 15 Pin Female VGA Lower Profile D-SUB Connectors Right Angle PCB 15 Pin Female VGA Lower Profile D-SUB Connectors Right Angle PCB 15 Pin Female VGA Lower Profile D-SUB Connectors Right Angle PCB 15 Pin Female VGA

Large Image :  Lower Profile D-SUB Connectors Right Angle PCB 15 Pin Female VGA

Product Details:
Place of Origin: China
Brand Name: FUYCONN
Certification: ROHS-certified, ISO 9001:2008, ISO 14001:2004
Model Number: FUYSLIM4003
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiable
Packaging Details: Vacuum Tray + Carton
Delivery Time: 7-10 days
Payment Terms: T/T or Paypal
Supply Ability: 1 million/ month
Contact Now

Lower Profile D-SUB Connectors Right Angle PCB 15 Pin Female VGA

Description
Product Name: D-sub Connectors Product Line: SLIM Connector
Terminal Type: Right Angle Connector Product Type: 0.4mm Lower Profile
Connector Type: VGA Gender: Female
Number Of Terminal: 15pin
High Light:

Lower Profile D-SUB Connectors

,

VGA D-SUB Connectors

,

0.4mm DB Connector

Female 0.4mm Low-Profit D-SUB Connector Right Angle PCB DIP Type15 Pin VGA Connector, Female 15pin SLIM Connector

D-type connectors most commonly consist or two and sometimes more parallel rows of connections. The connectors have a D-format metal shell. This not only provides mechanical strength to the connector, but it also provides some limited screening as well - the metal shells of the plug and socket make contact to provide screening. Also the panel mounting connectors are typically secured to the panel using nuts that have an additional thread that allows the mating connector to be secured to it to prevent it working loose. Additionally the free connectors can have backshells that can provide screening and can be connected to the cable screen, or if plastic, they can provide protection. Strain relief on the cable is also provided.
The pins in the more common connector types with two rows of pins (e.g. 9, 15, 25 and 37 way) are spaced approximately 0.108 inch (2.74 mm) apart with the rows spaced 0.112 inch (2.84 mm) apart. High pin counts and higher pin densities can be achieved using more rows of pins.
Product Feature

1. Product Name:
D-SUB Connector
2. Product Line:
SLIM Connector
3. No. of pin
15pin
4. Material:
PBT
5.Contact Type
Right Angle
6. Gender
Female

Data Sheet

Lower Profile D-SUB Connectors Right Angle PCB 15 Pin Female VGA 0
