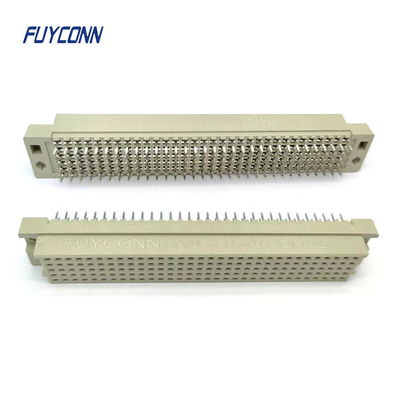

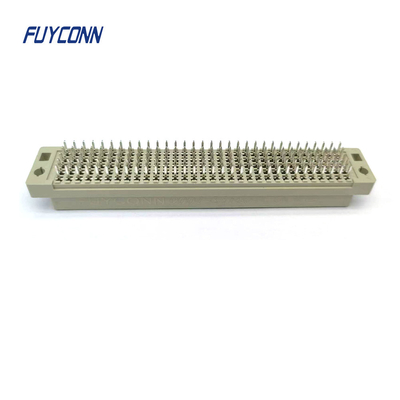

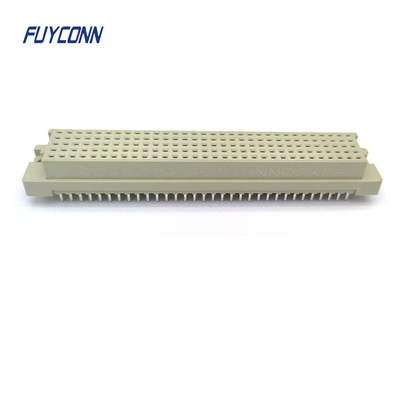

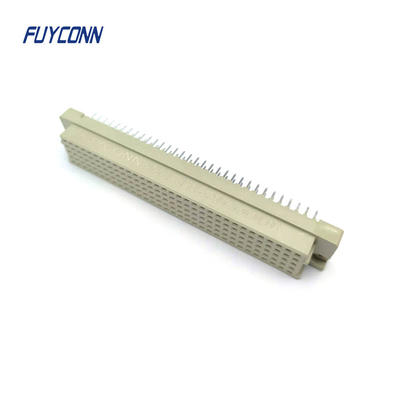

Female 9001 Series Connector PCB Vertical 5 Row 5*32P 160 Pin DIN 41612 Connector

Female 9001 Series Connector PCB Vertical 5 Row 5*32P 160 Pin DIN 41612 Connector
Female 9001 Series Connector PCB Vertical 5 Row 5*32P 160 Pin DIN 41612 Connector
Female 9001 Series Connector PCB Vertical 5 Row 5*32P 160 Pin DIN 41612 Connector Female 9001 Series Connector PCB Vertical 5 Row 5*32P 160 Pin DIN 41612 Connector Female 9001 Series Connector PCB Vertical 5 Row 5*32P 160 Pin DIN 41612 Connector Female 9001 Series Connector PCB Vertical 5 Row 5*32P 160 Pin DIN 41612 Connector Female 9001 Series Connector PCB Vertical 5 Row 5*32P 160 Pin DIN 41612 Connector

Large Image :  Female 9001 Series Connector PCB Vertical 5 Row 5*32P 160 Pin DIN 41612 Connector

Product Details:
Place of Origin: China
Brand Name: FUYCONN
Model Number: FUYDIN206-160S
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: USD0.6-USD2
Packaging Details: Tray + Carton
Delivery Time: 1-4 weeks
Payment Terms: T/T, Paypal
Supply Ability: 100000000/month

Female 9001 Series Connector PCB Vertical 5 Row 5*32P 160 Pin DIN 41612 Connector

Description
Product Category: DIN41612 Connector Product Line: Eurocard Connector
Number Of Terminal: 5*32P 160pin Number Of Rows: 5 Rows
Terminals Type: Straight / Vertical Connector Type: PCB Type
Insulator Color & Material: Grey & PBT Contact Pin Material: Phosphor Bronze
Contact Plating: Gold Plating(1u",3u",5u",10u",15u") Pitch: 2.54mm
Gender: Female
High Light:

5 Row DIN 41612 Connector

,

160 Pin DIN 41612 Connector

Female 9001 Series Connector PCB Vertical 5row 5*32P 160Pin DIN 41612 Connector



PCB Straight 5 rows 60pin Eurocard 41612 Connector, 2.54mm pitch Vertical PCB 5rows Female 5*32P 160P DIN41612 Connector



DIN 41612.pdf



DIN 41612 is a DIN standard for electrical connectors that are widely used in rack based electrical systems. Standar disation of the connectors is a pre-requisite for open systems, where users expect components from different suppliers to operate together. The most widely known use of DIN 41612 connectors is in the VME bus system.


The DIN 41612 has been widely accepted as a standard for a variety of interconnection applications in the telecommunications and data markets worldwide. The most widely known use of DIN 41612 connectors is in the VME bus system.DIN connectors with three rows(a, b, c) of contacts on 0.100"(2.54mm) square grid are available in wire-wrap or solder tail type terminations. 5pin 10pin, 15pin 20pin,30pin, 32pin 48pin 64pin, 96pin, 128pin and 160pin are available.



Product features:
1. Product Line: DIN41612 Connector
2. Product Name: Eurocard connector
3. Connector Type PCB DIN 41612 Connector
4. Connector Gender: Female
5. Number of Position: 5*32P 160pin
6.Number of rows: 5 rows
7. Contact Material: Brass
8. Contact Plating: 1U", 3U", 5U", 10U", 15U",30U"
9. Insulation Material: PBT
10.Color Gray
11. Terminal Type Straight
12. Pitch 2.54mm



Electrical Specifications
1. Current Rating: 5Amp
2. Voltage rating: DC 1000v per minute
3. Insulator Resistance: 1000Mn MIN.(at 500V DC)
4. Operation Temperature: -55°C to +105°C



Female 9001 Series Connector PCB Vertical 5 Row 5*32P 160 Pin DIN 41612 Connector 0



Eurocard line is available in board-to-board, wire-to-board, ribbon cable-to-board, and high-current connectors. Our Eurocard connectors incorporate internationally accepted design advantages of DIN 41612 and IEC 60603-2 two-piece connectors in a quality design that provides high Signal Integrity (SI) and electrical performance. With a broad portfolio, it is easy to find the right connector type and style to fit your application. Common Bus Systems include STE Bus, CIMBUS, FUTUREBUS, VMEBus, MULTIBUS (II), NUBUS, VXi Bus, and VME 64X.
