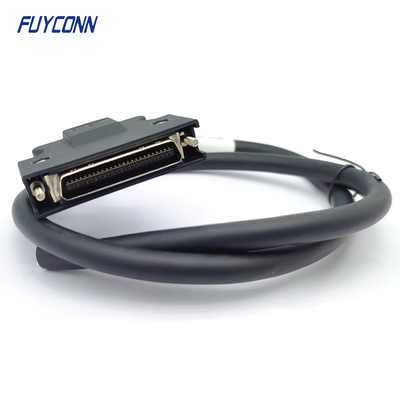

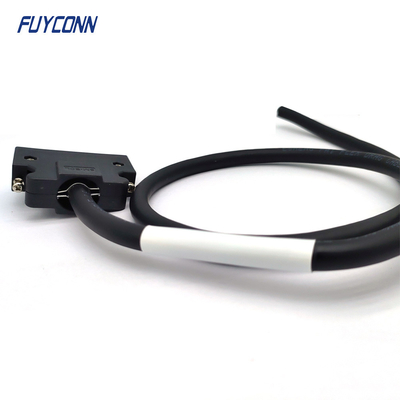

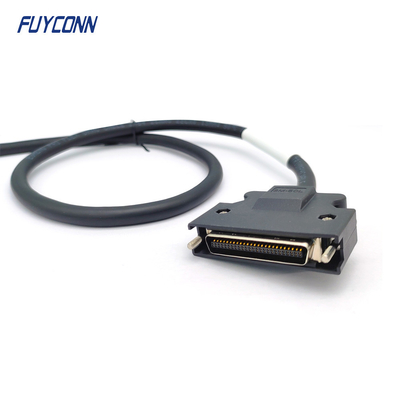

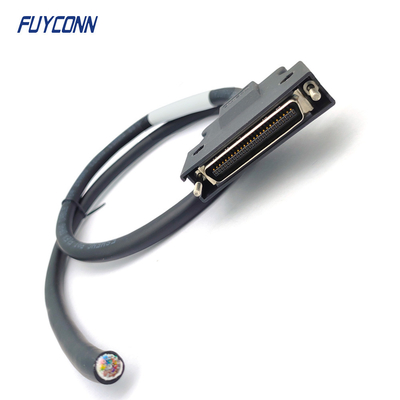

50P SCSI Cable Solder Assemble DM50 Male Connector 22 Wire SCSI Cable Assembly

50P SCSI Cable Solder Assemble DM50 Male Connector 22 Wire SCSI Cable Assembly
50P SCSI Cable Solder Assemble DM50 Male Connector 22 Wire SCSI Cable Assembly 50P SCSI Cable Solder Assemble DM50 Male Connector 22 Wire SCSI Cable Assembly 50P SCSI Cable Solder Assemble DM50 Male Connector 22 Wire SCSI Cable Assembly 50P SCSI Cable Solder Assemble DM50 Male Connector 22 Wire SCSI Cable Assembly

Large Image :  50P SCSI Cable Solder Assemble DM50 Male Connector 22 Wire SCSI Cable Assembly

Product Details:
Place of Origin: Dongguan
Brand Name: FUYCONN
Certification: ISO
Model Number: FUYMCCABLE067
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Price: Negotiable
Packaging Details: PE Bag + Carton
Delivery Time: 2-4 weeks
Payment Terms: T/T

50P SCSI Cable Solder Assemble DM50 Male Connector 22 Wire SCSI Cable Assembly

Description
Type: SCSI Connector Cable Assembly Pin Of Connector: 50P
Connector Gender: Male Cable Type: 28AWG
Assembled Type: Two Ends Assemble SCSI Connector Cable Length: Customization
High Light:

50P SCSI Cable Assembly

,

DM50 Male Connector SCSI Cable Assembly

SCSI MD50 Male HPCN Connector Assembled 22 wires Cable, 50pin Solder Cup SCSI Connector Cable w/ 22 Wires SCSI Cable

SCSI cables are constructed to meet or exceed ANSI SCSI II, SCSI III and FAST SCSI ( Ultra SCSI ) specifications. These specifications define the SCSI cable, connector, and backshell operational characteristics for all external assemblies.
Small Computer System Interface. The SCSI cables can also be known as a scuzzy cable. SCSI cable assemblies have either male to male, male to female or female to female connection configurations.
Internal SCSI cables are constructed for either single ended or differential applications. For applications requiring 50 conductor flat cable ( 0.050 centers ) PVC meets ULTRA SCSI requirements. For applications requiring 68 conductor ( 0.025 centers ) TPE meets Ultra SCSI requirements. Ultra SCSI cables are downward compatible with SCSI II applications.
SCSI Cable assembly with high density connector with 1.27mm (0.050-inch) spacing Conforms to the American national standards institute (ANSI) specification Choice of bracket configurations includes: latch only or without rails and latch All plastic type available in 14, 20, 26, 36, 50, 50, 68,100 positions Insulator is made of polyester resin and glass fiber reinforced (UL 94-0) providing superior heat and chemical resistance Application to miniaturized electronic equipments.



SCSI Connector
Product Features
1. Product Line:
SCSI Connector
2. Product Name
MDR Connector
3. Product Type
Servo Connector
4. Connector Gender:
Male
5. Number of Position:
50P
6. Contact Material:
Phosphore Bronze
7. Contact Plating:
1U", 3U", 5U", 10U", 15U",30U"
8. Insulation Material:
PBT
9. Color:
Black
9. Housing:
180 degree Plastic Housing
10. Connector Type
Solder Cup
11. Pitch
1.27mm



Data Sheet

50P SCSI Cable Solder Assemble DM50 Male Connector 22 Wire SCSI Cable Assembly 0

  • Application

SCSI cables are used to establish high-speed connections and enable data transfers between small computers and peripherals like printers, optical disks and hard disks. The assemblies have moulded covers, which ensure stable connections between devices. Used is dependent on where the SCSI bus is located on the device.
SCSI cables are used in numerous applications including audio video, networking and telecommunications. Some SCSI cables are specifically designed for usage in high-vibration environments like industrial factories or manufacturing plants. SCSI cables are also used for AXA and SATA disk drives.
