36 Pin PCB Centronic Right Angle Female Ribbon Connector for Printer

Large Image :  36 Pin PCB Centronic Right Angle Female Ribbon Connector for Printer

Product Details:

Place of Origin:China
Brand Name:FUYCONN
Certification:UL 94-V0, ROHS-certified, ISO 9001:2008, ISO 14001:2004
Model Number:FUY57007-36P

Payment & Shipping Terms:

Minimum Order Quantity:1000pcs
Price:USD0.5 - USD3
Packaging Details:Vacuum Tray + Carton
Delivery Time:7-10 days
Payment Terms:T/T or Paypal
Supply Ability:1 million/ month
Detailed Product Description

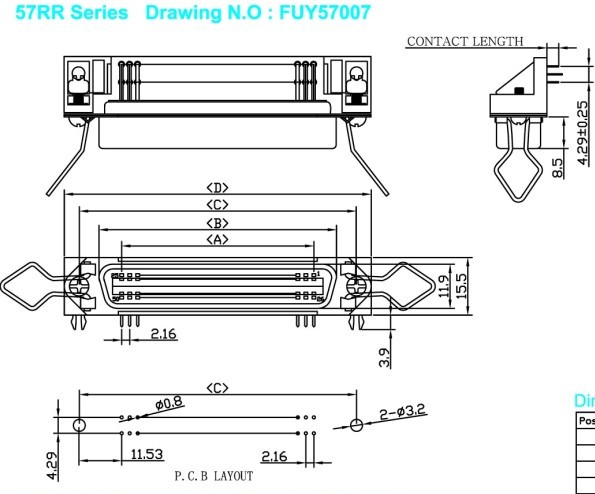

FUY57007 Female PCB Champ 36pin Centronic Right Angle Connector with Spring Latch and Board Lock

Detail Description:

Product Category: Centronic connector
Product Line: Champ Connector
Type: Right Angle PCB Connector
Number of Terminal: 36 pin
PCB Mount Style:Right Angle
Connector Style:Receptacle
Gender: Female
Insulator Color: Black or Blue
Insulator Material: PBT
Contact pin Material: Phosphor Bronze
Shield Plating: Nickel

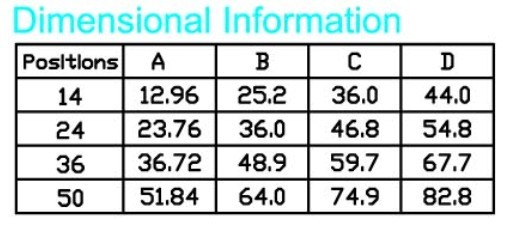

Centerline = 2.16mm [0.085in]
Mating Lock: Z Bracket Board lock
Mounting Option: Round Head Screws, Spring Latches
Application: PCB Board


Advantage:
1,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample available in 2 days

 Common Features


Designed for Cable-to-cable and cable-to-PC Board applications
Board Application
Available in Plug & Socket styles
Terminal Option with various types
Connector and hood sold as complete assembly
Available in low profile hood style
Metal shell provides grounding and shielding capability
Mates with industry compatible connector

Product Features


Product Type: Centronics PCB Mounting Connector
Product Line: Champ Connector
Gender:    Female
Connector Style:  Receptacle
Certerline : 2.16mm(0.85in)
Number of Position:  36 pin
Contact Plating:  Gold Plating (1U", 3U", 5U" ,10U", 15U", 30U")
Terminals Type Right Angle Terminals
Insulator Color: Black or Blue
Shielded:  Yes
Orientation:  R/A
Mating connector lock:  Board Lock , Spring Latches

Materials


Contact Material:  Phosphor Bronze
Insulator: PPT (UL 94-V0)
Shell Nickel Plated Steel

Electrical Character


Current Rating: 5Amp
Withstanding Voltage: AC 1000v r.m.s
Insulation Resistance: 1000 Megohms Minimum at DC 500V
Contact Resistance: 25M∩ Max Mated
Operation Temperature:  -55°C to +105°C

Application


1, VDSL Teleccom Equipment
2, Computer Peripherals
3, Communication Equipment
4, PCB Board
5, Cable to Panel
6, Cable to cable
7,Computer terminal
8,Telemetering
9,Test Equipment
10, Printer
