Product Details:
|
| Connector Name: | Eurocard Connector | Pitch: | 2.54mm Pitch |
|---|---|---|---|
| Connector Type: | Pcb Right Angle Connector | Gender: | Male Plug |
| Connector Line: | Din41612 Connector | No. Of Pin: | 2 Rows 32pin |
| High Light: | din female connector,din 41612 connectors |
||

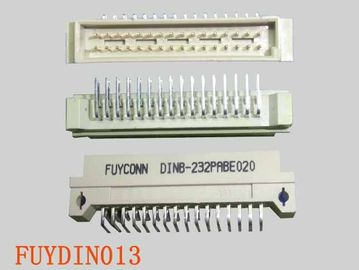

2 rows 32 Pin Eurocard Male Right Angel B Type DIN 41612 connector
Detail Description
Product Category: Eurocard Connector
Product Line: DIN 41612 Connector
Connector Version: B Type
Type: Right Angle PCB Connector
Number of Terminal: 2 rows * 16P = 32P
PCB Mount Style:R/A
Connector Style:Plug
Gender: Male
Insulator Color: Grey
Insulator Material: PBT
Contact pin Material: Brass
Terminals Type: Right Angle
Application: PCB Board
Technology Parameters
| Material: | |
| Insulator: | Glass-filled thermoplastic PBT |
| Contacts: | Brass/Phosphor Bronze. |
| Plating: | full gold or selected gold in mating area |
| 100u''min.tin-lead on termination area | |
| with entire contact under-plated 50u''min.Nicket. | |
| Electrical: | |
| Contact Resistance: | 30 milliohms Max at 1 AMP DC. |
| Insulator Resistance: | 1000 magohms at 500 VDC. |
| Dielectric Withstanding Voltage: | 1000VAC/rms 60 Hz For 1 miniute. |
| Current Rating: | 2 AMP. |
| Voltage Rating: | 250 VAC/rms 60 Hz. |
