24 Pin DDK Centronic PCB Right Angle Male Connector Certified UL

Good Quality Centronics Connector on sale
Good Quality 50 Pin Centronics Connector on sale
I'm Online Chat Now

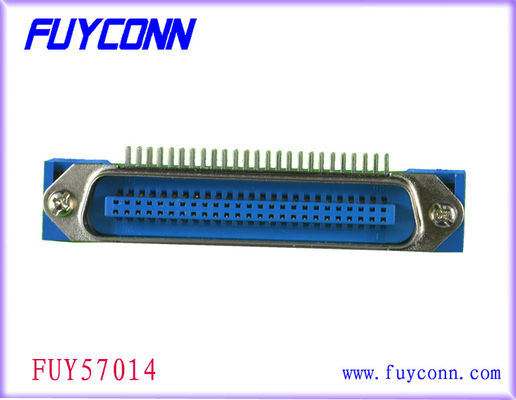

24 Pin DDK Centronic PCB Right Angle Male Connector Certified UL

24 Pin DDK Centronic PCB Right Angle Male Connector Certified UL supplier 24 Pin DDK Centronic PCB Right Angle Male Connector Certified UL supplier 24 Pin DDK Centronic PCB Right Angle Male Connector Certified UL supplier

Large Image :  24 Pin DDK Centronic PCB Right Angle Male Connector Certified UL

Product Details:

Place of Origin:China
Brand Name:FUYCONN
Certification:UL 94-V0, ROHS-certified ISO 9001:2008, ISO 14001:2004
Model Number:FUY57014-24P

Payment & Shipping Terms:

Minimum Order Quantity:10000 Pieces
Price:USD0.5 - USD3
Packaging Details:Vacuum Tray + Carton
Delivery Time:7-10 days
Payment Terms:T/T or Paypal
Supply Ability:1 million/ month
Detailed Product Description



FUY57014  DDK 24 Way Right Angle Centronic PCB Mount Connector Male Plug 2.16 mm Pitch



Detail Description:



Product Category: Centronic connector
Product Line: Champ Connector
Type: Right Angle PCB Connector
Number of Terminal: 24 pin
PCB Mount Style:Right Angle
Connector Style:Plug
Gender: Male
Insulator Color: Black or Blue
Insulator Material: PBT
Contact pin Material: Phosphor Bronze
Shield Plating: Nickel
Centerline = 2.16mm [0.085in]
Mounting Option: Round head screws, L bracket
Application: PCB Board

Advantage:


1,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample available in 2 days

Common Features

Designed for Cable-to-cable and cable-to-PC Board applications
Board Application
Available in Plug & Socket styles
Terminal Option with various types
Connector and hood sold as complete assembly
Available in low profile hood style
Metal shell provides grounding and shielding capability
Mates with industry compatible connector

Product Features

Product Type: Centronics PCB Mounting Connector
Product Line: Champ Connector
Gender:    Female
Connector Style:  Receptacle
Certerline : 2.16mm(0.85in)
Number of Position:  24 pin
Contact Plating:  Gold Plating (1U", 3U", 5U" ,10U", 15U", 30U")
Terminals Type Right Angle Terminals
Insulator Color: Black or Blue
Shielded:  Yes
Orientation:  R/A
Mating connector lock:  Screws Locket

Materials

Contact Material:  Phosphor Bronze
Insulator: PPT (UL 94-V0)
Shell Nickel Plated Steel

Electrical Character

Current Rating: 5Amp
Withstanding Voltage: AC 1000v r.m.s
Insulation Resistance: 1000 Megohms Minimum at DC 500V
Contact Resistance: 25M∩ Max Mated
Operation Temperature:  -55°C to +105°C

Application

1, VDSL Teleccom Equipment
2, Computer Peripherals
3, Communication Equipment
4, PCB Board
5, Cable to Panel
6, Cable to cable
7,Computer terminal
8,Telemetering
9,Test Equipment
10, Printer

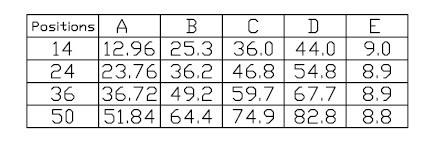

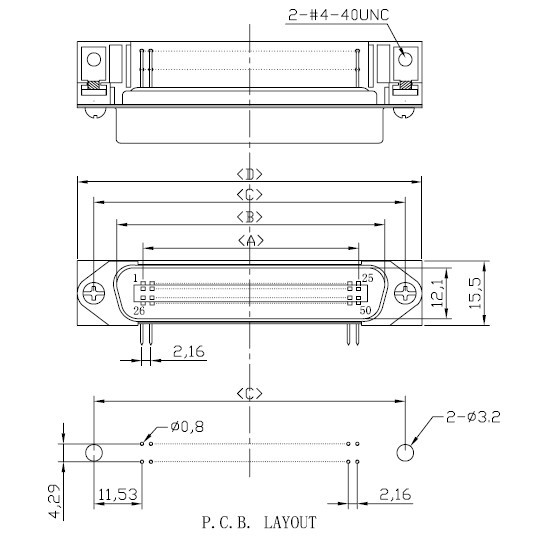

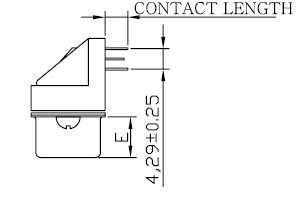

Technology Parameters

24 Pin DDK Centronic PCB Right Angle Male Connector Certified UL

24 Pin DDK Centronic PCB Right Angle Male Connector Certified UL

24 Pin DDK Centronic PCB Right Angle Male Connector Certified UL
