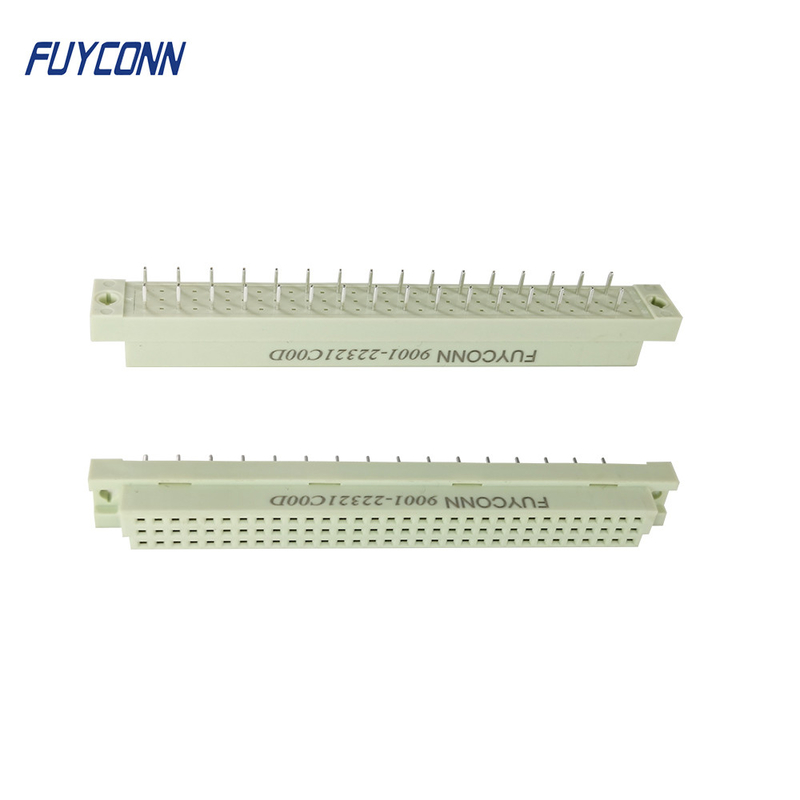

VMEbus System 3x10pin 20pin 30pin DIN 41612 Connector 3 Rows Solderless Female Eurocard

3 rows 3*10pin 20pin 30pin DIN41612 Connector, Press pin Female Euro Connector with solderless 5 10 15 pin European Connector

DIN 41612.pdf

DIN 41612 is a DIN standard for electrical connectors that are widely used in rack based electrical systems. Standardization of the connectors is a pre-requisite for open systems, where users expect components from different suppliers to operate together. The most widely known use of DIN 41612 connectors is in the VMEbus system.

The DIN 41612 has been widely accepted as a standard for a variety of interconnection applications in the telecommunications and data markets worldwide. DIN connectors with three rows (a, b, c) of contacts on 0.100" (2.54mm) square grid are available in wire-wrap or solder tail type terminations. Available pin configurations include 5pin, 10pin, 15pin, 20pin, 25pin, 30pin, 32pin, 48pin, 64pin and 96pin.

The headline performance of the connectors is a 2 amp per pin current carrying capacity, and 500 volt working voltage. Both these figures may need to be de-rated according to safety requirements or environmental conditions.

The female DIN 41612 connectors have press fit contacts rather than solder pin contacts, to avoid thermal shock to the backplane.
