Product Details:
|
| Product Name: | SCSI PCB Connector | Gender: | Female |
|---|---|---|---|
| Connector Type: | CN Type | Conatct Material: | Phosphorous Bronze |
| Insulation Material: | PBT | Insulation Color: | Black |
| Shell: | Metal Nickeled | No. Of Contacts: | 50pin |
| Contact Plating: | Gold Plating (1u",3u",5u",10u",15u") | Pitch: | 1.27mm |
| PCB Mount: | Straight | ||
| High Light: | 50P Servo Connector,180 Degree Servo Connector,MDR SCSI Connector |
||

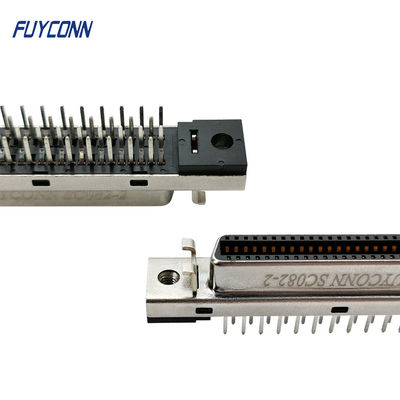

Mini D Ribbon 180 Straight PCB Mount SCSI Female 50P Servo MDR Connector, 1.27mm pitch Vertical PCB Female 50pin SCSI Connector
SCSI (Small Computer System Interface), is a kind of more special interface bus, equipped with a variety of types of peripherals to communicate. Advanced High Speed A versatile, high-speed, and low-cost method of interconnecting a varietyof computer peripherals and consume electronic devices.
The SCSI Connector are 14pin, 20pin, 26pin, 36pin, 50pin, 68pin and 100pin, and PCB / IDC Crimping type SCSI Connector versions. The internal 100 pin SCSI connector has 100 pins arranged in two rows one on top of the other. The top row has 50 pins and the lower row has 50 pins.
Type: SCSI Connector
Electrical characteristics
| Current Rating | 1AMP |
| Withstanding Voltage | 500v for one minute |
| Insualtion Resistance | 500MΩ min (at DC500V) |
| Contact Resistance | 35MΩ Max) |
| Operating temperature : | -55°C to +105°C |
Product features
| No. of pin | 14,20,26,36,50,68,100pin |
| shell : | Stell, Nickel Plated |
| Housing : | PBT |
| Contacts : | Phosphor bronze |
| Gold plating |
1U", 3U", 5U", 10U", 15U",30U" |
