Product Details:
|
| Product Category: | RJ Series | Product Line: | RJ45 |
|---|---|---|---|
| Type: | Right Angle PCB Connector | Number Of Terminal: | 1x4 4ports |
| Led Color: | Yes | Gender: | Female |
| Insulator Color: | Black | Insulator Material: | PBT |
| Contact Pin Material: | Phosphor Bronze | Shell: | Nickel Plated |
| No. Of Pin: | 4*8P 32Pin | ||
| High Light: | PCB RJ45 Modular Jack Connector,4*8P RJ45 Modular Jack Connector,Modular RJ45 PCB Jack |
||

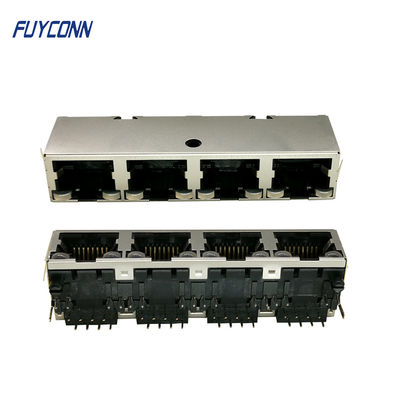

1x4 Ports 4*8P 32Pin Female Socket Plug RJ45 modular Jack connector, Right Angle PCB 4ports Shielded RJ45 Connector w/ LED light
Product features
| 1. Product Line: | RJ45 Connector |
| 2. Connector Gender: | Female |
| 3. Number of Position: | 4x8P 32Pin |
| 4. Number of Ports: | 1x4 4 ports |
| 5. Tab Direction | Up/Down |
| 6. Contact Plating: | 1U", 3U", 5U", 10U", 15U",30U" |
| 7. Insualtion material | PBT |
| 8. Led Light | yes |
Electrical Specifications
| Current Rating | 1.5 Amps |
| Voltage Rating |
125VAC |
| Insulation Resistance | 500 MΩmin |
| Contact Resistance | 30 mΩmax |
| Withstanding Voltage | AC 1000V RMS 50Hz or 60Hz 1 min |
Technology Parameters
