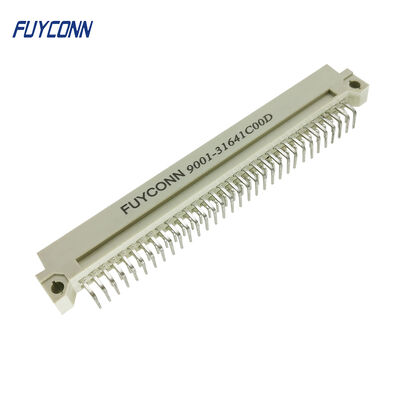

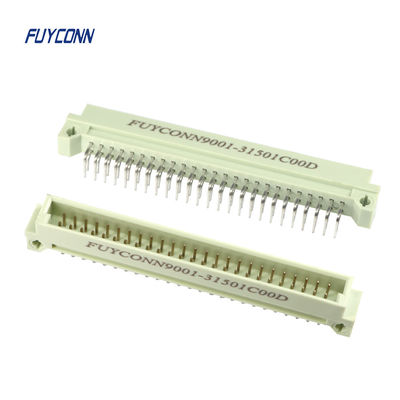

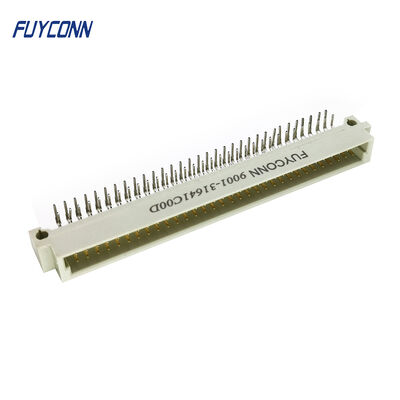

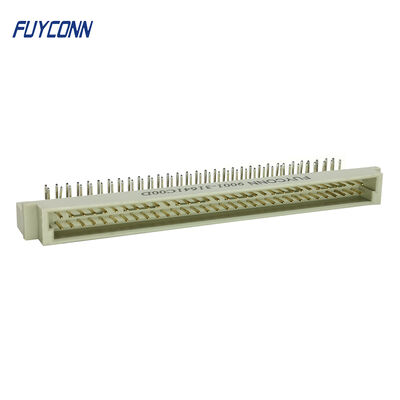

64P Right Angle PCB DIN 41612 Connector , 2 Rows Male Eurocard Connector

Large Image : 64P Right Angle PCB DIN 41612 Connector , 2 Rows Male Eurocard Connector

Product Details:

Place of Origin:	China
Brand Name:	FUYCONN
Model Number:	Straight Male DIN 41612 Connector

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	USD0.3-USD2
Packaging Details:	Tray + Carton
Delivery Time:	1-4 weeks
Payment Terms:	T/T,Paypal
Supply Ability:	100000000/month

Contact Now

64P Right Angle PCB DIN 41612 Connector , 2 Rows Male Eurocard Connector

Description

Product Category:	DIN41612 Connector	Product Line:	Eurocard Connector
Number Of Terminal:	10 20 30 32 48 64 96 Pin	Number Of Rows:	3 Rows
Terminals Type:	Straight	Connector Type:	PCB Type
Insulator Color & Material:	Grey & PBT	Contact Pin Material:	Phosphor Bronze
Contact Plating:	Gold Plating(1u",3u",5u",10u",15u")	Pitch:	2.54mm Or 5.08mm
Highlight:	10U DIN 41612 Connector , Grey PBT DIN 41612 Connector , 3 Rows Male Eurocard Connector

Right Angle PCB DIN 41612 Connector, 3 Rows Male Eurocard Connector

3*32pin 3*10pin 3*16pin 3 rows PCB Straight Male DIN41612 Connector, 5 10 15 16 32 48 64 96 pin DIN 41612 Euro Connector

DIN 41612.pdf

DIN 41612 is a DIN standard for electrical connectors that are widely used in rack based electrical systems. Standardization of the connectors is a prerequisite for open systems, where users expect components from different suppliers to operate together. The most widely known use of DIN 41612 connectors is in the VMEbus system.

The DIN 41612 has been widely accepted as a standard for a variety of interconnection applications in the telecommunications and data markets worldwide. The most widely known use of DIN 41612 connectors is in the VME bus system. DIN connectors with three rows (a, b, c) of contacts on 0.100" (2.54mm) square grid are available in wire-wrap or solder tail type terminations. 5pin, 10pin, 15pin, 20pin, 30pin, 32pin, 48pin, 64pin and 96pin are available.

Product Features

1. Product Line:	DIN41612 Connector
2. Product Name:	Eurocard connector
3. Connector Type:	PCB DIN 41612 Connector
4. Connector Gender:	Male
5. Number of Position:	5/10/15/20/30/32/48/64/96 pin
6. Number of rows:	3 rows
7. Contact Material:	Brass
8. Contact Plating:	1U", 3U", 5U", 10U", 15U", 30U"
9. Insulation Material:	PBT
10. Color:	Gray
11. Terminal Type:	Straight
12. Pitch:	2.54mm or 5.08mm

Electrical Specifications

1. Current Rating:	5Amp
2. Voltage rating:	DC 1000v per minute
3. Insulator Resistance:	1000Mn MIN. (at 500V DC)
4. Operation Temperature:	-55°C to +105°C

DIN 41612, Socket, 96 PIN, Female, Angled, PCB Mount, Through Hole, Solder Type, A+B+C Three Rows, Golden, 2.54mm
Conforming to DIN 41612 and IEC 603-2 specifications
Available up to 3 rows and 96 positions with Solder, Press-fit and pin-in Paste terminations
Commonly used to carry audio and video signals
High Quality with 30 days 100% Money back
From the OEM Original Factory, same quality with much better price
