Product Details:
|
| Connector Name: | Eurocard Connector | Connector Line: | Din41612 Connector |
|---|---|---|---|
| Gender: | Male Plug | No. Of Pin: | 30pin 48pin 96pin |
| Insulation Color: | Grey | Connector Type: | Right Angle Pcb Connector |
| No. Of Rows: | 3 Rows | PCB Mounting: | Board Lock |
| High Light: | 30pin DIN 41612 Connector,90 Deg DIN 41612 Connector,PCB DIN 41612 Eurocard Connector |
||

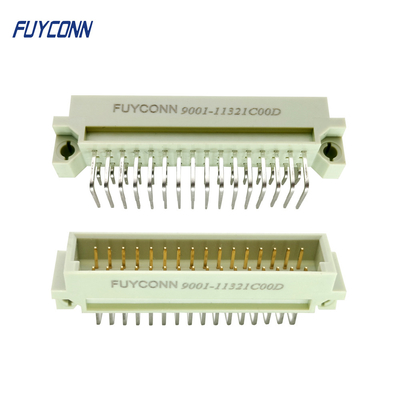

96Pin 2.54mm pitch R/A PCB 3 rows DIN41612 Connector, Right Angle PCB 3*32 96 pin DIN 41612 Euro Male Connector with Board Lock
3rows DIN41612 Connector Male 90 Degree R/A PCB Euro 41612 Connector
DIN 41612 is a DIN standard for electrical connectors that are widely used in rack based electrical systems. Standar disation of the connectors is a pre-requisite for open systems, where users expect components from different suppliers to operate together. The most widely known use of DIN 41612 connectors is in the VMEbus system.
The DIN 41612 has been widely accepted as a standard for a variety of interconnection applications in the telecommunications and data markets worldwide. The most widely known use of DIN 41612 connectors is in the VME bus system.DIN connectors with three rows(a, b, c) of contacts on 0.100"(2.54mm) square grid are available in wire-wrap or solder tail type terminations. 5pin 10pin, 15pin 20pin,30pin, 32pin 48pin 64pin and 96pin are available.
Detail Description:
| 1. Product Line: | DIN41612 Connector |
| 2. Product Name: | Eurocard connector |
| 3. Connector Type | PCB DIN 41612 Connector |
| 4. Connector Gender: | Male |
| 5. Number of Position: | 5/10/15/20/30/32/48/64/96 pin |
| 6. Number of rows: | 3 rows |
| 7. Contact Material: | Brass |
| 8. Contact Plating: | 1U", 3U", 5U", 10U", 15U",30U" |
| 9. Insulation Material: | PBT |
| 10. Color | Gray |
| 11. Terminal Type | Right Angle |
| 12. Pitch | 2.54mm or 5.08mm |
Electrical Specifications
| Current Rating: | 2Amp |
| Voltage rating: | AC 1000v for minute |
| Insulator Resistance: | 1000 MΩ min.at DC500V |
| Contact Resistance: | 30mΩ max. at DC 100MA |
| 4. Operation Temperature: | -55°C to +105°C |
Technology Parameters
APPLICATIONS • Data centers • Storage • Servers • Base stations • Telecommunications equipment • Backplane and motherboard assemblies • Switching systems • Modular rack systems STANDARD BUSSES • CIMBUS Type B, 64 Position • FUTUREBUS Type C, 96 Position • MULTIBUS (II) Type C, 96 Position • NUBUS Type C, 96 Position • STE Bus Type B, 64 Position • VME 64X Type C, 96 Position • VMEbus Type C, 96 Position • VXI Bus Type C, 96 Position PRODUCT SPECIFICATIONS • DIN 41612 Two-Part Connectors for Printed Circuit Boards • IEC 60603-2 Connectors for Frequencies below 3 MHz for Printed Circuit Boards APPLICATION SPECIFICATIONS • 114-9014 Eurocard Connector Types B, C, M and R (Board-to-Board Application) • 114-19004 Eurocard Connector, Type F Receptacle • 114-12026 Type M Coax Contacts • 114-10014 Size VIII Power Contacts
