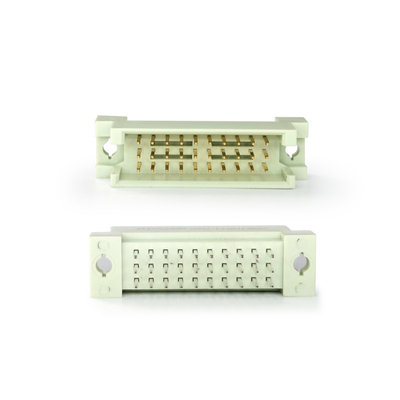

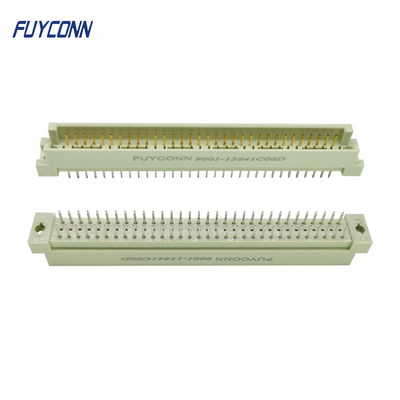

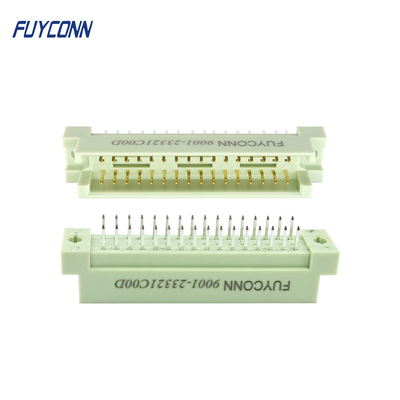

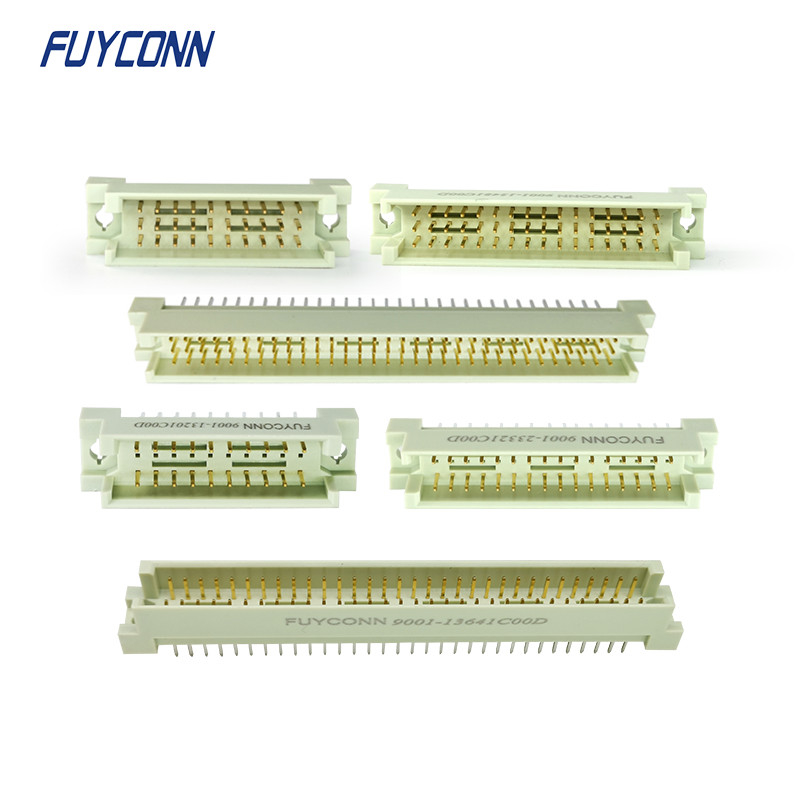

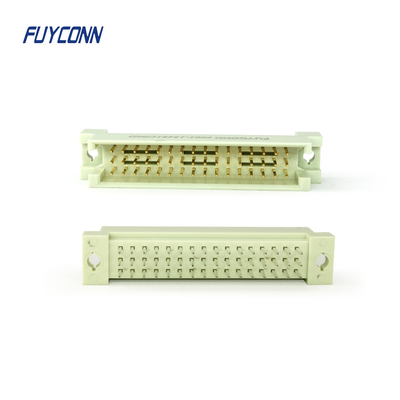

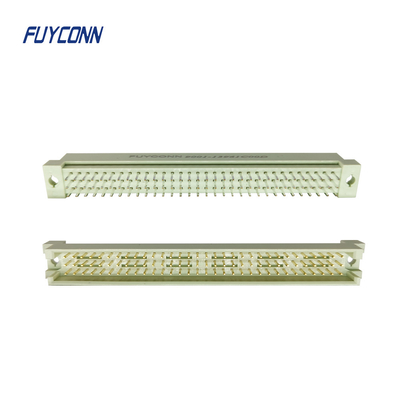

30pin 48pin 96pin 3 Rows DIN 41612 Connector Male Vertical PCB Eurocard

Large Image : 30pin 48pin 96pin 3 Rows DIN 41612 Connector Male Vertical PCB Eurocard

Product Details:

Place of Origin:	China
Brand Name:	FUYCONN
Certification:	UL 94-V0, ROHS-certified ISO 9001:2008, ISO 14001:2004
Model Number:	3rows Vertical Male

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	Vacuum Tray + Carton
Delivery Time:	7-10 days
Payment Terms:	T/T or Paypal
Supply Ability:	1 million/ month

Contact Now

30pin 48pin 96pin 3 Rows DIN 41612 Connector Male Vertical PCB Eurocard

Description

Connector Name:	European Connectore	Gender:	Male Plug
No. Of Pin:	30pin 48pin 96pin	Connector Line:	Din41612 Connector
Insulation Color:	Grey	Connector Type:	Pcb Vertical Connector
No. Of Rows:	3 Rows
Highlight:	Male Plug DIN 41612 Connector , ISO 14001 DIN 41612 Connector , Vertical PCB Eurocard DIN 41612 Connector

30pin 48pin 96pin 3 Rows DIN 41612 Connector Male Vertical PCB Eurocard

Product Overview

3 rows 3*16 32pin 48pin DIN41612 Connector, 2.54mm/5.08mm pitch 48Pin Male Eurocard Straight Terminals connector for PCB Board

Technical Documentation

DIN 41612 Specification PDF

Product Description

DIN 41612 is a DIN standard for electrical connectors widely used in rack-based electrical systems. Standardization of these connectors is essential for open systems where components from different suppliers need to operate together. The most widely known application of DIN 41612 connectors is in the VMEbus system.

The DIN 41612 standard has been widely accepted for various interconnection applications in telecommunications and data markets worldwide. These 48-pin DIN connectors feature three rows (a, b, c) of contacts on a 0.100" (2.54mm) square grid and are available in wire-wrap or solder tail type terminations.

Product Specifications

Parameter	Specification
Product Line	DIN41612 Connector
Product Name	Eurocard connector
Connector Type	PCB DIN 41612 Connector
Connector Gender	Male
Number of Positions	30pin, 48pin, 96pin
Number of Rows	3 rows
Contact Material	Brass
Contact Plating	1U", 3U", 5U", 10U", 15U", 30U"
Insulation Material	PBT
Color	Gray
Terminal Type	Vertical / Straight PCB
Pitch	2.54mm or 5.08mm

Electrical Specifications

Parameter	Specification
Current Rating	2Amp
Voltage Rating	AC 1000V for minute
Insulator Resistance	1000 MΩ min. at DC500V
Contact Resistance	30mΩ max. at DC 100MA
Operation Temperature	-55°C to +105°C

Technology Parameters
