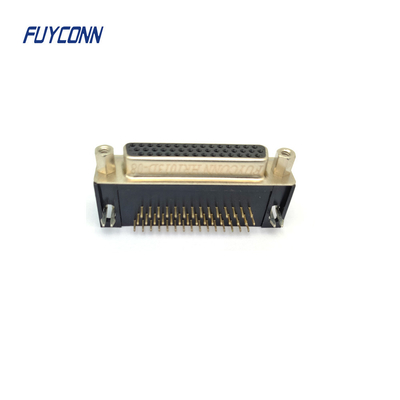

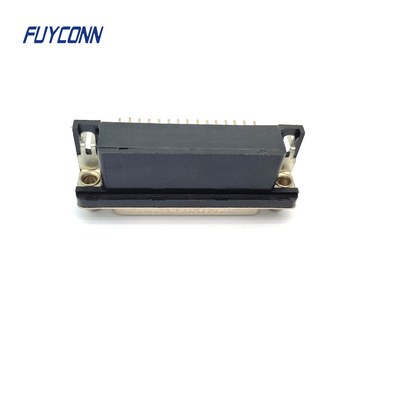

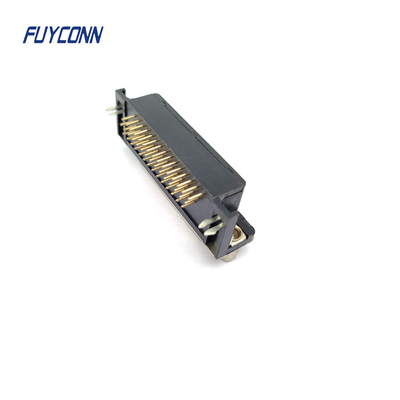

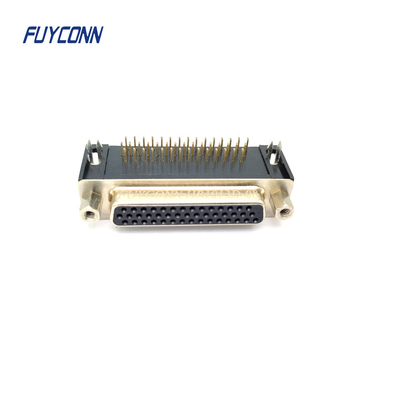

High Density Right Angle PCB D-SUB Connector 15 / 26 / 44 / 62 Pin

High Density Right Angle PCB D-SUB Connector 15 / 26 / 44 / 62 Pin
High Density Right Angle PCB D-SUB Connector 15 / 26 / 44 / 62 Pin
High Density Right Angle PCB D-SUB Connector 15 / 26 / 44 / 62 Pin High Density Right Angle PCB D-SUB Connector 15 / 26 / 44 / 62 Pin High Density Right Angle PCB D-SUB Connector 15 / 26 / 44 / 62 Pin High Density Right Angle PCB D-SUB Connector 15 / 26 / 44 / 62 Pin High Density Right Angle PCB D-SUB Connector 15 / 26 / 44 / 62 Pin

Large Image :  High Density Right Angle PCB D-SUB Connector 15 / 26 / 44 / 62 Pin

Product Details:
Place of Origin: China
Brand Name: FUYCONN
Certification: UL 94-V0, ROHS-certified, ISO 9001:2008, ISO 14001:2004
Model Number: FUYHR1031D
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiable
Packaging Details: Vacuum Tray + Carton
Delivery Time: 7-10 days
Payment Terms: T/T or Paypal
Supply Ability: 1 million/ month
Contact Now

High Density Right Angle PCB D-SUB Connector 15 / 26 / 44 / 62 Pin

Description
Product Name: D-sub Connectors Product Line: High Desity
Type: Right Angle PCB Connector Number Of Terminal: 15 26 44 62 Pin
Distance From Terminal To Shell: 8.89mm Gender: Female
Mounting: Front Rivet Nuts Color: Black
Material: PBT
High Light:

Front Rivet Nuts D-SUB Connector

,

Right Angle PCB D-SUB Connector

,

62 Pin D-sub Connectors

High Density R/A PCB 15/26/44/62 Pin D-SUB Connector, 15P 26P 44P 62P Female Right Angle PCB High Density D-SUB Connector

D-type connectors most commonly consist or two and sometimes more parallel rows of connections. The connectors have a D-format metal shell. This not only provides mechanical strength to the connector, but it also provides some limited screening as well - the metal shells of the plug and socket make contact to provide screening. Also the panel mounting connectors are typically secured to the panel using nuts that have an additional thread that allows the mating connector to be secured to it to prevent it working loose. Additionally the free connectors can have backshells that can provide screening and can be connected to the cable screen, or if plastic, they can provide protection. Strain relief on the cable is also provided.
The pins in the more common connector types with two rows of pins (e.g. 9, 15, 25 and 37 way) are spaced approximately 0.108 inch (2.74 mm) apart with the rows spaced 0.112 inch (2.84 mm) apart. High pin counts and higher pin densities can be achieved using more rows of pins.
Product Feature

1. Product Name:
D-SUB Connector
2. Product Line:
PCB High Density Connector
3. No. of pin
15pin 26pin 44pin 62pin
4. Material:
PBT
5.Contact Type
Right Angle
6. Gender
Female


Data Sheet

High Density Right Angle PCB D-SUB Connector 15 / 26 / 44 / 62 Pin 0
