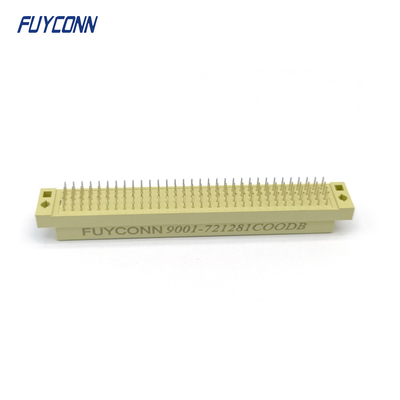

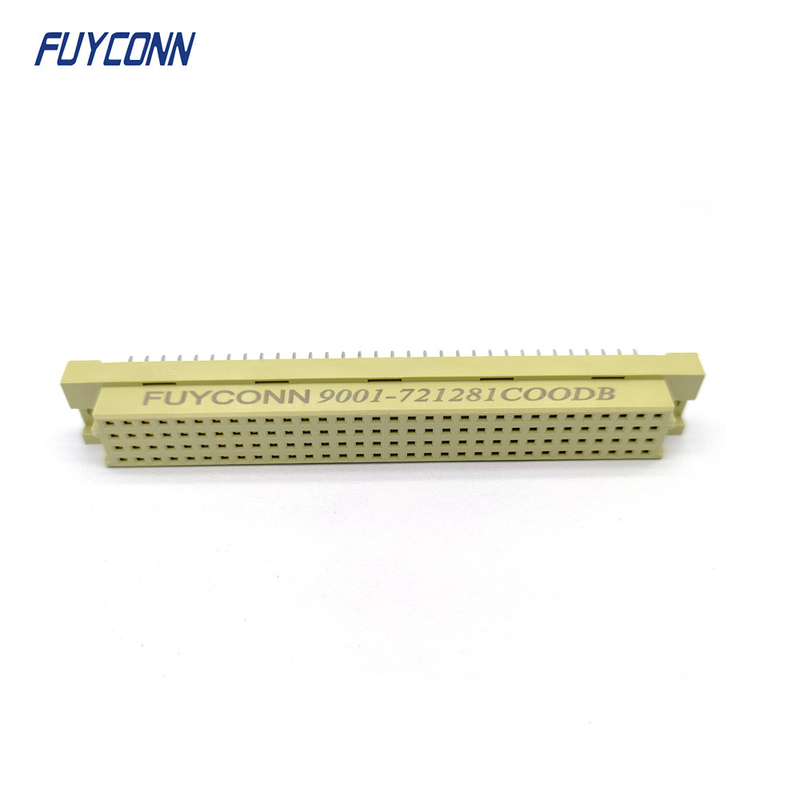

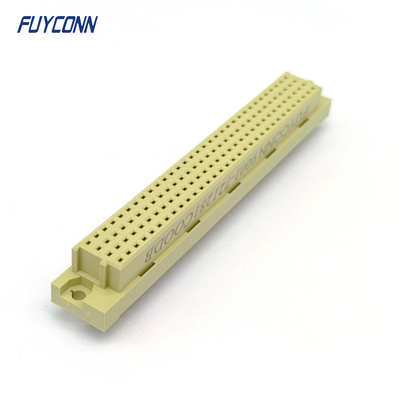

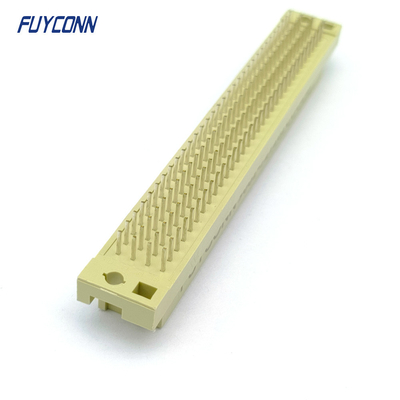

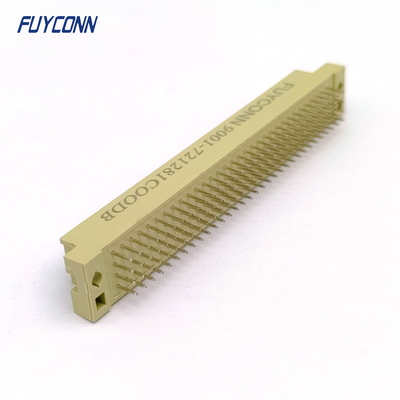

128Pin DIN41612 Connector PCB Vertical 4rows Female 4*32pin 9001 Series

PCB Straight 4 rows 128pin Eurocard 41612 Connector, 2.54mm pitch Vertical PCB 4rows Female 4*32P 128P DIN41612 Connector

DIN 41612 is a DIN standard for electrical connectors that are widely used in rack based electrical systems. Standardization of the connectors is a prerequisite for open systems, where users expect components from different suppliers to operate together. The most widely known use of DIN 41612 connectors is in the VME bus system.

The DIN 41612 has been widely accepted as a standard for a variety of interconnection applications in the telecommunications and data markets worldwide. DIN connectors with three rows (a, b, c) of contacts on 0.100" (2.54mm) square grid are available in wire-wrap or solder tail type terminations. Available pin configurations include 5pin, 10pin, 15pin, 20pin, 30pin, 32pin, 48pin, 64pin, 96pin, 128pin and 160pin.

Eurocard line is available in board-to-board, wire-to-board, ribbon cable-to-board, and high-current connectors. Our Eurocard connectors incorporate internationally accepted design advantages of DIN 41612 and IEC 60603-2 two-piece connectors in a quality design that provides high Signal Integrity (SI) and electrical performance.

With a broad portfolio, it is easy to find the right connector type and style to fit your application. Common Bus Systems include STE Bus, CIMBUS, FUTUREBUS, VMEBus, MULTIBUS (II), NUBUS, VXi Bus, and VME 64X.
