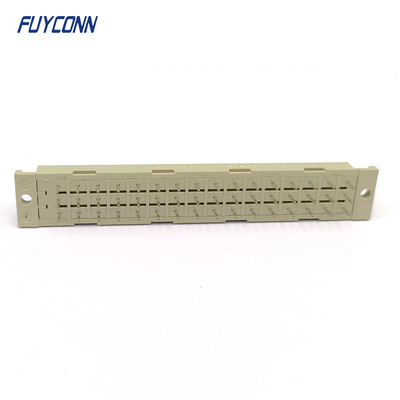

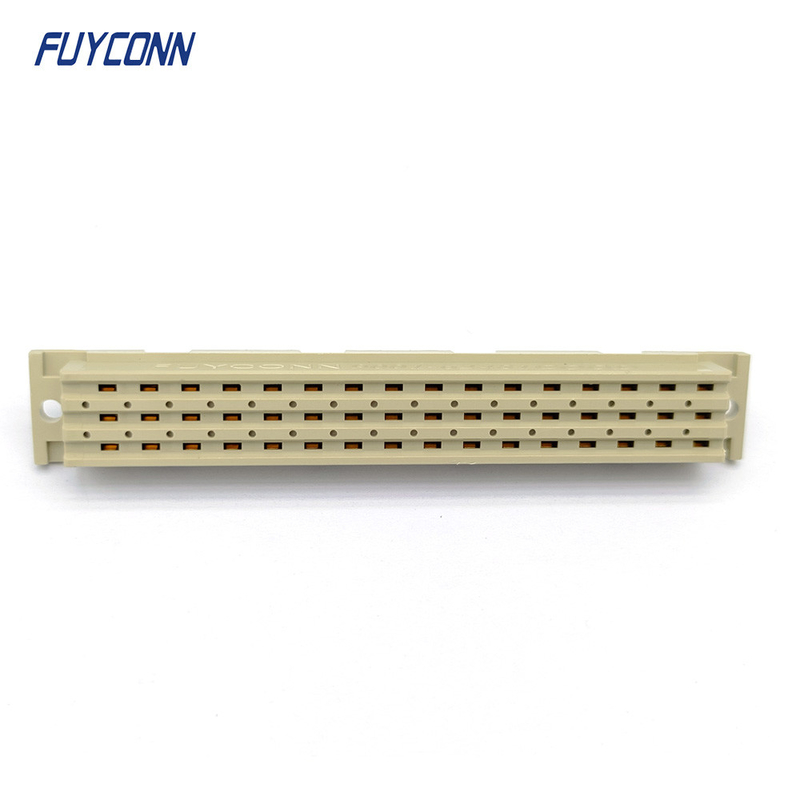

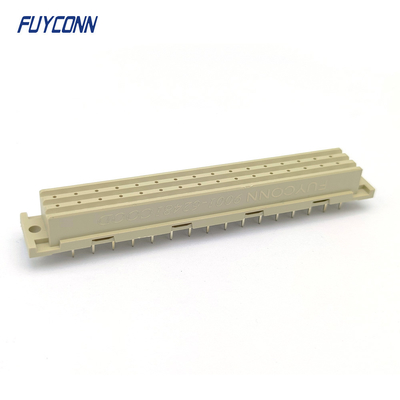

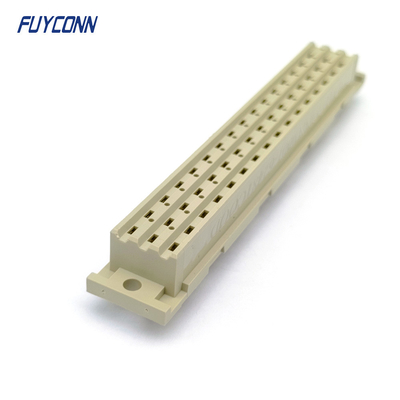

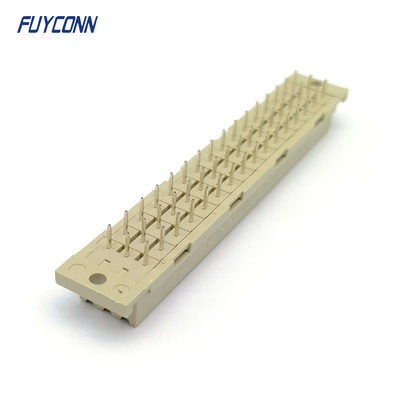

48Pin Power DIN41612 Connector PCB Straight Female 3*16pin 5.08mm Pitch

PCB Straight 3 rows 48pin Eurocard 41612 Connector, Vertical PCB 3rows Female 3*16P 48P 5.08mm Power Type DIN41612 Connector

DIN 41612 is a DIN standard for electrical connectors widely used in rack-based electrical systems. Standardization of these connectors is essential for open systems where components from different suppliers need to operate together. The most widely known application of DIN 41612 connectors is in the VME bus system.

The DIN 41612 standard has been widely accepted for various interconnection applications in telecommunications and data markets worldwide. DIN connectors with three rows (a, b, c) of contacts on 0.100" (2.54mm) square grid are available in wire-wrap or solder tail type terminations. Available pin configurations include 5pin, 10pin, 15pin, 20pin, 30pin, 32pin, 48pin, 64pin, and 96pin.

Eurocard line connectors are available in board-to-board, wire-to-board, ribbon cable-to-board, and high-current configurations. Our Eurocard connectors incorporate internationally accepted design advantages of DIN 41612 and IEC 60603-2 two-piece connectors in a quality design that provides high Signal Integrity (SI) and electrical performance. With a broad portfolio, it's easy to find the right connector type and style for your application. Common Bus Systems include STE Bus, CIMBUS, FUTUREBUS, VMEBus, MULTIBUS (II), NUBUS, VXi Bus, and VME 64X.
