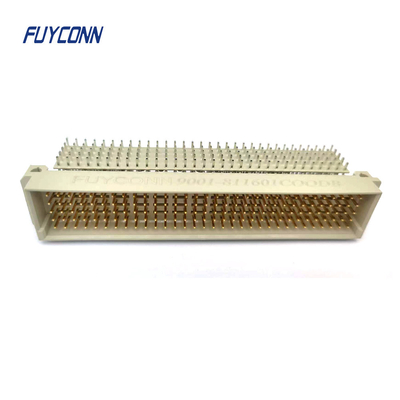

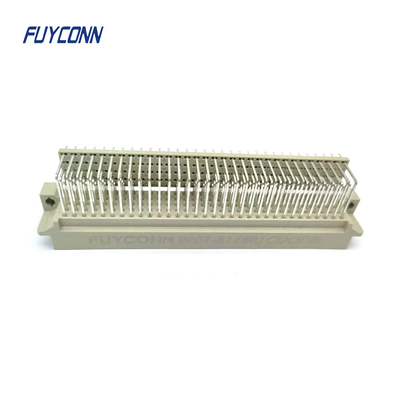

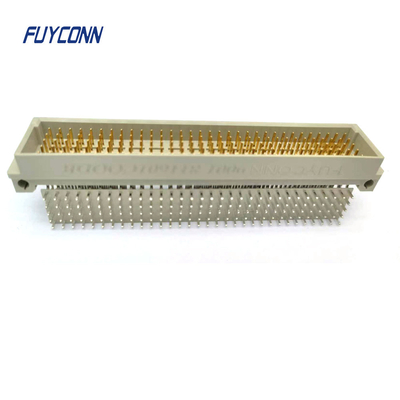

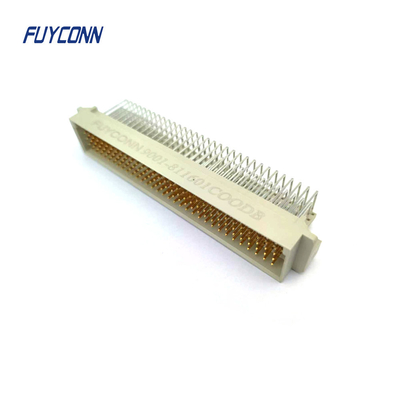

Male 9001 Series Connector PCB Angled 5 Rows 5*32P 160P DIN 41612 Connector 2.54mm

Male 9001 Series Connector PCB Angled 5 rows 5*32P 160P DIN 41612 Connector 2.54mm

R/A 90 Degree PCB 5 rows 160pin DIN41612 Connector, 2.54mm pitch Right Angle PCB Male 5Rows 5*32P 160P DIN 41612 Connector

Catalog: DIN41612 CONNECTOR.pdf

DIN 41612 is a DIN standard for electrical connectors widely used in rack-based electrical systems. Standardization of these connectors is essential for open systems where components from different suppliers need to operate together. The most widely known application of DIN 41612 connectors is in the VME bus system.

The DIN 41612 standard has been widely accepted for various interconnection applications in telecommunications and data markets worldwide. These connectors are available with three rows (a, b, c) of contacts on a 0.100" (2.54mm) square grid in wire-wrap or solder tail type terminations. Available pin configurations include 5pin, 10pin, 15pin, 20pin, 30pin, 32pin, 48pin, 64pin, 96pin, 128pin, and 160pin.

The Eurocard line is available in board-to-board, wire-to-board, ribbon cable-to-board, and high-current connectors. Our Eurocard connectors incorporate internationally accepted design advantages of DIN 41612 and IEC 60603-2 two-piece connectors in a quality design that provides high Signal Integrity (SI) and electrical performance. With a broad portfolio, it's easy to find the right connector type and style for your application. Common Bus Systems include STE Bus, CIMBUS, FUTUREBUS, VMEBus, MULTIBUS (II), NUBUS, VXi Bus, and VME 64X.
