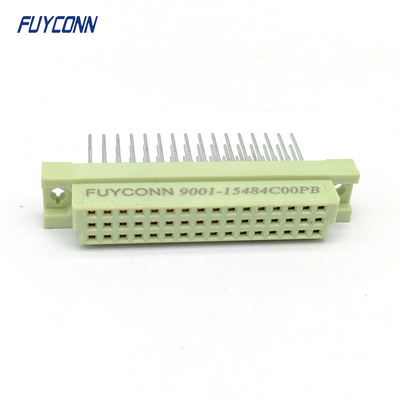

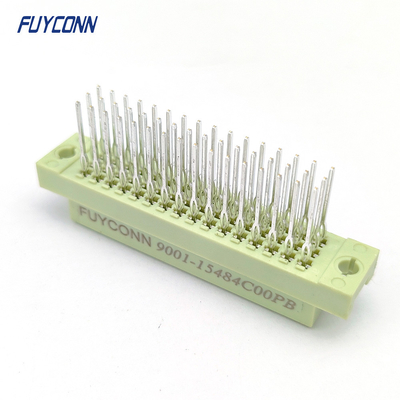

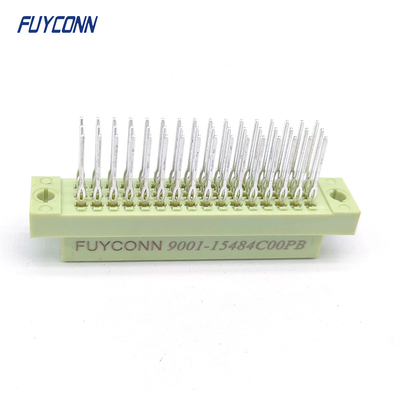

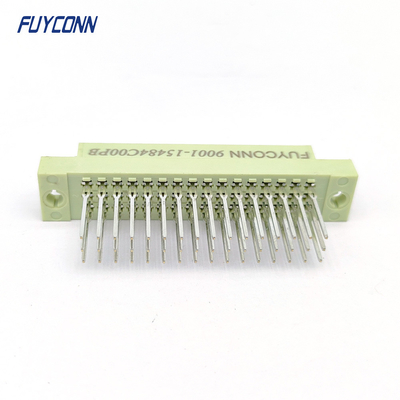

3 Rows Female DIN41612 Connector 48 Pin 13mm Press Pin DIN 41612 Connector

3 Rows Female DIN41612 Connector 48 Pin 13mm Press Pin DIN 41612 Connector
3 Rows Female DIN41612 Connector 48 Pin 13mm Press Pin DIN 41612 Connector 3 Rows Female DIN41612 Connector 48 Pin 13mm Press Pin DIN 41612 Connector 3 Rows Female DIN41612 Connector 48 Pin 13mm Press Pin DIN 41612 Connector 3 Rows Female DIN41612 Connector 48 Pin 13mm Press Pin DIN 41612 Connector 3 Rows Female DIN41612 Connector 48 Pin 13mm Press Pin DIN 41612 Connector

Large Image :  3 Rows Female DIN41612 Connector 48 Pin 13mm Press Pin DIN 41612 Connector

Product Details:
Place of Origin: China
Brand Name: FUYCONN
Model Number: FUYDIN081-48PB
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: USD0.5-USD2
Packaging Details: Tray + Carton
Delivery Time: 1-4 weeks
Payment Terms: T/T,Paypal
Supply Ability: 100000000/month

3 Rows Female DIN41612 Connector 48 Pin 13mm Press Pin DIN 41612 Connector

Description
Product Category: DIN41612 Connector Pin Length: 13mm
Number Of Terminal: 3*16P 48pin Number Of Rows: 3 Rows
Terminals Type: Press Pin / Solderless Connector Type: PCB Type
Insulator Color & Material: Grey & PBT Contact Pin Material: Phosphor Bronze
Contact Plating: Gold Plating(1u",3u",5u",10u",15u") Pitch: 2.54mm / 5.08mm
Gender: Female
Highlight:

3 Rows DIN 41612 Connector

,

DIN 41612 Connector 48 Pin

3 Rows Female DIN41612 Connector 48 Pin 13mm Press Pin DIN 41612 Connector
Product Overview

3 rows 3×16pin 48pin solderless DIN 41612 Connector, PCB Straight Female 13mm Press Pin 48P DIN41612 Connector

Download DIN 41612 Specification PDF

DIN 41612 is a DIN standard for electrical connectors that are widely used in rack based electrical systems. Standardization of the connectors is a prerequisite for open systems, where users expect components from different suppliers to operate together. The most widely known use of DIN 41612 connectors is in the VMEbus system.

The DIN 41612 has been widely accepted as a standard for a variety of interconnection applications in the telecommunications and data markets worldwide. DIN connectors with three rows (a, b, c) of contacts on 0.100" (2.54mm) square grid are available in wire-wrap or solder tail type terminations. Various pin configurations including 5pin, 10pin, 15pin, 20pin, 30pin, 32pin, 48pin, 64pin and 96pin are available.

Product Features
Product Line: DIN41612 Connector
Terminal Length: 4mm/13mm/15mm/17mm/25mm
Connector Type: PCB DIN 41612 Connector
Connector Gender: Female
Number of Position: 3×16P 48pin
Number of rows: 3 rows
Contact Material: Brass
Contact Plating: 1U", 3U", 5U", 10U", 15U", 30U"
Insulation Material: PBT
Color: Gray
Terminal Type: Press Pin / Solderless
Pitch: 2.54mm / 5.08mm
Electrical Specifications
Current Rating: 5Amp
Voltage rating: DC 1000v per minute
Insulator Resistance: 1000Mn MIN. (at 500V DC)
Operation Temperature: -55°C to +105°C
3 Rows Female DIN41612 Connector 48 Pin 13mm Press Pin
Applications & Standards

Eurocard line is available in board-to-board, wire-to-board, ribbon cable-to-board, and high-current connectors. Our Eurocard connectors incorporate internationally accepted design advantages of DIN 41612 and IEC 60603-2 two-piece connectors in a quality design that provides high Signal Integrity (SI) and electrical performance.

With a broad portfolio, it is easy to find the right connector type and style to fit your application. Common Bus Systems include STE Bus, CIMBUS, FUTUREBUS, VMEBus, MULTIBUS (II), NUBUS, VXi Bus, and VME 64X.

DIN 41612 was a DIN standard for electrical connectors that are widely used in rack based electrical systems. Standardization of the connectors is a prerequisite for open systems, where users expect components from different suppliers to operate together. The most widely known use of DIN 41612 connectors is in the VMEbus and NuBus systems. The standard has been withdrawn in favor of international standards IEC 60603-2 and EN 60603-2.
