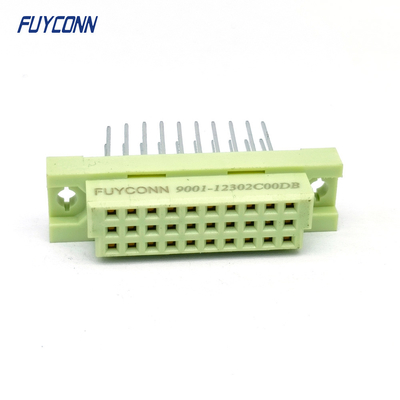

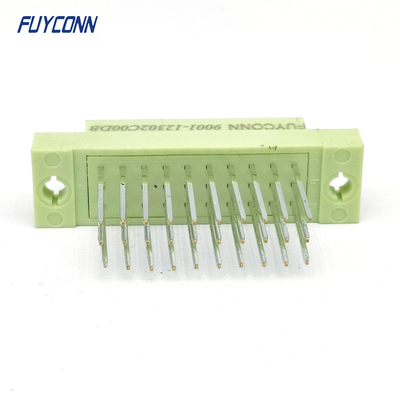

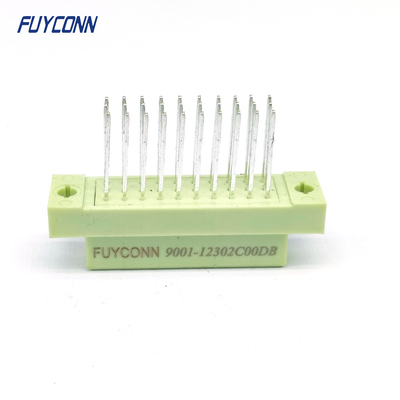

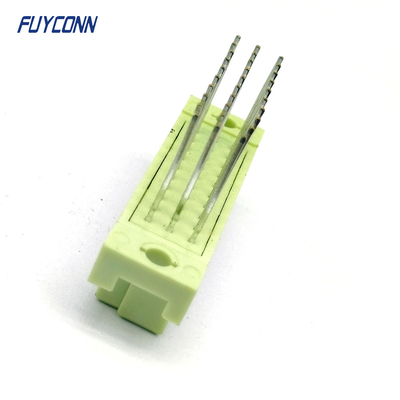

13mm 30Pin DIN 41612 Connector 3Rows 330 Straight PCB Female DIN41612 Connector

3 rows 30P 13mm Vertical Terminals 330 Female DIN 41612 Connector, Straight PCB 3*10P 30pin 15mm Eurocard Connector

Product Catalog: DIN41612 CONNECTOR.pdf

DIN 41612 is a DIN standard for electrical connectors that are widely used in rack based electrical systems. Standardization of the connectors is a pre-requisite for open systems, where users expect components from different suppliers to operate together. The most widely known use of DIN 41612 connectors is in the VMEbus system.

The DIN 41612 has been widely accepted as a standard for a variety of interconnection applications in the telecommunications and data markets worldwide. DIN connectors with three rows (a, b, c) of contacts on 0.100" (2.54mm) square grid are available in wire-wrap or solder tail type terminations. Various pin configurations including 5pin, 10pin, 15pin, 20pin, 30pin, 32pin, 48pin, 64pin and 96pin are available.

Eurocard line is available in board-to-board, wire-to-board, ribbon cable-to-board, and high-current connectors. Our Eurocard connectors incorporate internationally accepted design advantages of DIN 41612 and IEC 60603-2 two-piece connectors in a quality design that provides high Signal Integrity (SI) and electrical performance. With a broad portfolio, it is easy to find the right connector type and style to fit your application. Common Bus Systems include STE Bus, CIMBUS, FUTUREBUS, VMEBus, MULTIBUS (II), NUBUS, VXi Bus, and VME 64X.

DIN 41612 was a DIN standard for electrical connectors that are widely used in rack based electrical systems. Standardization of the connectors is a pre-requisite for open systems, where users expect components from different suppliers to operate together. The most widely known use of DIN 41612 connectors is in the VMEbus and NuBus systems. The standard has been withdrawn in favor of international standards IEC 60603-2 and EN 60603-2.
