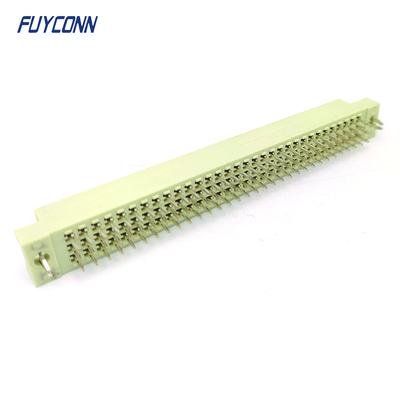

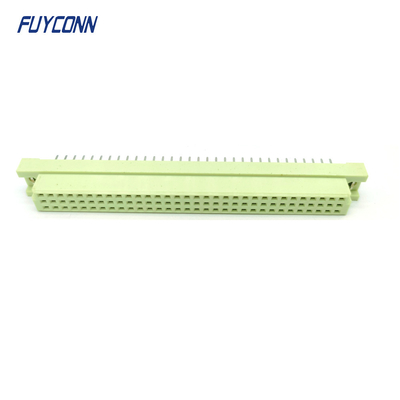

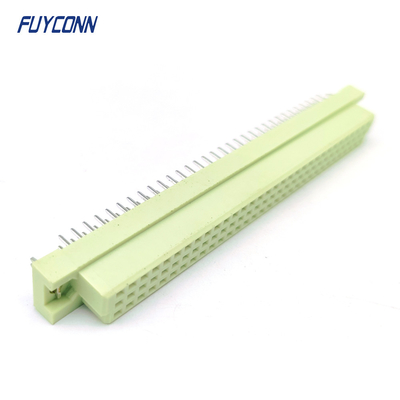

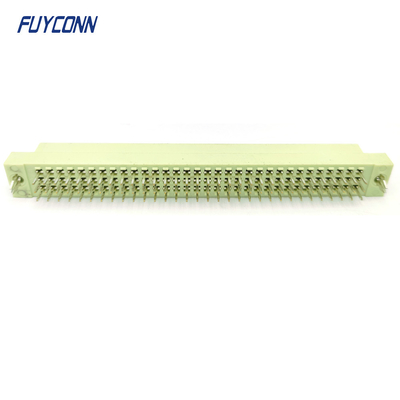

3 rows 96 Pin Simple Type DIN41612 Connector Female PCB Straight

3 rows 96 Pin Simple Type DIN41612 Connector, PCB Straight 3*32P 96pin Female Eurocard 41612 Connector w/ Harpoon

DIN 41612.pdf

DIN 41612 is a DIN standard for electrical connectors widely used in rack-based electrical systems. Standardization of these connectors is essential for open systems, where users expect components from different suppliers to operate together. The most widely known use of DIN 41612 connectors is in the VMEbus system.

The DIN 41612 standard has been widely accepted for various interconnection applications in telecommunications and data markets worldwide. DIN connectors with three rows (a, b, c) of contacts on 0.100" (2.54mm) square grid are available in wire-wrap or solder tail type terminations. Available pin configurations include 5pin, 10pin, 15pin, 20pin, 30pin, 32pin, 48pin, 64pin, and 96pin.

Our Eurocard connector line is available in board-to-board, wire-to-board, ribbon cable-to-board, and high-current connectors. These connectors incorporate internationally accepted design advantages of DIN 41612 and IEC 60603-2 two-piece connectors in a quality design that provides high Signal Integrity (SI) and electrical performance.

With a broad portfolio, it's easy to find the right connector type and style to fit your application. Common Bus Systems include:

• STE Bus
• CIMBUS
• FUTUREBUS
• VMEBus
• MULTIBUS (II)
• NUBUS
• VXi Bus
• VME 64X

DIN 41612 was a DIN standard for electrical connectors widely used in rack-based electrical systems. Standardization of these connectors is essential for open systems, where users expect components from different suppliers to operate together. The most widely known use of DIN 41612 connectors is in the VMEbus and NuBus systems. The standard has been withdrawn in favor of international standards IEC 60603-2 and EN 60603-2.
