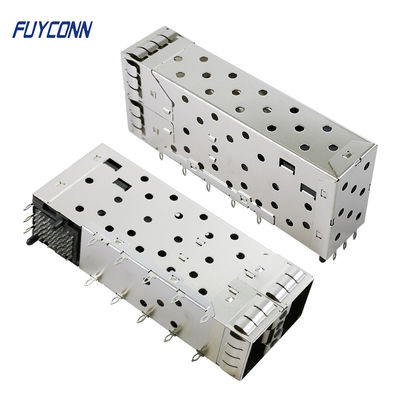

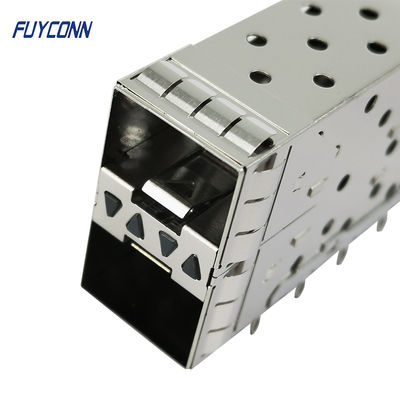

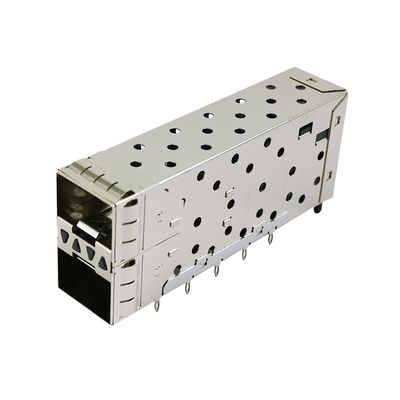

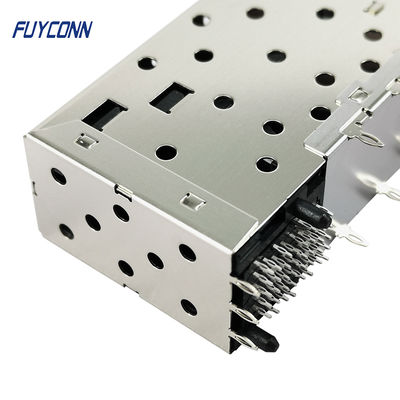

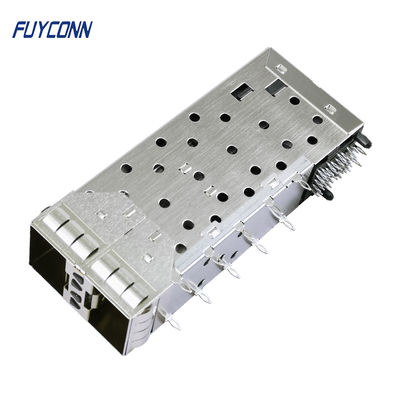

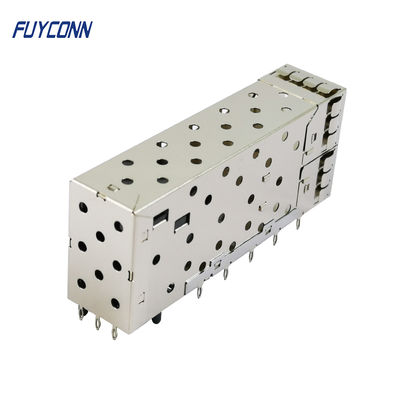

2x1 2 Port SFP+ Connector 40 Pin Female PCB Mount with Light

Large Image : 2x1 2 Port SFP+ Connector 40 Pin Female PCB Mount with Light

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	FUYCONN
Model Number:	FUYSFP017-28

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	$5

Contact Now

2x1 2 Port SFP+ Connector 40 Pin Female PCB Mount with Light

Description

Number Of Ports:	2*1 Dual Ports	Number Of Terminals:	40 Pin
Connector Gender:	Female	Color:	Nick Silver
Insulator Material:	PBT	Contact Pin Material:	Phosphor Bronze
Feet Type:	Solderless Pin	Lightpipe:	Yes
Current Rating:	1AMP	Withstanding Voltage:	500v For One Minute
Insulator Resistance:	500MΩ Min (at DC500V)	Contact Resistance:	35MΩ Max
Operation Temperature:	-55°C To +105°C	Data Speed Rate:	Up To 10Gb/s
Mounting Type:	PCB
Highlight:	2 port SFP+ connector PCB mount , 40 pin female SFP+ connector , SFP+ connector with light indicator

2x1 2 Port SFP+ Cage Connector, Press-Fit Termination Small Form-factor Pluggable Plus 40 Position SFP+ Connector w/ Light

Product Overview

The SFP+ (Small Form-factor Pluggable Plus) connector is a high-performance optical transceiver designed for data communication applications. This 2x1 2-port configuration features press-fit termination and includes a lightpipe for status indication.

Technical Specifications

Feature	Specification
Product Name	SFP Connector
Product Line	Small Form-factor Pluggable
Connector Gender	Female Centronic Connector
Contact Type	Small Form-factor Pluggable
Number of Positions	40pin
Ports	2x1 2 Ports
Contact Material	Phosphor Bronze
Finish	Nickel Silver
Insulation Material	PBT
Lightpipe	Yes

Electrical Specifications

Parameter	Value
Current Rating	1AMP
Withstanding Voltage	500V for one minute
Insulator Resistance	500MΩ min (at DC500V)
Contact Resistance	35MΩ Max
Operation Temperature	-55°C to +105°C

Applications

Networking equipment
Router/Switch
Data/Communications
High-end servers
Telecommunications
Switches
Telecommunications hardware
Fibre Channel and Gigabit Ethernet
Servers

Packaging & Shipping

Our products are securely packaged using:

Vacuum Tray
PE Bag
Strong bags/boxes/cartons
PE Bag + Strips

About Dongguan Fuyconn Electronics Co., Ltd

Established in 2004, we specialize in IT and communication connectors with over 1,000 models available. Our 5,000 square meter ISO-certified facility includes R&D, molding, plastic injection, stamping, and assembly production lines.

Quality Assurance

UL- and SGS-certified
RoHS compliant
Product defect rate less than 0.5%
99% customer repeat rate

Why Choose Us

16 years Centronic Connector production experience
Experienced R&D team
Thousands of molds available
Factory-direct pricing
Fast sample delivery (within 2 days)
Short lead times (within 1 week)
No minimum order quantity
Custom branding available
Full production control
Multiple payment methods
