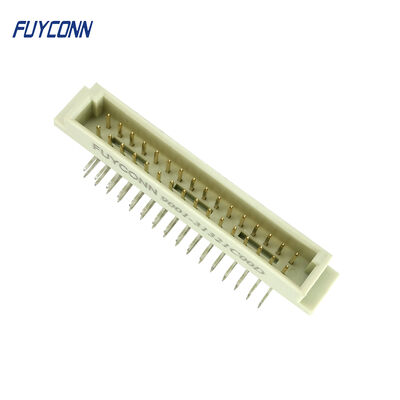

Replace Harting P/N 09 22 132 2921 DIN-Signal 2B032MS-3, DIN Signal Type 2B Male Solder Angled 32-Pole

2B Type 2.54mm pitch 2 rows 32P Right Angle PCB DIN41612 Connector, 2*16 32 pin Male R/A PCB Euro 41612 connector

DIN 41612 is a DIN standard for electrical connectors widely used in rack-based electrical systems. Standardization of these connectors is essential for open systems, where users expect components from different suppliers to operate together seamlessly.

The most widely known application of DIN 41612 connectors is in the VMEbus system. These connectors have been widely accepted as a standard for various interconnection applications in telecommunications and data markets worldwide.

• Type: 2B DIN 41612 Connector
• Pitch: 2.54mm
• Configuration: 2 rows, 32 poles
• Orientation: Right angle PCB mount
• Gender: Male
• Termination: Solder type
• Available pin configurations: 5pin, 10pin, 15pin, 20pin, 30pin, 32pin, 48pin, 64pin, and 96pin

Our Eurocard connector line is available in board-to-board, wire-to-board, ribbon cable-to-board, and high-current configurations. These connectors incorporate internationally accepted design advantages of DIN 41612 and IEC 60603-2 two-piece connectors, providing high Signal Integrity (SI) and superior electrical performance.

With our comprehensive portfolio, you can easily find the right connector type and style for your specific application requirements.

• STE Bus
• CIMBUS
• FUTUREBUS
• VMEBus
• MULTIBUS (II)
• NUBUS
• VXi Bus
• VME 64X
