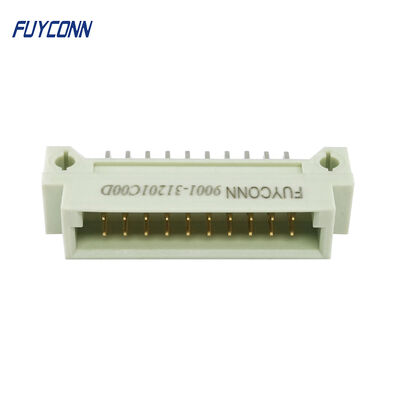

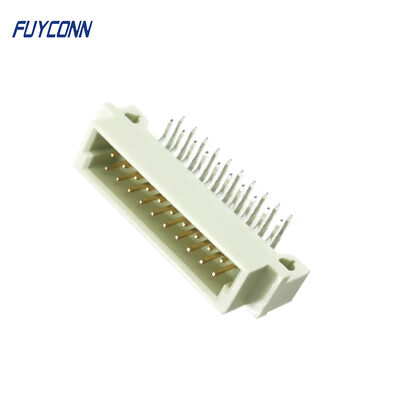

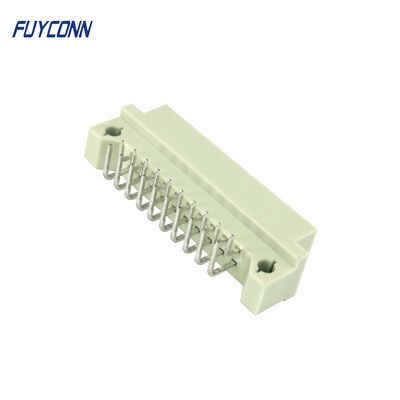

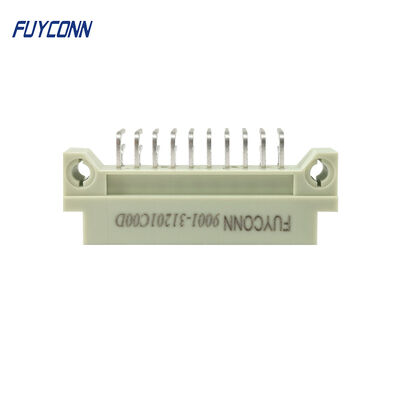

Replace Harting P/N 09 24 120 6921 DIN-Signal 3B020MS-3, DIN Signal Type 3B Male Solder Angle 20-Poles

2.54mm 20pin PCB Right Angle 2Rows Terminal Male DIN41612 Connector, 2*10pin 20pin Right Angle PCB 3 Rows European connector

2 rows 20 Pin B Type Eurocard Connector Right Angle Male DIN 41612 Connector

DIN 41612.pdf

DIN 41612 is a DIN standard for electrical connectors that are widely used in rack based electrical systems. Standar disation of the connectors is a pre-requisite for open systems, where users expect components from different suppliers to operate together. The most widely known use of DIN 41612 connectors is in the VMEbus system.

The DIN 41612 has been widely accepted as a standard for a variety of interconnection applications in the telecommunications and data markets worldwide. The most widely known use of DIN 41612 connectors is in the VME bus system.DIN connectors with three rows(a, b, c) of contacts on 0.100"(2.54mm) square grid are available in wire-wrap or solder tail type terminations. 5pin 10pin, 15pin 20pin,30pin, 32pin 48pin 64pin and 96pin are available.
