Centronics Parallel Port Connector 36 Pin PCB Mounting Straight Female Receptacle Socket for Dot Matrix Printer

Good quality 50 Pin Centronics Connector for sales
Good quality 50 Pin Centronics Connector for sales
I'm Online Chat Now

Centronics Parallel Port Connector 36 Pin PCB Mounting Straight Female Receptacle Socket for Dot Matrix Printer

China Centronics Parallel Port Connector 36 Pin PCB Mounting Straight Female Receptacle Socket for Dot Matrix Printer supplier

Large Image :  Centronics Parallel Port Connector 36 Pin PCB Mounting Straight Female Receptacle Socket for Dot Matrix Printer

Product Details:

Place of Origin: China
Brand Name: FUYCONN
Certification: UL 94-V0, ROHS-certified, ISO 9001:2008, ISO 14001:2004
Model Number: FUY57062-36P

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: Negotiable
Packaging Details: Vacuum Tray + Carton
Delivery Time: 7-10 days
Payment Terms: T/T or Paypal
Supply Ability: 1 million/ month
Contact Now
Detailed Product Description

FUY57062  Centronix Connector 36 Pin Female Straight PCB Mounting Connector for Dot Matrix Printer

Detail Description
Product Category: Centronic connector
Product Line: Champ Connector
Type: Straight Angle PCB Connector
Number of Terminal: 36 pin
PCB Mount Style:Vertical
Connector Style:Receptacle
Gender: Female
Insulator Color: Black or Blue
Insulator Material: PBT
Contact pin Material: Phosphor Bronze
Shield Plating: Nickel
Centerline = 2.16mm [0.085in]
Mounting Option: Spring Latches

Advantage
1,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample available in 2 days

 Common Features


Designed for Cable-to-cable and cable-to-PC Board applications
Board Application
Available in Plug & Socket styles
Terminal Option with various types
Connector and hood sold as complete assembly
Available in low profile hood style
Metal shell provides grounding and shielding capability
Mates with industry compatible connector

Product Features


Product Type: Centronics PCB Mounting Connector
Product Line: Champ Connector
Gender:    Female
Connector Style:  Receptacle
Certerline : 2.16mm(0.85in)
Number of Position:  36 pin
Contact Plating:  Gold Plating (1U", 3U", 5U" ,10U", 15U", 30U")
Terminals Type Straight Terminals
Insulator Color: Black or Blue
Shielded:  Yes
Orientation:  Parllel Lines
Mating connector lock:  Screws Lock

Materials


Contact Material:  Phosphor Bronze
Insulator: PPT (UL 94-V0)
Shell Nickel Plated Steel

Electrical Character


Current Rating: 5Amp
Withstanding Voltage: AC 1000v r.m.s
Insulation Resistance: 1000 Megohms Minimum at DC 500V
Contact Resistance: 25M∩ Max Mated
Operation Temperature:  -55°C to +105°C

Application


1, VDSL Teleccom Equipment
2, Computer Peripherals
3, Communication Equipment
4, PCB Board
5, Cable to Panel
6, Cable to cable
7,Computer terminal
8,Telemetering
9,Test Equipment
10, Printer

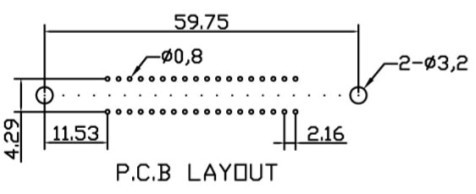

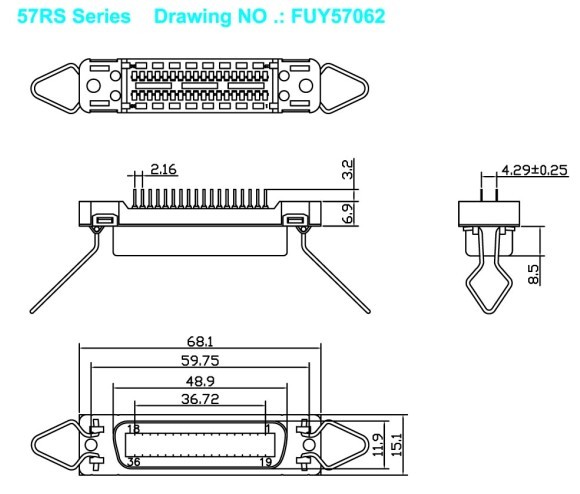

Technology Parameters
Centronics Parallel Port Connector 36 Pin PCB Mounting Straight Female Receptacle Socket for Dot Matrix Printer
Centronics Parallel Port Connector 36 Pin PCB Mounting Straight Female Receptacle Socket for Dot Matrix Printer
