57 CN Series 50Pin Centronic Solder Connector male type 2.16mm pitch champ connector

Certification
China Dongguan Fuyconn Electronics Co,.LTD certification
China Dongguan Fuyconn Electronics Co,.LTD certification
I'm Online Chat Now

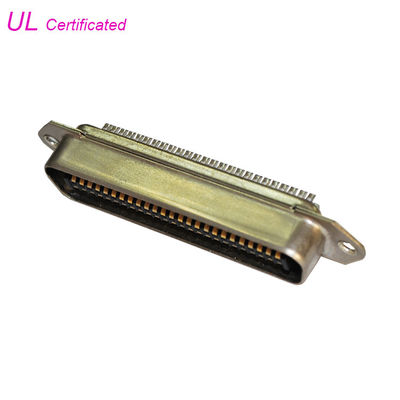

57 CN Series 50Pin Centronic Solder Connector male type 2.16mm pitch champ connector

57 CN Series 50Pin Centronic Solder Connector male type 2.16mm pitch champ connector
57 CN Series 50Pin Centronic Solder Connector male type 2.16mm pitch champ connector
57 CN Series 50Pin Centronic Solder Connector male type 2.16mm pitch champ connector 57 CN Series 50Pin Centronic Solder Connector male type 2.16mm pitch champ connector 57 CN Series 50Pin Centronic Solder Connector male type 2.16mm pitch champ connector 57 CN Series 50Pin Centronic Solder Connector male type 2.16mm pitch champ connector

Large Image :  57 CN Series 50Pin Centronic Solder Connector male type 2.16mm pitch champ connector

Product Details:
Place of Origin: China
Brand Name: FUYCONN
Certification: UL 94-V0, ROHS-certified, ISO 9001:2008, ISO 14001:2004
Model Number: FUY57028
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Vacuum Tray + Carton
Delivery Time: 7-10 days
Payment Terms: T/T or Paypal
Supply Ability: 1 million/ month

57 CN Series 50Pin Centronic Solder Connector male type 2.16mm pitch champ connector

Description
Product Name: Centronic Solder Connector No. Of Pin: 14pin 24pin 36pin 50pin
Gender: Male Plug Gold Plating: 1U", 3U", 5U", 10U", 15U",30U"
Color: Black Or Blue Material: Brass & PBT
Pitch: 2.16mm Application: RJ21 Cable
High Light:

solder connectors

,

d type connector

14 24 36 50 Pin Centronic Champ Solder Plug Ribbon Connector Certified UL



This type of connector got its name from the Centronics Corporation, a manufacturer based in Nashua, New Hampshire. Back in the 1970's, Centronics made printers for use with computers. As computers and attached printers became more popular, the connector that they used became the de facto industry standard. The Centronics Corporation was purchased by Genicom (now TallyGenicom) in the 1980's, but their name lives on in this connector.


The Centronics connector has a plastic bar in the center of the connector body that holds the contact pins. The body of the connector is often black or blue in color.



57 CN Series 50Pin Centronic Solder Connector male type 2.16mm pitch champ connector 0

Detail Description

Product Category: Centronic connector
Product Line: Champ Connector
Type: Centronic Solder Connector
Number of Terminal: 14 24 36 50pin
Connector Style:Plug
Gender: Male
Centerline = 2.16mm [0.085in]
Insulator Color: Black or Blue
Insulator Type: Hard connection
Insulator Material: PBT
Contact pin Material: Brass
Shield Plating: Nickel



Common Features

Designed for Cable-to-cable and cable-to-PC Board applications
Board Application
Terminal Option with various types
Connector and hood sold as complete assembly
Avilable in low profile hood style
Metal shell provides grounding and shielding capability
Mates with industry compatible connector



Product Features

Product Type: Centronics Solder Connector
Product Line: Champ Connector
Gender:    Male
Connector Style:  Plug
Certerline : 2.16mm(0.85in)
Number of Position:  14 24 36 50pin
Contact Plating:  Gold Plating (1U", 3U", 5U" ,10U", 15U", 30U")
Insulator Color: Black or Blue
Shielded:  Yes
Orientation:  Parllel Lines
Mating connector lock:  Screwlocks



Materials

Contact Material:  Brass
Insulator: PBT (UL 94-V0)
Shell Nickel Plated Steel



Electrical Character

Current Rating: 5Amp
Withstanding Voltage: AC 1000v r.m.s
Insulation Resistance: 1000 Megohms Minimum at DC 500V
Contact Resistance: 25M∩ Max Mated
Operation Temperature:  -55°C to +105°C



Application

1, VDSL Teleccom Equipment
2, Computer Peripherals
3, Communication Equipment
4, RJ21 Cable
5, Cable to Panel
6, Cable to cable
7,Computer terminal
8,Telemetering
9,Test Equipment
10, Printer
