Product Details:
|
| Connector Line: | Centronic Connector | Connector Type: | Right Angle Pcb Connector |
|---|---|---|---|
| Gender: | Male Centronic Connector | Pitch: | 2.16mm Pitch Connector |
| No. Of Pin: | 14pin 24pin 36pin 50pin 64pin | Contact Material: | Phosphor Bronze |
| Gold Plating: | 1u", 3u", 5u", 10u", 20u", 30u" | Insulation Color: | Black Or Blue |
| High Light: | right angle header connector,right angle cable connector |
||

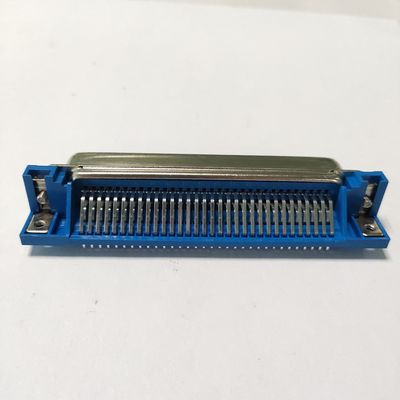

FUY57015 Centronics 2.16mm Pitch Champ Right Angle PCB Printer Connector 64 Pin Male Plug Header
Right angle PCB centronic 64pin connector male 14pin 24pin 36pin 50pin available
This type of connector got its name from the Centronics Corporation, a manufacturer based in Nashua, New Hampshire. Back in the 1970's, Centronics made printers for use with computers. As computers and attached printers became more popular, the connector that they used became the de facto industry standard. The Centronics Corporation was purchased by Genicom (now TallyGenicom) in the 1980's, but their name lives on in this connector.
The Centronics connector has a plastic bar in the center of the connector body that holds the contact pins. The body of the connector is often black or blue in color.
Detail Description
Advantage
1,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample available in 2 days
Common Features
| Designed for Cable-to-cable and cable-to-PC Board applications | |
| Board Application | |
| Available in Plug & Socket styles | |
| Terminal Option with various types | |
| Connector and hood sold as complete assembly | |
| Available in low profile hood style | |
| Metal shell provides grounding and shielding capability | |
| Mates with industry compatible connector |
Product Features
| Product Type: | Centronics PCB Mounting Connector |
| Product Line: | Champ Connector |
| Gender: | Male |
| Connector Style: | Plug |
| Certerline : | 2.16mm(0.85in) |
| Number of Position: | 14pin 24pin 36 pin 50pin 64pin |
| Contact Plating: | Gold Plating (1U", 3U", 5U" ,10U", 15U", 30U") |
| Terminals Type | Right Angle Terminals |
| Insulator Color: | Black or Blue |
| Shielded: | Yes |
| Orientation: | R/A |
| Mating connector lock: | L Bracket |
Materials
| Contact Material: | Phosphor Bronze |
| Insulator: | PBT (UL 94-V0) |
| Shell | Nickel Plated Steel |
Electrical Character
| Current Rating: | 5Amp |
| Withstanding Voltage: | AC 1000v r.m.s |
| Insulation Resistance: | 1000 Megohms Minimum at DC 500V |
| Contact Resistance: | 25M∩ Max Mated |
| Operation Temperature: | -55°C to +105°C |
Application
| 1, VDSL Teleccom Equipment | |
| 2, Computer Peripherals | |
| 3, Communication Equipment | |
| 4, PCB Board | |
| 5, Cable to Panel | |
| 6, Cable to cable | |
| 7,Computer terminal | |
| 8,Telemetering | |
| 9,Test Equipment | |
| 10, Printer |
