Product Details:
|
| Product Name: | Centronics PCB Connector | Product Line: | Champ Connector |
|---|---|---|---|
| Type: | Right Angle PCB Connector | Color: | Black Or Blue |
| Number Of Terminal: | 14 24 36 50 Pin | Gender: | Male |
| Pitch: | 2.16mm | Contact Material: | Phosphore Bronze |
| Insulaiton Material: | PBT | ||
| High Light: | 36 pin centronics female connector,smt connectors |
||

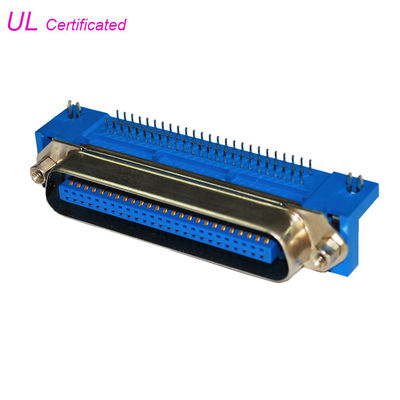

57CN Series 36 Pin Centronics Connector , 50pin 36pin 24pin 14pin PCB Male Printer Connector
Product Features
|
Product Type: |
Centronics PCB Mounting Connector |
|
Product Line: |
Champ Connector |
|
Gender: |
Male |
|
Connector Style: |
Plug |
|
Certerline : |
2.16mm(0.85in) |
|
Number of Position: |
36pin 14pin 24pin 50pin |
|
Contact Plating: |
Gold Plating (1U", 3U", 5U" ,10U", 15U", 30U") |
|
Terminals Type |
Right Angle Terminals |
|
Insulator Color: |
Black or Blue |
|
Shielded: |
Yes |
|
Orientation: |
Right Angle |
|
Mating connector lock: |
Screws Lock , Board Lock |
Detail Description
Product Category: Centronic connector
Product Line: Champ Connector
Type: Right Angle PCB Connector
Number of Terminal: 36pin 14pin 24pin 50pin
PCB Mount Style:Right Angle
Connector Style:Plug
Gender: Male
Insulator Color: Black or Blue
Insulator Material: PBT
Contact pin Material: Phosphor Bronze
Shield Plating: Nickel
Centerline = 2.16mm [0.085in]
Mating Lock: Z Bracket Board lock
Mounting Option: Hex Head Screws
Application: PCB Board
Advantage
1,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample available in 2 days
Common Features
|
Designed for Cable-to-cable and cable-to-PC Board applications |
|
|
Board Application |
|
|
Available in Plug & Socket styles |
|
|
Terminal Option with various types |
|
|
Connector and hood sold as complete assembly |
|
|
Available in low profile hood style |
|
|
Metal shell provides grounding and shielding capability |
|
|
Mates with industry compatible connector |
Materials
|
Contact Material: |
Phosphor Bronze |
|
Insulator: |
PBT (UL 94-V0) |
|
Shell |
Nickel Plated Steel |
Electrical Character
|
Current Rating: |
5Amp |
|
Withstanding Voltage: |
AC 1000v r.m.s |
|
Insulation Resistance: |
1000 Megohms Minimum at DC 500V |
|
Contact Resistance: |
25M∩ Max Mated |
|
Operation Temperature: |
-55°C to +105°C |
Application
|
1, VDSL Teleccom Equipment |
|
|
2, Computer Peripherals |
|
|
3, Communication Equipment |
|
|
4, PCB Board |
|
|
5, Cable to Panel |
|
|
6, Cable to cable |
|
|
7,Computer terminal |
|
|
8,Telemetering |
|
|
9,Test Equipment |
|
|
10, Printer |
