Product Details:
|
| High Light: | female plug connector,d type connector |
||
|---|---|---|---|

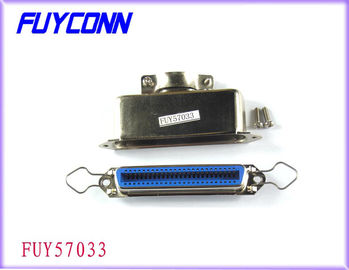

36 Pin Female Centronic Solder Connector with 180°Matel Hood Certified UL
FUY57033 180°Matel Hood 36 Pin Female Centronic Connector Solder Type header with Spring Latches
Detail Description:
| Designed for Cable-to-cable and cable-to-PC Board applications | |
| Board Application | |
| Terminal Option with various types | |
| Connector and hood sold as complete assembly | |
| Avilable in low profile hood style | |
| Metal shell provides grounding and shielding capability | |
| Mates with industry compatible connector |
Product Features
| Product Type: | Centronics Solder Connector |
| Product Line: | Champ Connector |
| Gender: | Female |
| Connector Style: | Receptacle |
| Certerline : | 2.16mm(0.85in) |
| Number of Position: | 36 pin |
| Contact Plating: | Gold Plating (1U", 3U", 5U" ,10U", 15U", 30U") |
| Insulator Color: | Black or Blue |
| Shielded: | Yes |
| Orientation: | 180 Degree Cable Exit |
| Mating connector lock: | Screwlocks |
| Cover | Metal Hood |
Materials
| Contact Material: | Phosphor Bronze |
| Insulator: | PBT (UL 94-V0) |
| Shell | Nickel Plated Steel |
| Housing Material: | Nickel Plated Steel |
Electrical Character
| Current Rating: | 5Amp |
| Withstanding Voltage: | AC 1000v r.m.s |
| Insulation Resistance: | 1000 Megohms Minimum at DC 500V |
| Contact Resistance: | 25M∩ Max Mated |
| Operation Temperature: | -55°C to +105°C |
Application
| 1, VDSL Teleccom Equipment | |
| 2, Computer Peripherals | |
| 3, Communication Equipment | |
| 4, RJ21 Cable | |
| 5, Cable to Panel | |
| 6, Cable to cable | |
| 7,Computer terminal | |
| 8,Telemetering | |
| 9,Test Equipment | |
| 10, Printer |
