Product Details:
|
| Connector Line: | Champ Connector | Connector Type: | IDC Crimping Connector |
|---|---|---|---|
| No. Of Pin: | 25pairs 50pin | Gender: | Male Connector |
| Pitch: | 2.16mm Pitch | Color: | Black |
| Gold Plating: | 1u" 3u" 5u" 10u" 15u" 20u" | Housing: | 90 Or 180 Degree Plastic Housing |
| High Light: | amp champ connector,solder connectors |
||
50 Pin RJ21 Male Centronic IDC Champ Connector without Cover Certificated UL

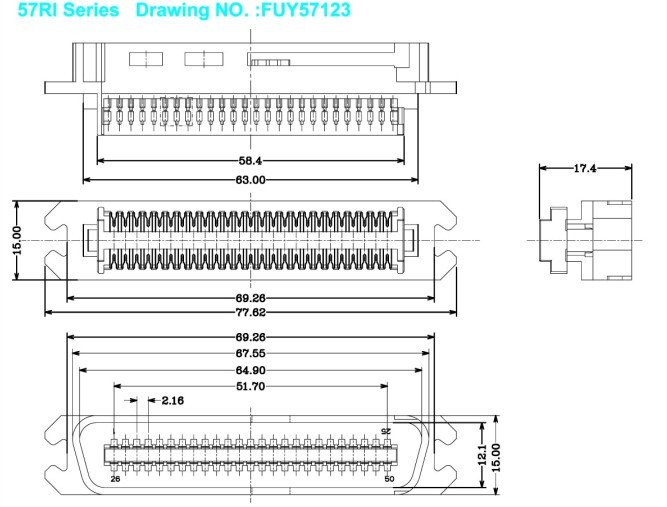

FUY57123-50P Champ TYCO AMP RJ21 25 Pairs Centronic Connector Male IDC Type
This type of connector got its name from the Centronics Corporation, a manufacturer based in Nashua, New Hampshire. Back in the 1970's, Centronics made printers for use with computers. As computers and attached printers became more popular, the connector that they used became the de facto industry standard. The Centronics Corporation was purchased by Genicom (now TallyGenicom) in the 1980's, but their name lives on in this connector.
The Centronics connector has a plastic bar in the center of the connector body that holds the contact pins.The Centronics 50-pin connector is arranged in two rows of pins each with 25 contacts.
Detail Description
Product Category: Centronic connector
Product Line: Champ Connector
Type: Centronic IDC Connector
Connector Style:Plug
Number of Terminal: 50 pin 25pair
Gender: Male
Insulator Color: Black
Insulator Material: PBT
Contact pin Material: Phosphor Bronze
Centerline = 2.16mm [0.085in]
Mounting Option: MD Type
Cover: Plastic Cover or No Cover both are available
Common Features
| Designed for Cable-to-cable and cable-to-PC Board applications | |
| Avilable in Plug & Socket Style | |
| Terminal Option with various types | |
| Connector and hood sold as complete assembly | |
| Avilable in low profile hood style | |
| Metal shell provides grounding and shielding capability | |
| Mates with industry compatible connector |
Product Features
| Product Type: | Centronics IDC Connector |
| Product Line: | Champ Connector |
| Gender: | Male |
| Connector Style: | Plug |
| Certerline : | 2.16mm(0.85in) |
| Number of Position: | 50 pin 25piars |
| Contact Plating: | Gold Flash 1U", 3U", 5U" ,10U", 15U", 30U" |
| Insulator Color: | Black |
| Shielded: | Yes |
| Orientation: | Parllel Lines |
| Mating connector lock: | MD Shape |
Materials
| Contact Material: | Phosphor Bronze |
| Insulator: | PBT (UL 94-V0) |
Electrical Character
| Current Rating: | 5Amp |
| Withstanding Voltage: | AC 1000v r.m.s |
| Insulation Resistance: | 1000 Megohms Minimum at DC 500V |
| Contact Resistance: | 25M∩ Max Mated |
| Operation Temperature: | -55°C to +105°C |
Application
| 1, VDSL Teleccom Equipment | |
| 2, Computer Peripherals | |
| 3, Communication Equipment | |
| 4, RJ21 Cable | |
| 5, Cable to Panel | |
| 6, Cable to cable | |
| 7,Computer terminal | |
| 8,Telemetering | |
| 9,Test Equipment | |
| 10, Printer |
Advantage
1,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample available in 2 days
