Product Details:
|
| Product Name: | IDC Male Connector | Product Line: | Champ Connector |
|---|---|---|---|
| Type: | Centronic IDC Connector | Connector Style: | Plug |
| Number Of Terminal: | 50 Pin | Gender: | Male |
| High Light: | board to board connector,ribbon cable connector |
||
Tyco AMP 50 Pin Champ Male IDC Centronic Connector 25 pairs Plug.pdf

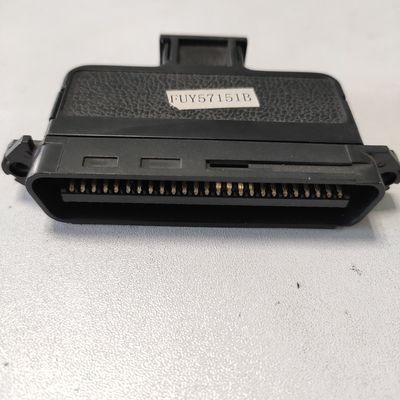

TYCO 180 Degree 50 Pin RJ21 IDC Male Connector Champ Centronic Connector
Tyco 180 degree 25 pairs AMP Connector IDC 50 Pin Male Type
The Centronics 50-pin connector is arranged in two rows of pins each with 25 contacts. This connector is held in place by bail locks. The Centronics 50 connector is most often used by older SCSI-1 devices (scanners, storage devices, etc.). A slight variant of the Centronics 50 connector is used in voice/data applications. This variant is commonly called a Telco connector.
Detail Description:
Product Category: Centronic connector
Product Line: Champ Connector
Type: Centronic IDC Connector
Connector Style:Plug
Number of Terminal: 50 pin
Gender: Male
Insulator Color: Black
Insulator Material: PPO
Contact pin Material: Phosphor Bronze
Centerline = 2.16mm [0.085in]
Mounting Option: 180°Cable Outlet (Straight Cable entry)
Cover: Plastic Cover or No Cover both are available
Application: RJ21 Cable
| Common Features: | |
| Designed for Cable-to-cable and cable-to-PC Board applications | |
| Avilable in Plug & Socket Style | |
| Terminal Option with various types | |
| Connector and hood sold as complete assembly | |
| Avilable in low profile hood style | |
| Metal shell provides grounding and shielding capability | |
| Mates with industry compatible connector |
| Product Features: | |
| Product Type: | Centronics IDC Connector |
| Product Line: | Champ Connector |
| Gender: | Male |
| Connector Style: | Plug |
| Certerline : | 2.16mm(0.85in) |
| Number of Position: | 50 pin / 25 pairs |
| Contact Plating: | Gold Flash 1U", 3U", 5U" ,10U", 15U", 30U" |
| Insulator Color: | Black |
| Shielded: | Yes |
| Orientation: | 180 Degree Cable Exit |
| Mating connector lock: | Screwlocks |
| Materials | |
| Contact Material: | Phosphor Bronze |
| Insulator: | PPO (UL 94-V0) |
| Housing Material: | PPO Thermoplastic Cover |
| Electrical Character | |
| Current Rating: | 5Amp |
| Withstanding Voltage: | AC 1000v r.m.s |
| Insulation Resistance: | 1000 Megohms Minimum at DC 500V |
| Contact Resistance: | 25M∩ Max Mated |
| Operation Temperature: | -55°C to +105°C |
| Application | |
| 1, VDSL Teleccom Equipment | |
| 2, Computer Peripherals | |
| 3, Communication Equipment | |
| 4, RJ21 Cable |
Advantage:
1,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample available in 2 days
