36 Pin Solder Centronic Champ Male Parallel Port Connector with Matel Cover Easy and Soft Type

China 36 Pin Solder Centronic Champ Male Parallel Port Connector with Matel Cover Easy and Soft Type supplier

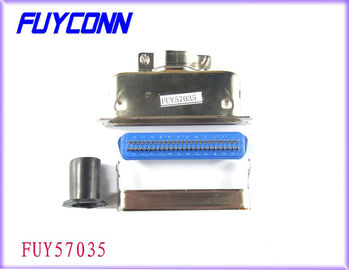

Large Image :  36 Pin Solder Centronic Champ Male Parallel Port Connector with Matel Cover Easy and Soft Type

Product Details:

Place of Origin: China
Brand Name: FUYCONN
Certification: UL 94-V0, ROHS-certified, ISO 9001:2008, ISO 14001:2004
Model Number: FUY57035-36P

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: Negotiable
Packaging Details: Vacuum Tray + Carton
Delivery Time: 7-10 days
Payment Terms: T/T or Paypal
Supply Ability: 1 million/ month
Contact Now
Detailed Product Description



36 Pin Solder Centronic Champ Male Parallel Port Connector with Matel Cover Easy and Soft Type



FUY57035  180 Degree Metal Cover Centronix Male Plug IEEE 1284 Connector 36 Pin Solder pins Type



Detail Description:


Product Category: Centronic connector
Product Line: Champ Connector
Type: Centronic Solder Connector
Number of Terminal: 36 pin
Connector Style:Plug
Gender: Male
Centerline = 2.16mm [0.085in]
Conver Style: Metal Hood
Insulator Color: Black or Blue
Insulator Type: Easy and Soft connection
Insulator Material: PBT
Contact pin Material: Brass
Shield Plating: Nickel
Mounting Option: Straight Cable Exit, MD Type
Application: Printer

Common Features

Designed for Cable-to-cable and cable-to-PC Board applications
Board Application
Terminal Option with various types
Connector and hood sold as complete assembly
Avilable in low profile hood style
Metal shell provides grounding and shielding capability
Mates with industry compatible connector

Product Features

Product Type: Centronics Solder Connector
Product Line: Champ Connector
Gender:    Male
Connector Style:  Plug
Certerline : 2.16mm(0.85in)
Number of Position:  36 pin
Contact Plating:  Gold Plating (1U", 3U", 5U" ,10U", 15U", 30U")
Insulator Color: Black or Blue
Shielded:  Yes
Orientation:  180 Degree Cable Exit
Mating connector lock:  Screwlocks
Cover Metal Hood

Materials

Contact Material:  Brass
Insulator: PBT (UL 94-V0)
Shell Nickel Plated Steel
Housing Material: Nickel Plated Steel

Electrical Character

Current Rating: 5Amp
Withstanding Voltage: AC 1000v r.m.s
Insulation Resistance: 1000 Megohms Minimum at DC 500V
Contact Resistance: 25M∩ Max Mated
Operation Temperature:  -55°C to +105°C

Application



1, VDSL Teleccom Equipment
2, Computer Peripherals
3, Communication Equipment
4, RJ21 Cable
5, Cable to Panel
6, Cable to cable
7,Computer terminal
8,Telemetering
9,Test Equipment
10, Printer

Advantage

1,ROHS compliant, UL-approved

2,High quality, Competitive price

3,Quick delivery time

4,Free sample available in 2 days
