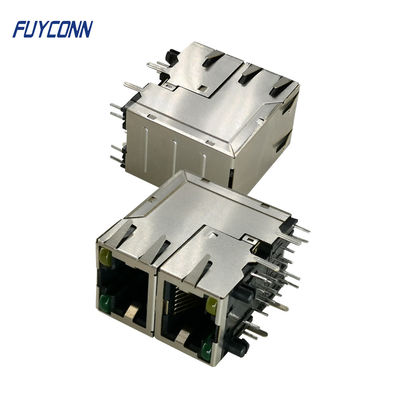

2x1 2 Ports LED Light 16 Pin RJ45 Female Connector For Network

Large Image : 2x1 2 Ports LED Light 16 Pin RJ45 Female Connector For Network

Product Details:

Place of Origin:	China
Brand Name:	FUYCONN
Certification:	ISO
Model Number:	FUYRJ45045-36

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	USD0.2-USD2/pc
Packaging Details:	Vacuum Tray + Carton
Delivery Time:	5-8 works day
Payment Terms:	T/T, Paypal
Supply Ability:	10000/ week

Contact Now

2x1 2 Ports LED Light 16 Pin RJ45 Female Connector For Network

Description

Product Category:	RJ Series	Product Line:	RJ45
Type:	Right Angle PCB Connector	Number Of Terminal:	2x1 2 Ports
Led Light:	Yes	Gender:	Female
Insulator Color:	Black	Insulator Material:	PBT
Contact Pin Material:	Phosphor Bronze	Shell:	60u" Min. Nickel Plated
Highlight:	2x1 Ports RJ45 Female Connector , 16 Pin RJ45 Female Connector

2x1 Port Shielded 2*8P 16Pin RJ45 modular connector, Female Socket PCB Plug 2ports RJ45 Modular Jack Connector With LED light

Product features

1. Product Line:	RJ45 Connector
2. Connector Gender:	Female
3. Number of Position:	*28P 16Pin**
4. Number of Ports:	2x1 2 ports
5. Tab Direction	Up/Down
6. Contact Plating:	1U", 3U", 5U", 10U", 15U",30U"
7. Insualtion material	PBT
8. Led Light	red + green

Electrical Specifications

Current Rating	1.5 Amps
Voltage Rating	125VAC
Insulation Resistance	500 MΩmin
Contact Resistance	30 mΩmax
Withstanding Voltage	AC 1000V RMS 50Hz or 60Hz 1 min

2x1 2 Ports LED Light 16 Pin RJ45 Female Connector For Network 0
