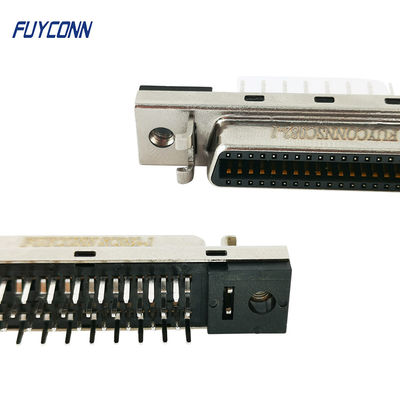

Mini D Ribbon Connector MDR Straight PCB 36 Pin SCSI Connector with Fixness

Mini D Ribbon Connector MDR Straight PCB 36 Pin SCSI Connector with Fixness

Mini D Ribbon Connector MDR Straight PCB 36 Pin SCSI Connector with Fixness
Mini D Ribbon Connector MDR Straight PCB 36 Pin SCSI Connector with Fixness

Large Image :  Mini D Ribbon Connector MDR Straight PCB 36 Pin SCSI Connector with Fixness Get Best Price

Product Details:
Place of Origin: China
Brand Name: FUYCONN
Certification: ISO
Model Number: FUYSC082-1 (36P)
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: USD0.2-USD2/pc
Packaging Details: Vacuum Tray + Carton
Delivery Time: 5-8 works day
Payment Terms: T/T, Paypal
Supply Ability: 100000/ week
Detailed Product Description
Product Name: SCSI PCB Connector Gender: Female
Connector Type: CN Type Conatct: Brass With Gold Plating
Insulation Material: PBT Insulation Color: Black
Shell: Metal Nickeled No. Of Contacts: 36Pin
High Light:

Phosphor Bronze SCSI Connector

,

Metal Nickel SCSI Connector

Mini D Ribbon MDR 180 Degree PCB Mount SCSI 36P Female Servo Connector, 1.27mm pitch 36pin Female Straight PCB SCSI Connector



SCSI (Small Computer System Interface), is a kind of more special interface bus, equipped with a variety of types of peripherals to communicate. Advanced High Speed A versatile, high-speed, and low-cost method of interconnecting a varietyof computer peripherals and consume electronic devices.

The SCSI Connector are 14pin, 20pin, 26pin, 36pin, 50pin, 68pin and 100pin, and PCB / IDC Crimping type SCSI Connector versions. The internal 100 pin SCSI connector has 100 pins arranged in two rows one on top of the other. The top row has 0 pins and the lower row has 50 pins.


SCSI 20 Pin PCB Straight Female Connector CN Type with Fixness Hanger



Product features

No. of pin 36pin
shell : Stell, Nickel Plated
Housing : PBT
Contacts : Phosphor bronze
Gold plating 1U", 3U", 5U", 10U", 15U",30U"



Electrical characteristics

Current Rating 1AMP
Withstanding Voltage 500v for one minute
Insualtion Resistance 500MΩ min (at DC500V)
Contact Resistance 35MΩ Max)
Operating temperature :

-55°C to +105°C





Technology Parameters

Mini D Ribbon Connector MDR Straight PCB 36 Pin SCSI Connector with Fixness 0

SCSI (Small Computer System Interface), is a kind of more special interface bus, equipped with a variety of types of peripherals to communicate. Advanced High Speed A versatile, high-speed, and low-cost method of interconnecting a varietyof computer peripherals and consume electronic devices.



Type: SCSI Connector

Application:
Servo
Gender:
Female
Orientation:
Straight
Insulator material:
PBT
Contact Current Rating:
1A AC/DC
Contact Resistance:
Max 35m ohm
Insulator:
PBT, glass-filled, UL94V-0 rated
Contact:
phosphor bronze
Back shell:
nickel-plated
Insulation resistance:
500MΩ (minimum)
Contact resistance:
35mΩ (maximum)
No. of Pin :
68pin
