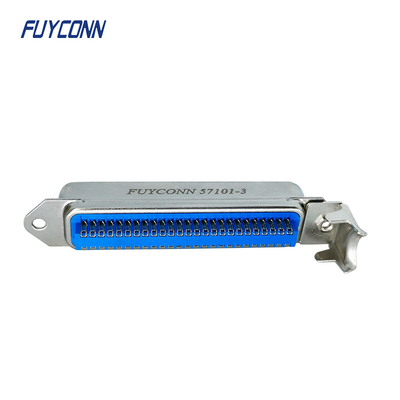

Plastic Hood Solder Cup Centronics 50 Pin Connector With L Shape Cover

Plastic Hood Solder Cup Centronics 50 Pin Connector With L Shape Cover

Plastic Hood Solder Cup Centronics 50 Pin Connector With L Shape Cover
Plastic Hood Solder Cup Centronics 50 Pin Connector With L Shape Cover

Large Image :  Plastic Hood Solder Cup Centronics 50 Pin Connector With L Shape Cover Get Best Price

Product Details:
Place of Origin: China
Brand Name: FUYCONN
Certification: UL 94-V0, ROHS-certified, ISO 9001:2008, ISO 14001:2004
Model Number: FUY57101-3
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Vacuum Tray + Carton
Delivery Time: 7-10 days
Payment Terms: T/T or Paypal
Supply Ability: 1 million/ month
Detailed Product Description
Connector Name: Centronic Connector Connector Type: Solder Cup
Gender: Male Connector No. Of Pin: 50pin
Pitch: 2.16mm Pitch Connector Contact Material: Phosphor Bronze
Gold Plating: 1u", 3u", 5u", 10u", 20u", 30u" Insulation Color: Black Or Blue
Insulation Material: PBT Application: Cable
High Light:

Plastic Hood Centronics 50 Pin Connector

,

Solder Cup Centronics 50 Pin Connector

,

L Shape Cover Centronics Connector

57-70500 Plastic Hood Solder Cup Connector 50Pin 70500 L Shape Cover





L Shape 57 70500 Plastic Hood Solder Cup Connector, R/A Dust Cover 25 pairs 50pos Male Plug 57-70500 Cable Connector





Common Features

Designed for Cable-to-cable and cable-to-PC Board applications
Board Application
Available in Plug & Socket styles
Terminal Option with various types
Connector and hood sold as complete assembly
Available in low profile hood style
Metal shell provides grounding and shielding capability
Mates with industry compatible connector



Current Rating: 5Amp
Withstanding Voltage: AC 1000v r.m.s
Insulation Resistance: 1000 Megohms Minimum at DC 500V
Contact Resistance: 25M∩ Max Mated
Operation Temperature: -55°C to +105°C





The Centronics connector has a plastic bar in the center of the connector body that holds the contact pins. The body of the connector is often black or blue in color.
The Centronics 50pin connector is arranged in two rows of pins each with 25 contacts, it is most often used by older SCSI-1 devices (scanners, storage devices, etc.).The Centronics 36pin connector is arranged in two rows of pins, each with 18 contacts. The connector is held in place by bail locks. The 36pin connector is often used for parallel applications, especially for printers.


Plastic Hood Solder Cup Centronics 50 Pin Connector With L Shape Cover 0

Product features

1. Product Line:
Centronic Connector
2. Product Name:
57 CN Connector
3. Connector Gender:
Male
4. Number of Position:
50 pin
5. Contact Material:
Brass
6. Contact Plating:
1U", 3U", 5U", 10U", 15U",30U"
7. Insulation Material:
PBT
8. Certification
UL certification
9. Hood
90 degree Platic Hood / 70500 Plastic Hood
10. Shell:
Nickel plated steel
11. Orientation:
Standard
12. Pitch
2.16mm

Advantage



1, ROHS compliant, UL-approved
2, High quality, Competitive price
3, Quick delivery time
4, Free sample available in 2 days





Application

1, VDSL Teleccom Equipment
2, Computer Peripherals
3, Communication Equipment
4, PCB Board
5, Cable to Panel
6, Cable to cable
7, Computer terminal
8, Telemetering
9, Test Equipment
10, Printer
