TE 552032-1 Replacement Connector, 50 Position D-Shaped Connector, Plug, Cable-to-Cable, Cable Mount (Free-Hanging), 2.16 mm [.085 in] Centerline, Wire & Cable, CHAMP Docking Connectors

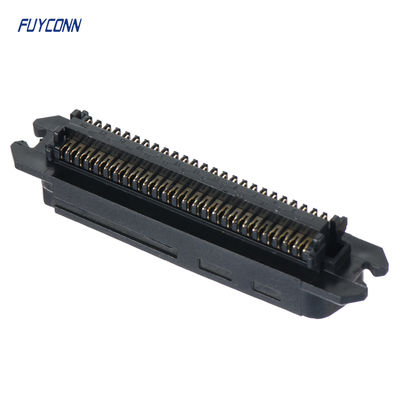

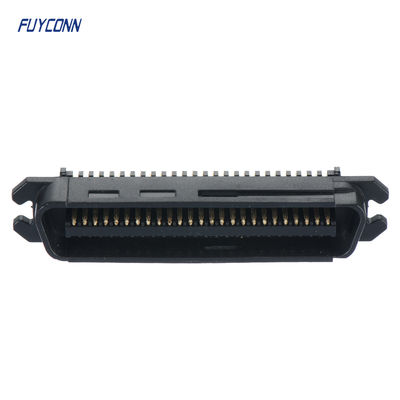

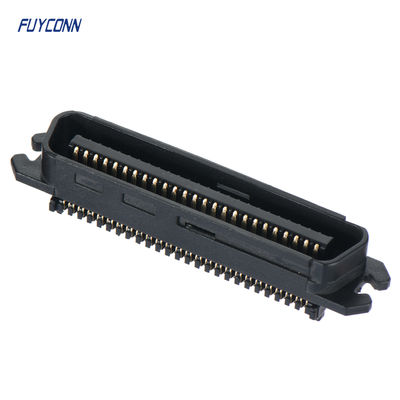

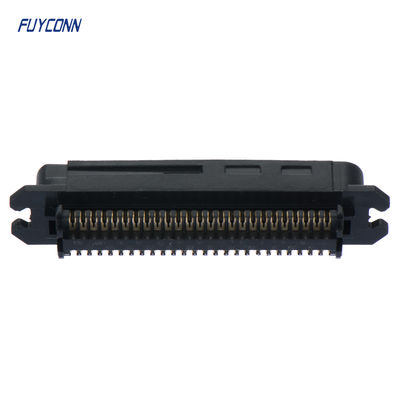

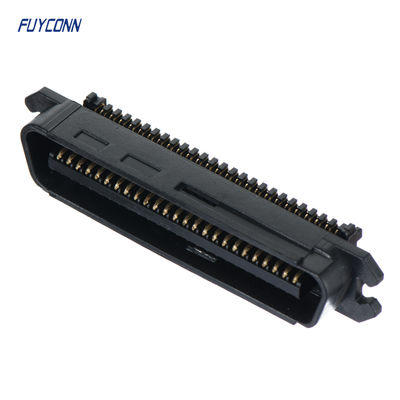

Large Image : TE 552032-1 Replacement Connector, 50 Position D-Shaped Connector, Plug, Cable-to-Cable, Cable Mount (Free-Hanging), 2.16 mm [.085 in] Centerline, Wire & Cable, CHAMP Docking Connectors

Product Details:

Place of Origin:	China
Brand Name:	FUYCONN
Certification:	UL 94-V0, ROHS-certified, ISO 9001:2008, ISO 14001:2004
Model Number:	FUY57123

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	Vacuum Tray + Carton
Delivery Time:	7-10 days
Payment Terms:	T/T,Western Union or Paypal
Supply Ability:	1 million/ month

Contact Now

TE 552032-1 Replacement Connector, 50 Position D-Shaped Connector, Plug, Cable-to-Cable, Cable Mount (Free-Hanging), 2.16 mm [.085 in] Centerline, Wire & Cable, CHAMP Docking Connectors

Description

Product Name:	50 Pin Centronics Connector	Product Line:	Champ Connector
Type:	Centronic IDC Connector	Connector Style:	Plug
Number Of Terminal:	50 Pin	Gender:	Male
Replacement:	TE 552032-1	Insulator Material:	PPO
Pitch:	2.16mm
Highlight:	50 position D-shaped connector plug , Centronics connector cable mount , CHAMP docking connector replacement

TE 552032-1 Replacement Connector

Product Overview

50 Position D-Shaped Connector, Plug, Cable-to-Cable, Cable Mount (Free-Hanging), 2.16 mm [.085 in] Centerline, Wire & Cable, CHAMP Docking Connectors

IDC D-sub CHAMP docking connector plug assembly, intended for cable to cable applications with Insulation Displacement Crimp (IDC) mass termination. Has a centerline pitch of 2.16 mm and used for signal circuit application.

D-Shaped connectors provide an electrical connection in a metal shell manufactured in the shape of a "D." These compact pin and socket connectors are designed to transmit power and signal in communications equipment, especially in high-density packages. Commonly used to connect computer monitors to personal computers as well as for connecting peripheral devices.

Key Specifications

Number of Positions: 50

Connector Type: Plug

Connector System: Cable-to-Cable

Mounting Type: Cable Mount (Free-Hanging)

Centerline (Pitch): 2.16 mm [.085 in]

Termination Method: Insulation Displacement (IDC)

Circuit Application: Signal

Shielded: No

Technical Details

Contact Current Rating: 1 | 3.5 A

Contact Plating: Gold Flash

Contact Base Material: Copper Alloy | Phosphor Bronze

Housing Material: Polyphenylene Oxide | Thermoplastic

Primary Color: Black

Operating Temperature: -55°C to 105°C | -40°C to 75°C

Wire Size (AWG): 24 | 26 | 27 | 28 | 30-26

Mating Retention: Screwlocks

Compatible Wire Types

Discrete Wire
Ribbon Cable
Round Jacketed Cable
