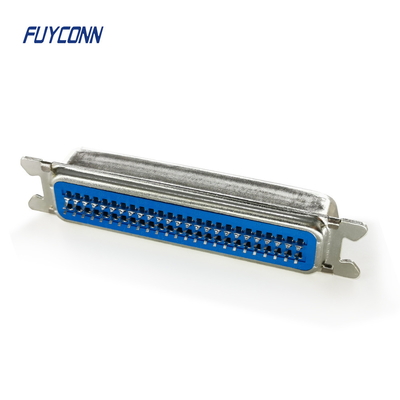

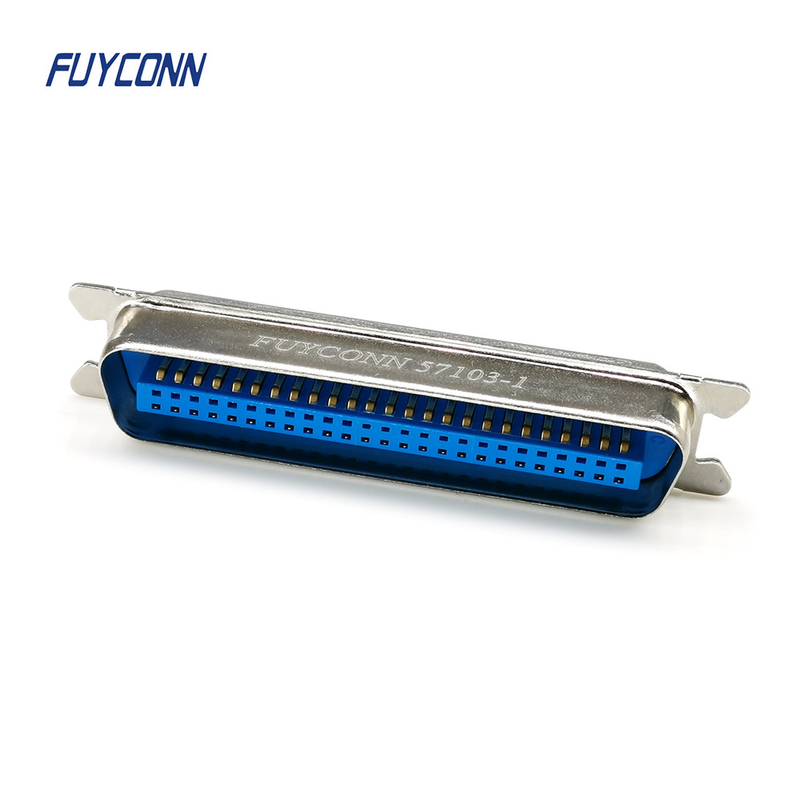

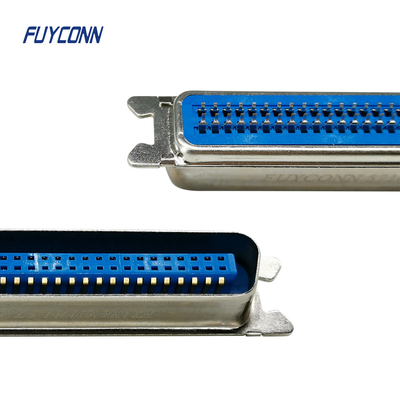

Clamp PCB Clip Male Centronic Connector 14 24 36 50 Pin

Large Image : Clamp PCB Clip Male Centronic Connector 14 24 36 50 Pin

Product Details:

Place of Origin:	China
Brand Name:	FUYCONN
Certification:	UL 94-V0, ROHS-certified, ISO 9001:2008, ISO 14001:2004
Model Number:	FUY57103-2

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	Vacuum Tray + Carton
Delivery Time:	7-10 days
Payment Terms:	T/T or Paypal
Supply Ability:	1 million/ month

Contact Now

Clamp PCB Clip Male Centronic Connector 14 24 36 50 Pin

Description

Product Name:	Centronics Connector	Product Line:	Clamp Connector
Connector Style:	PCB Clip Connector	Number Of Terminal:	14 24 36 50 Pin
Gender:	Male	Pitch:	2.16mm
Material:	PBT
Highlight:	PCB Clip Centronic Connector , Clamp Centronic Connector , Male Centronics 14 Pin Connector

14Pin 24Pin 36Pin 50Pin Male Centronic Connector, Solder Clamp Male Type 57 CN Connector for 1.6mm PCB Board

Materials

Contact Material:	Brass
Insulator:	PBT (UL 94-V0)
Shell	Nickel Plated Steel
Housing Material:	Nickel Plated Steel

The Centronics connector has a plastic bar in the center of the connector body that holds the contact pins. The body of the connector is often black or blue in color.

Power Dynamics shielded and unshielded Centronic connectors offer low cost cable-to-board and board-to-board connections. They are available in 14, 24, 36, and 50 contacts. Termination types include P.C.B., solder cup, and I.D.C. They can be used in a wide variety of computer and data interface applications. All PDI Centronic connectors carry UL safety approvals.

Clamp PCB Clip Male Centronic Connector 14 24 36 50 Pin 0

Product Features
1. Product Line:	Centronic Connector
2. Product Name:	57 Connector
3. Connector Gender:	male Centronic Connector
4. Number of Position:	14pin 24pin 36pin 50pin
5. Contact Material:	Phosphore Bronze
6. Contact Plating:	1U", 3U", 5U", 10U", 15U",30U"
7. Insulation Material:	PBT
8. Color	Black or Blue
9. UL Flammability Rating	UL-94-V0
10. Certification	UL Certificated
11. Shell:	Nickel plated steel
12. Connector Type	PCB Clamp connector
13. Pitch	2.16mm pitch
14. Shell Type	MD Shape

Common Features

Designed for Cable-to-cable and cable-to-PC Board applications
Board Application
Terminal Option with various types
Connector and hood sold as complete assembly
Avilable in low profile hood style
Metal shell provides grounding and shielding capability
Mates with industry compatible connector

Electrical Character

Current Rating:	5Amp
Withstanding Voltage:	AC 1000v r.m.s
Insulation Resistance:	1000 Megohms Minimum at DC 500V
Contact Resistance:	25M∩ Max Mated
Operation Temperature:	-55°C to +105°C

Application

1, VDSL Teleccom Equipment
2, Computer Peripherals
3, Communication Equipment
4, RJ21 Cable
5, Cable to Panel
6, Cable to cable
7, Computer terminal
8, Telemetering
9, Test Equipment
10, Printer
