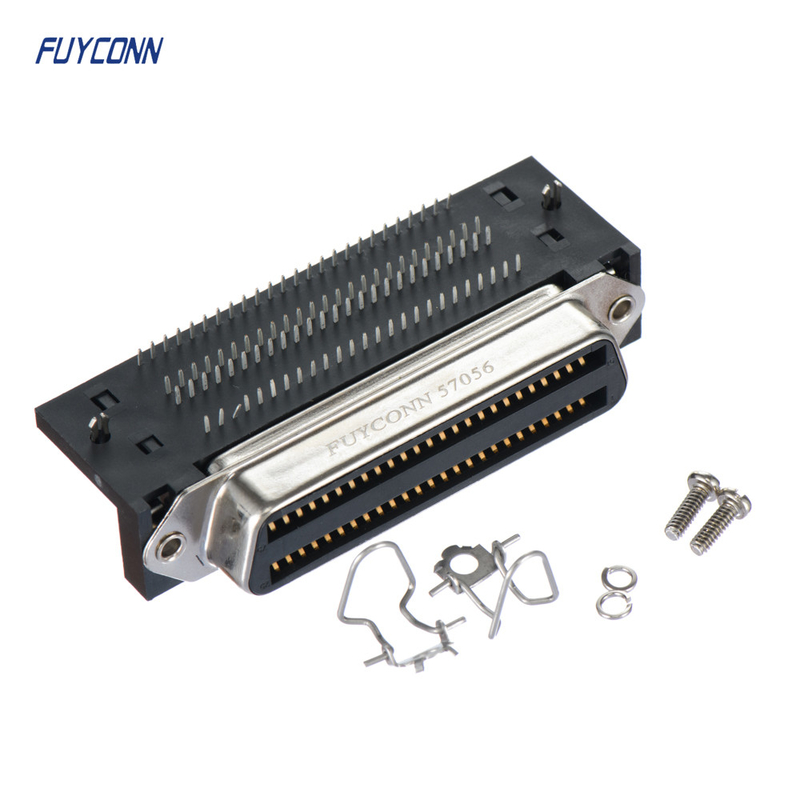

Amphenol 100 Pin Female PCB Right Angle Centronics Connector

Amphenol 100 Pin Female PCB Right Angle Centronics Connector

large.img.alt
large.img.alt

Large Image :  Amphenol 100 Pin Female PCB Right Angle Centronics Connector Get Best Price

Product Details:
Place of Origin: China
Brand Name: FUYCONN
Certification: UL 94-V0, ROHS-certified, ISO 9001:2008, ISO 14001:2004
Model Number: FUY57056
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Vacuum Tray + Carton
Delivery Time: 7-10 days
Payment Terms: T/T or Paypal
Supply Ability: 1 million/ month
Detailed Product Description
Connector Line: Centronic Connector Connector Type: Amphenol 957 Connector
Pin No.: 100 Pin Connector Gender: Female Centronic Connector
PCB Mount: Clips Contact Type: PCB Right Angle
Pitch: 2.16mm
High Light:

Right Angle Centronics Connector

,

100 Pin Female Centronics Connector

,

Amphenol PCB Right Angle Connector

Amphoenol 957 100pin Connector Female PCB Right Angle 100pos Centronics Connector



Amphenol 2.16mm Pitch Champ 957 100 pin Connector, PCB Mount DIP termination female 100pos Centronic connector for PCB Board



100pin 957 Connector, 957 100P connector, 100P Female Connector, Female 100pin Connector



Product Features

1. Product Line:
Centronic Connector
2. Product Name:
957 100pin Connector
3. Connector Gender:
Female Centronic Connector
4. Number of Position:
100pos
5. Contact Material:
Phosphore Bronze
6. Contact Plating:
1U", 3U", 5U", 10U", 15U",30U"
7. Insulation Material:
PBT
8. Color
Black
9. UL Flammability Rating
UL-94-V0
10. Certification
UL Certificated
11. Shell:
Nickel plated steel
12. Connector Type
PCB Right Angle
13. Pitch
2.16mm pitch
14. PCB Mounting
Bail Lock





The Centronics connector has a plastic bar in the center of the connector body that holds the contact pins. The body of the connector is often black or blue in color. Both male and female Centronics connectors are available. Male Centronics connectors have side latches that snap into tabs on the sides of female connectors. Female connectors also have slots to receive pins from male connectors.



Amphenol 100 Pin Female PCB Right Angle Centronics Connector 0



Advantage:
1, ROHS compliant, UL-approved
2, High quality, Competitive price
3, Quick delivery time
4, Free sample available in 2 days





Common Features

Designed for Cable-to-cable and cable-to-PC Board applications

Board Application

Available in Plug & Socket styles

Terminal Option with various types

Connector and hood sold as complete assembly

Available in low profile hood style

Metal shell provides grounding and shielding capability

Mates with industry compatible connector





Materials

Contact Material:

Phosphor Bronze

Insulator:

PBT (UL 94-V0)

Shell

Nickel Plated Steel


Electrical Character

Current Rating:

5Amp

Withstanding Voltage:

AC 1000v r.m.s

Insulation Resistance:

1000 Megohms Minimum at DC 500V

Contact Resistance:

25M∩ Max Mated

Operation Temperature:

-55°C to +105°C


Application

1, VDSL Teleccom Equipment

2, Computer Peripherals

3, Communication Equipment

4, PCB Board

5, Cable to Panel

6, Cable to cable

7, Computer terminal

8, Telemetering

9, Test Equipment

10, Printer
