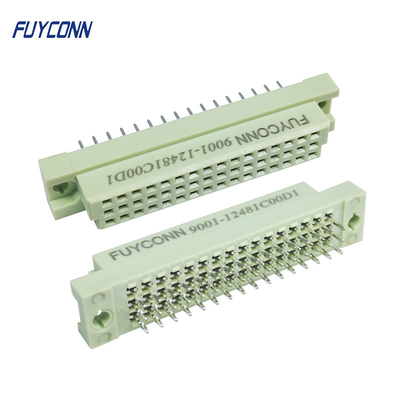

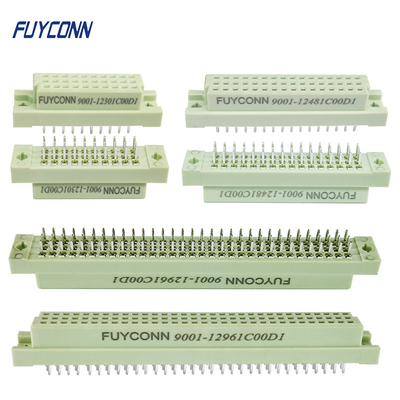

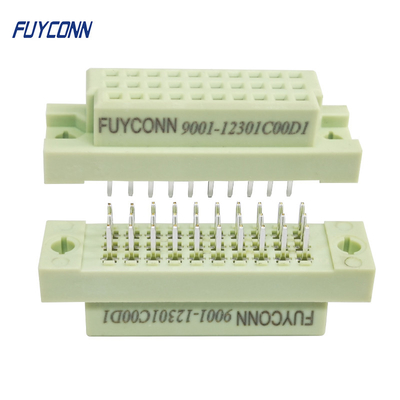

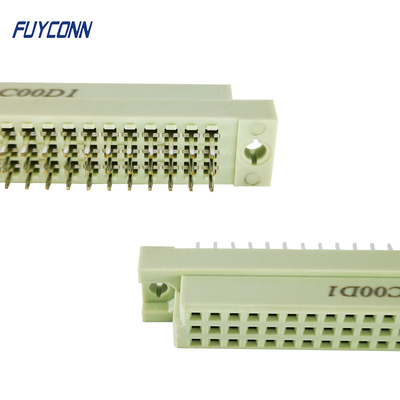

Straight Eurocard Connector 3 Rows Female PCB Vertical DIN41612 Connector Easy Type

Large Image : Straight Eurocard Connector 3 Rows Female PCB Vertical DIN41612 Connector Easy Type

Product Details:

Place of Origin:	China
Brand Name:	FUYCONN
Certification:	UL 94-V0, ROHS-certified ISO 9001:2008, ISO 14001:2004
Model Number:	Vertical Female DIN41612 Easy Type

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	Vacuum Tray + Carton
Delivery Time:	7-10 days
Payment Terms:	T/T or Paypal
Supply Ability:	1 million/ month

Contact Now

Straight Eurocard Connector 3 Rows Female PCB Vertical DIN41612 Connector Easy Type

Description

Connector Name:	Eurocard Connector	Connector Line:	Din41612 Connector
No. Of Pin:	30pin 48pin 96pin	Pitch:	2.54mm Pitch
Connector Type:	PCB Straight Connector	Gender:	Female Receptacle
No. Of Rows:	3 Rows	Contact Type:	Vertical Easy Type
Highlight:	Straight Eurocard Connector , PCB Vertical DIN41612 Connector , 3 Rows Female DIN41612 Connector

Straight Eurocard Connector 3 Rows Female PCB Vertical DIN41612 Connector Easy Type

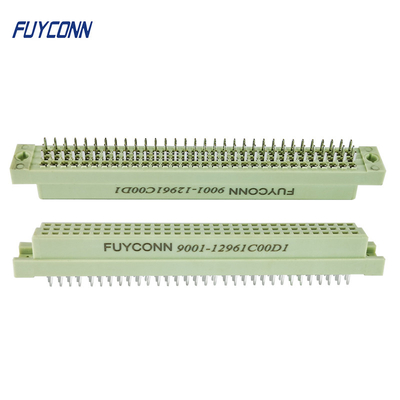

2.54mm pitch 96pin 3rows Vertical PCB DIN41612 Connector, Easy Type 3*32pin 96Pin Straight pcb Female Euro 41612 connector

Straight Eurocard Connector 3 rows Female PCB Vertical DIN41612 Connector Easy Type

DIN 41612.pdf

DIN 41612 is a DIN standard for electrical connectors that are widely used in rack based electrical systems. Standardization of the connectors is a pre-requisite for open systems, where users expect components from different suppliers to operate together.

The DIN 41612 has been widely accepted as a standard for a variety of interconnection applications in the telecommunications and data markets worldwide. The most widely known use of DIN 41612 connectors is in the VME bus system. 96 pin DIN connectors with three rows (a, b, c) of contacts on 0.100" (2.54mm) square grid are available in wire-wrap or solder tail type terminations.

Product Specifications

Product Line:	DIN41612 Connector
Product Name:	Eurocard connector
Connector Type:	PCB DIN 41612 Connector
Connector Gender:	Female
Number of Position:	5/10/15/20/30/32/48/64/96 pin
Number of rows:	3 rows
Contact Material:	Brass
Contact Plating:	1U", 3U", 5U", 10U", 15U", 30U"
Insulation Material:	PBT
Color:	Gray
Terminal Type:	Straight Easy Type
Pitch:	2.54mm or 5.08mm

Electrical Specifications

Current Rating:	2Amp
Voltage rating:	AC 1000v for minute
Insulator Resistance:	1000 MΩ min. at DC500V
Contact Resistance:	30mΩ max. at DC 100MA
Operation Temperature:	-55°C to +105°C

Technology Parameters
