Product Details:
|
| Product Line: | Eurocard Connector | Number Of Terminal: | 3*16 16pin 32pin 48pin 64pin 96pin |
|---|---|---|---|
| Number Of Rows: | 3 Rows | Terminals Type: | Press Pin / Solderless |
| Connector Type: | PCB Type | Insulator Color & Material: | Grey & PBT |
| Contact Pin Material: | Phosphor Bronze | Contact Plating: | Gold Plating(1u",3u",5u",10u",15u") |
| Pitch: | 2.54mm / 5.08mm | Gender: | Female |
| High Light: | Grey PBT Eurocard Connector,Solderless Terminal DIN 41612 Connector,Press Pin DIN 41612 Connector |
||

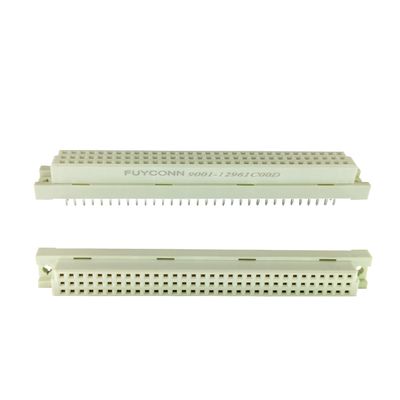

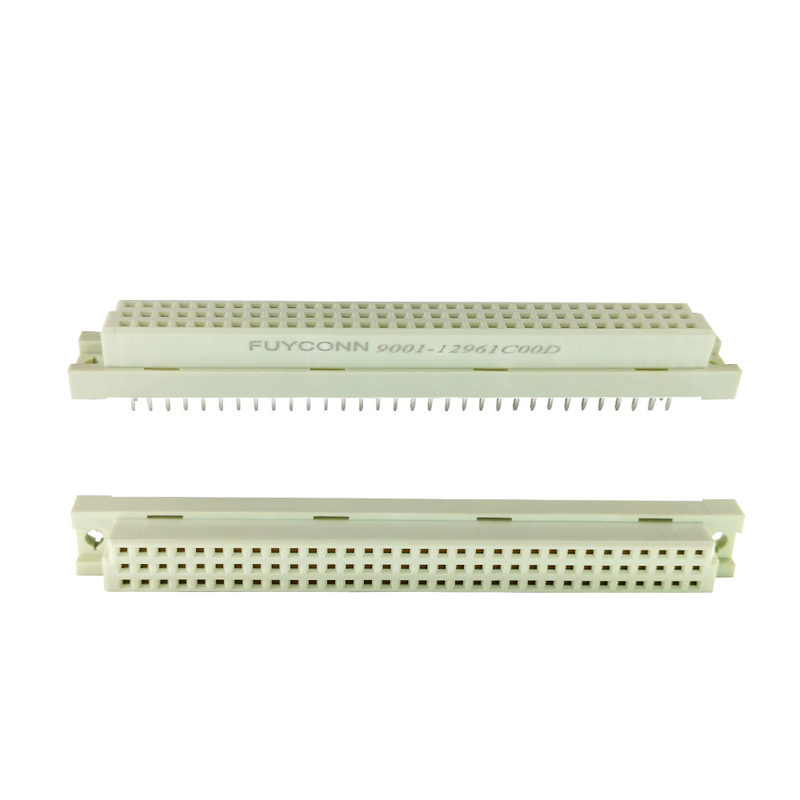

5.08mm pitch 16pin 48pin 3rows Solderless Euro Connector, 3*32Pin 64P 96P Straight Press Pin Female DIN41612 Connector for PCB
DIN 41612 is a DIN standard for electrical connectors that are widely used in rack based electrical systems. Standar disation of the connectors is a pre-requisite for open systems, where users expect components from different suppliers to operate together. The most widely known use of DIN 41612 connectors is in the VMEbus system.
The DIN 41612 has been widely accepted as a standard for a variety of interconnection applications in the telecommunications and data markets worldwide. The most widely known use of DIN 41612 connectors is in the VME bus system.DIN connectors with three rows(a, b, c) of contacts on 0.100"(2.54mm) square grid are available in wire-wrap or solder tail type terminations. 5pin 10pin, 15pin 20pin,30pin, 32pin 48pin 64pin and 96pin are available.
| Product features: | |
| 1. Product Line: | DIN41612 Connector |
| 2. Product Name: | Eurocard connector |
| 3. Connector Type | PCB DIN 41612 Connector |
| 4. Connector Gender: | Female |
| 5. Number of Position: | 16pin 32pin 48pin 64pin 96pin |
| 6.Number of rows: | 3 rows |
| 7. Contact Material: | Brass |
| 8. Contact Plating: | 1U", 3U", 5U", 10U", 15U",30U" |
| 9. Insulation Material: | PBT |
| 10.Color | Gray |
| 11. Terminal Type | Press Pin / Solderless |
| 12. Pitch | 2.54mm / 5.08mm |
| Electrical Specifications | |
| 1. Current Rating: | 5Amp |
| 2. Voltage rating: | DC 1000v per minute |
| 3. Insulator Resistance: | 1000Mn MIN.(at 500V DC) |
| 4. Operation Temperature: | -55°C to +105°C |
Eurocard line is available in board-to-board, wire-to-board, ribbon cable-to-board, and high-current connectors. Our Eurocard connectors incorporate internationally accepted design advantages of DIN 41612 and IEC 60603-2 two-piece connectors in a quality design that provides high Signal Integrity (SI) and electrical performance. With a broad portfolio, it is easy to find the right connector type and style to fit your application. Common Bus Systems include STE Bus, CIMBUS, FUTUREBUS, VMEBus, MULTIBUS (II), NUBUS, VXi Bus, and VME 64X.
DIN 41612 connectors are used in Pancon,STEbus, Futurebus, VMEbus, Multibus II, NuBus, VXI Bus, eurocard TRAM motherboards, and Europe Card Bus, all of which typically use male DIN 41612 connectors on Eurocards plugged into female DIN 41612 on the backplane in a 19-inch rack chassis.
