Product Details:
|
| Product Name: | Centronics Connector | Gender: | Female Connector |
|---|---|---|---|
| Connector Type: | IDC Crimping Connector | No. Of Pin: | 50 / 64 Pin |
| Pitch: | 2.16mm | Gold Plating: | 1U", 3U", 5U" ,10U", 15U", 30U" |
| Contact Material: | Phosphore Bronze | Insulation Material: | PBT |
| High Light: | Centronic Tyco Connector,RJ21 Tyco Connector,Plastic Cover Centronics Connector |
||

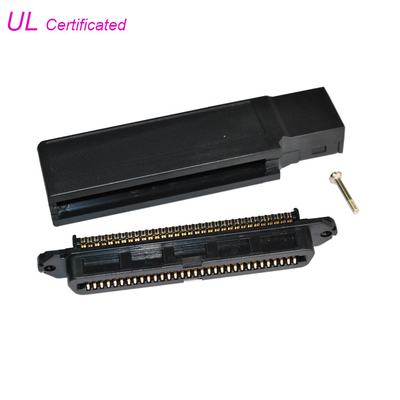

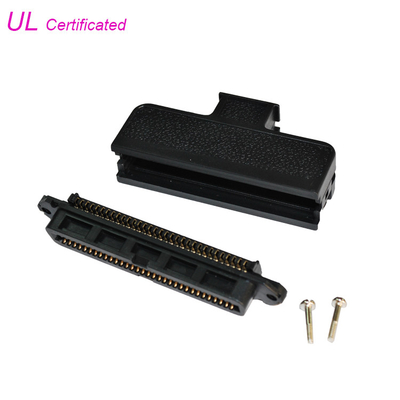

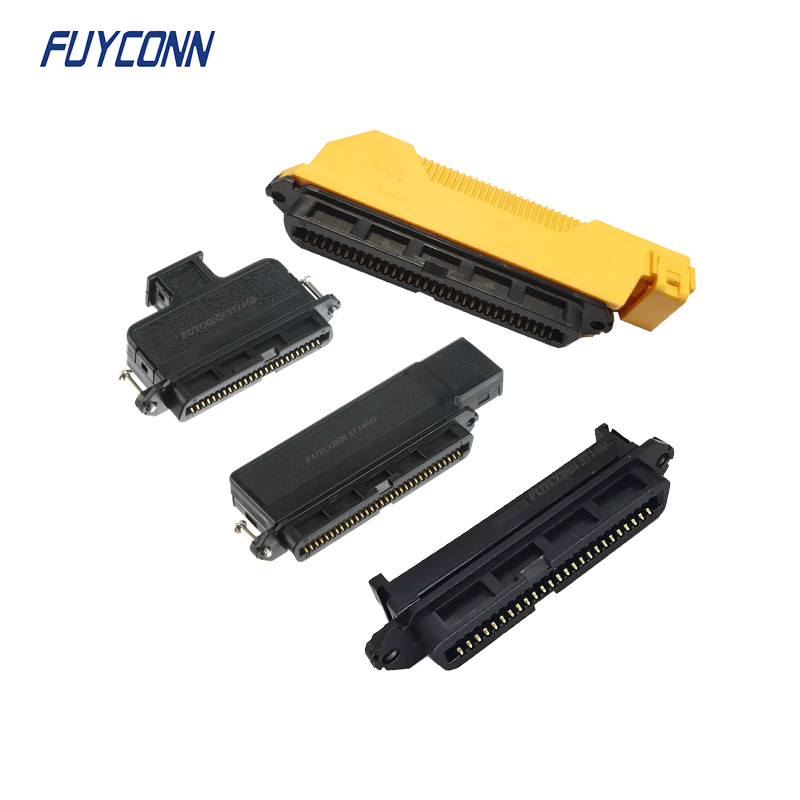

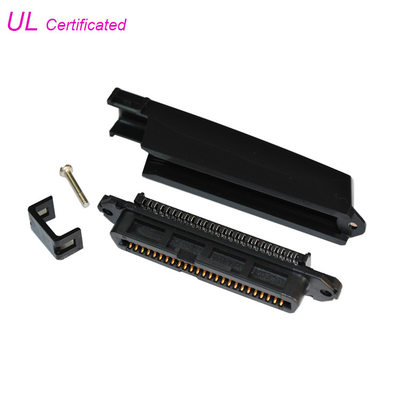

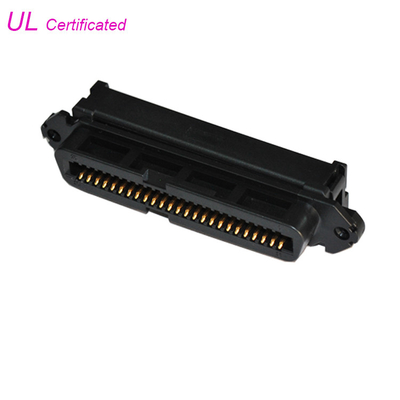

Female Centronic Connector 50 64 ways IDC RJ21 Tyco Connector w/ Plastic Cover
57RI 2.16mm pitch TYCO 36 pin IDC Connector Feamle Receptacle Black Insulator
Detail Description
Product Category: Centronic connector
Product Line: Champ Connector
Type: Centronic IDC Connector
Number of Terminal: 50/64 pin
Connector Style:Receptacle
Gender: Female
Insulator Color: Black
Insulator Material: PBT
Contact pin Material: Phosphor Bronze
Centerline = 2.16mm [0.085in]
Mounting Option: With Spring
Application: Communication Equipment
Common Features
| Designed for Cable-to-cable and cable-to-PC Board applications | |
| Avilable in Plug & Socket Style | |
| Terminal Option with various types | |
| Connector and hood sold as complete assembly | |
| Avilable in low profile hood style | |
| Metal shell provides grounding and shielding capability | |
| Mates with industry compatible connector |
Product Features
| Product Type: | Centronics IDC Connector |
| Product Line: | Champ Connector |
| Gender: | Female |
| Connector Style: | Receptacle |
| Certerline : | 2.16mm(0.85in) |
| Number of Position: | 50/64 pin |
| Contact Plating: | Gold Flash 1U", 3U", 5U" ,10U", 15U", 30U" |
| Insulator Color: | Black |
| Shielded: | Yes |
| Orientation: | Parllel Lines |
| Mating connector lock: | Screwlocks |
Materials
| Contact Material: | Phosphor Bronze |
| Insulator: | PBT (UL 94-V0) |
Electrical Character
| Current Rating: | 5Amp |
| Withstanding Voltage: | AC 1000v r.m.s |
| Insulation Resistance: | 1000 Megohms Minimum at DC 500V |
| Contact Resistance: | 25M∩ Max Mated |
| Operation Temperature: | -55°C to +105°C |
Application
| 1, VDSL Teleccom Equipment | |
| 2, Computer Peripherals | |
| 3, Communication Equipment | |
| 4, RJ21 Cable | |
| 5, Cable to Panel | |
| 6, Cable to cable | |
| 7,Computer terminal | |
| 8,Telemetering | |
| 9,Test Equipment | |
| 10, Printer |
Advantage
1,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample available in 2 days
