Product Details:
|
| Product Name: | Solder Cable Connector | Product Category: | Centronic Connector |
|---|---|---|---|
| Product Line: | Champ Connector | Type: | Centronic Solder Connector |
| Number Of Terminal: | 14 Pin, 24 Pin, 36 Pin, 50pin, 64pin | Gender: | Female |
| Color: | Black Or Blue | Material: | Brass & PBT |
| High Light: | Champ Centronic Connector,Female Centronic Connector,50pin Centronics Connector |
||

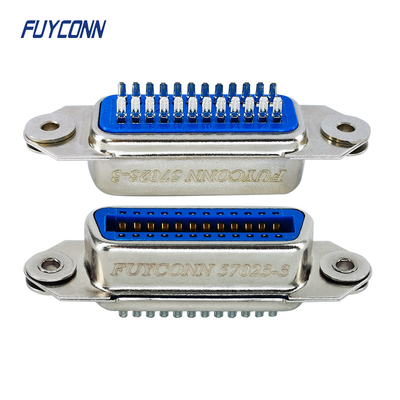

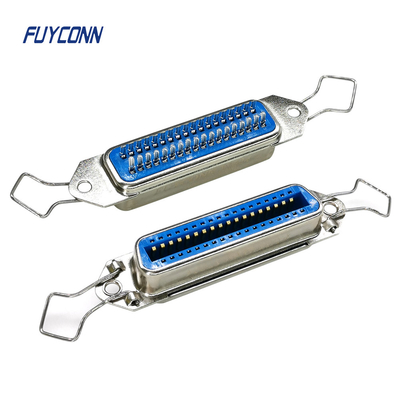

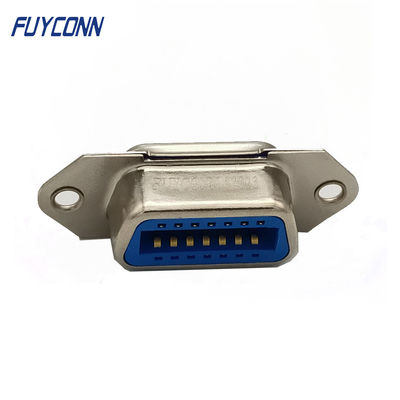

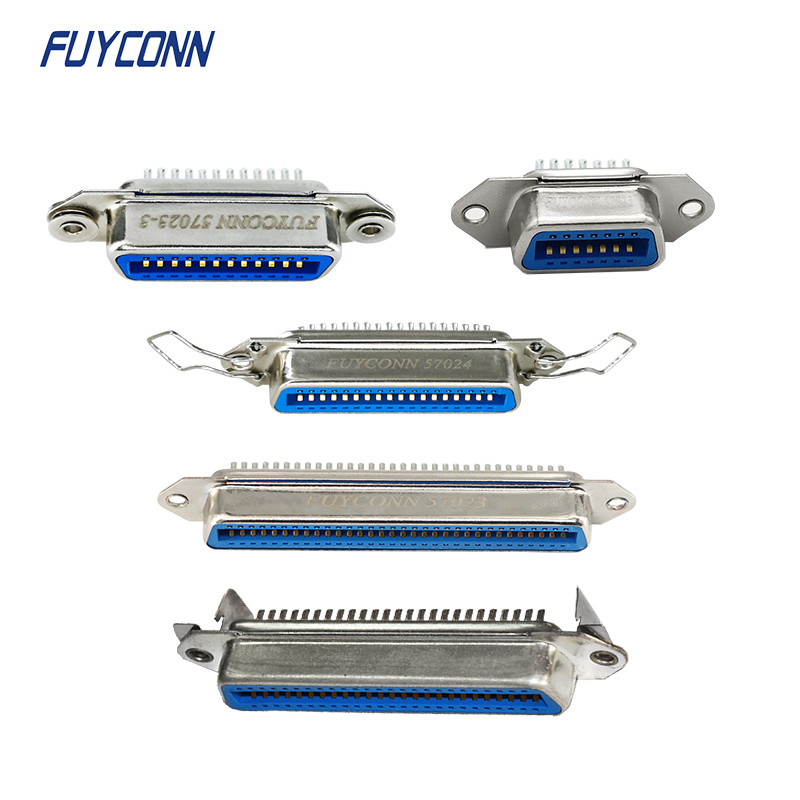

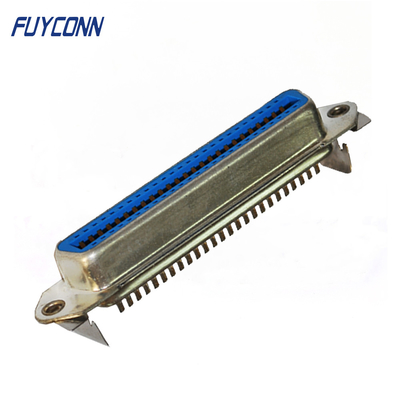

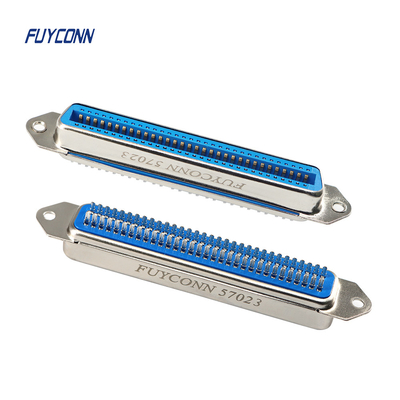

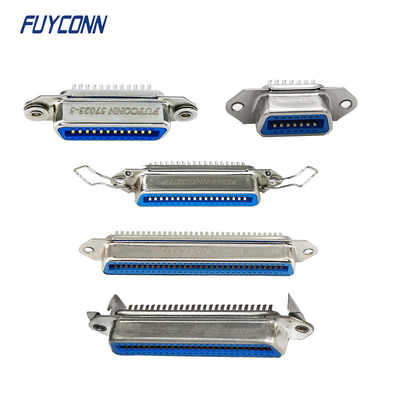

Solder Female Connector 14pin 24pin 36pin 50pin 64pin Solder Cup Centronic Connector
This type of connector got its name from the Centronics Corporation, a manufacturer based in Nashua, New Hampshire. Back in the 1970's, Centronics made printers for use with computers. As computers and attached printers became more popular, the connector that they used became the de facto industry standard. The Centronics Corporation was purchased by Genicom (now TallyGenicom) in the 1980's, but their name lives on in this connector.
The Centronics connector has a plastic bar in the center of the connector body that holds the contact pins. The body of the connector is often black or blue in color.
Detail Description:
Product Category: Centronic connector
Product Line: Champ Connector
Type: Centronic Solder Connector
Number of Terminal: 14pin, 24pin, 36pin, 50pin, 64pin
Connector Style:Receptacle
Gender: Female
Centerline = 2.16mm [0.085in]
Insulator Color: Black or Blue
Insulator Material: PBT
Contact pin Material: Brass
Shield Plating: Nickel
Mounting Option: Bail Clip
Common Features
| Designed for Cable-to-cable and cable-to-PC Board applications | |
| Board Application | |
| Terminal Option with various types | |
| Connector and hood sold as complete assembly | |
| Avilable in low profile hood style | |
| Metal shell provides grounding and shielding capability | |
| Mates with industry compatible connector |
Product Features
| Product Type: | Centronics Solder Connector |
| Product Line: | Champ Connector |
| Gender: | Female |
| Connector Style: | Receptacle |
| Certerline : | 2.16mm(0.85in) |
| Number of Position: | 14pin, 24pin, 36pin, 50pin, 64pin |
| Contact Plating: | Gold Plating (1U", 3U", 5U" ,10U", 15U", 30U") |
| Insulator Color: | Black or Blue |
| Shielded: | Yes |
| Orientation: | Parllel Lines |
| Mating connector lock: | Spring Latches |
Materials
| Contact Material: | Brass |
| Insulator: | PBT (UL 94-V0) |
| Shell | Nickel Plated Steel |
Electrical Character
| Current Rating: | 5Amp |
| Withstanding Voltage: | AC 1000v r.m.s |
| Insulation Resistance: | 1000 Megohms Minimum at DC 500V |
| Contact Resistance: | 25M∩ Max Mated |
| Operation Temperature: | -55°C to +105°C |
Application
| 1, VDSL Teleccom Equipment | |
| 2, Computer Peripherals | |
| 3, Communication Equipment | |
| 4, RJ21 Cable | |
| 5, Cable to Panel | |
| 6, Cable to cable | |
| 7,Computer terminal | |
| 8,Telemetering | |
| 9,Test Equipment | |
| 10, Printer |
