Product Details:
|
| Product Name: | Centronics PCB Connector | Gender: | Female Connector |
|---|---|---|---|
| Number Of Terminal: | 14/24/36/50/64 Pin | Gold Plating: | 1U", 3U", 5U" ,10U", 15U", 30U" |
| Type: | Right Angle PCB Connector | Color: | Black Or Blue |
| Contact Material: | Phosphore Bronze | Insulation Material: | PBT |
| High Light: | PBT Solder Dip Connectors,Centronics Solder Dip Connectors,PCB DDK Connector |
||

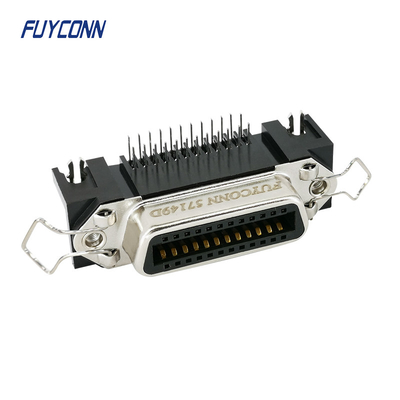

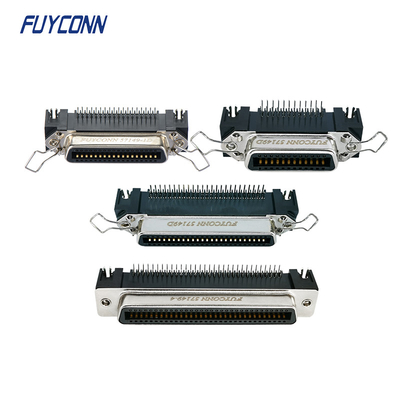

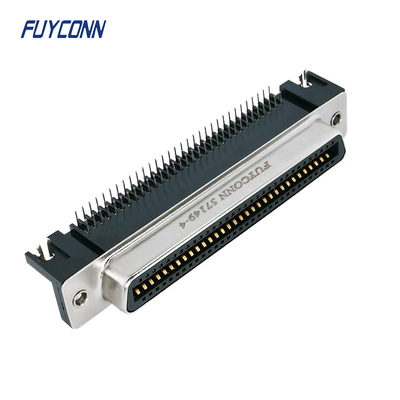

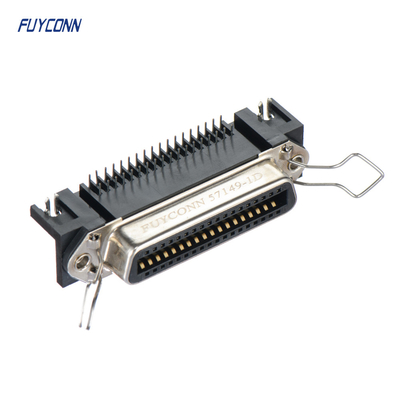

57LE-10 57LE-20 57LE-40 Right Angle Solder Dip Connectors 90 Degree PCB DDK Connector
Right Angle PCB 25 pairs Amphenol 50pos Centronic connector, 90 degree PCB Female Receptacle DDK 50pin Connector for PCB Board
This type of connector got its name from the Centronics Corporation, a manufacturer based in Nashua, New Hampshire. Back in the 1970's, Centronics made printers for use with computers. As computers and attached printers became more popular, the connector that they used became the de facto industry standard. The Centronics Corporation was purchased by Genicom (now TallyGenicom) in the 1980's, but their name lives on in this connector.
The Centronics connector has a plastic bar in the center of the connector body that holds the contact pins. The body of the connector is often black or blue in color.
Detail Description
Product Category: Centronic connector
Product Line: Champ Connector
Type: Right Angle PCB Connector
Number of Terminal: 64pin
PCB Mount Style:Right Angle
Connector Style:Receptacle
Gender: Female
Insulator Color: Black or Blue
Insulator Material: PBT
Contact pin Material: Phosphor Bronze
Shield Plating: Nickel
Centerline = 2.16mm [0.085in]
Mounting Option: Rivet L Bracket
Application: PCB Board
Advantage
1, ROHS compliant, UL-approved
2, High quality, Competitive price
3, Quick delivery time
4, Free sample available in 2 days
Common Features
|
Designed for Cable-to-cable and cable-to-PC Board applications |
|
|
Board Application |
|
|
Available in Plug & Socket styles |
|
|
Terminal Option with various types |
|
|
Connector and hood sold as complete assembly |
|
|
Available in low profile hood style |
|
|
Metal shell provides grounding and shielding capability |
|
|
Mates with industry compatible connector |
Product Features
|
Product Type: |
Centronics PCB Mounting Connector |
|
Product Line: |
Champ Connector |
|
Gender: |
Female |
|
Connector Style: |
Receptacle |
|
Certerline : |
2.16mm(0.85in) |
|
Number of Position: |
64pin |
|
Contact Plating: |
Gold Plating (1U", 3U", 5U" ,10U", 15U", 30U") |
|
Terminals Type |
Right Angle Terminals |
|
Insulator Color: |
Black or Blue |
|
Shielded: |
Yes |
|
Orientation: |
R/A |
|
Mating connector lock: |
L Bracket |
Materials
|
Contact Material: |
Phosphor Bronze |
|
Insulator: |
PBT (UL 94-V0) |
|
Shell |
Nickel Plated Steel |
Electrical Character
|
Current Rating: |
5Amp |
|
Withstanding Voltage: |
AC 1000v r.m.s |
|
Insulation Resistance: |
1000 Megohms Minimum at DC 500V |
|
Contact Resistance: |
25M∩ Max Mated |
|
Operation Temperature: |
-55°C to +105°C |
Application
|
1, VDSL Teleccom Equipment |
|
|
2, Computer Peripherals |
|
|
3, Communication Equipment |
|
|
4, PCB Board |
|
|
5, Cable to Panel |
|
|
6, Cable to cable |
|
|
7, Computer terminal |
|
|
8, Telemetering |
|
|
9, Test Equipment |
|
|
10, Printer |
