Product Details:
|
| Product Name: | Centronics Connector | Product Line: | Champ Connector |
|---|---|---|---|
| Type: | Centronic IDC Connector | Connector Style: | Plug |
| Number Of Terminal: | 50 Pin / 64 Pin | Gender: | Male |
| High Light: | 64pin Centronics Connector,IDC Plug Centronics Connector,Metal Hood Champ Connector |
||

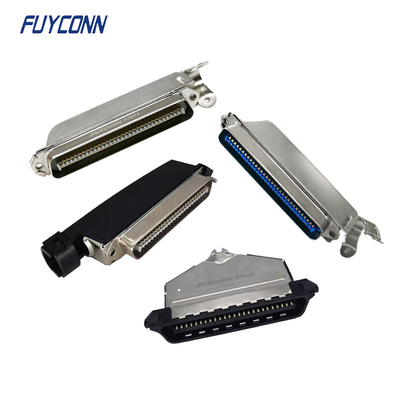

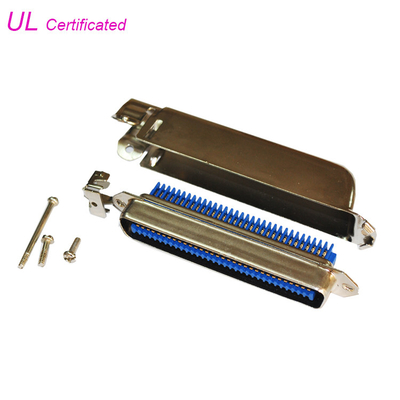

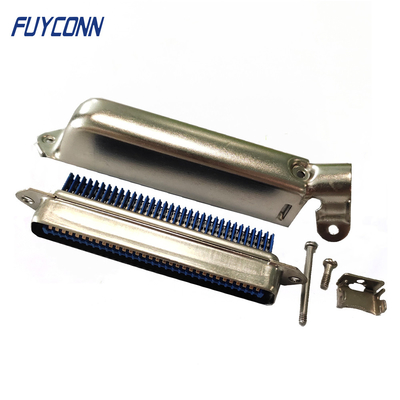

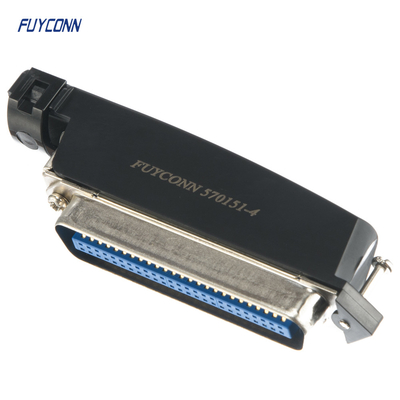

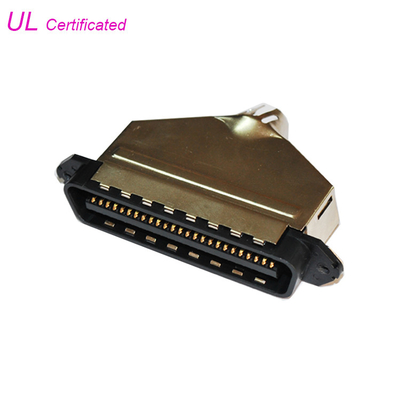

IDC Centronics Connector 50pin 64pin Male IDC Plug Type Connector w/ Metal Hood
The Centronics 50-pin connector is arranged in two rows of pins each with 25 contacts. This connector is held in place by bail locks. The Centronics 50 connector is most often used by older SCSI-1 devices (scanners, storage devices, etc.). A slight variant of the Centronics 50 connector is used in voice/data applications. This variant is commonly called a Telco connector.
|
Product Features: |
|
|
Product Type: |
Centronics IDC Connector |
|
Product Line: |
Champ Connector |
|
Gender: |
Male |
|
Connector Style: |
Plug |
|
Certerline : |
2.16mm(0.85in) |
|
Number of Position: |
50 pin / 64 pin |
|
Contact Plating: |
Gold Flash 1U", 3U", 5U" ,10U", 15U", 30U" |
|
Insulator Color: |
Black |
|
Shielded: |
Yes |
|
Orientation: |
180 / 90 Degree Cable Exit |
|
Mating connector lock: |
Screwlocks |
Detail Description:
Product Category: Centronic connector
Product Line: Champ Connector
Type: Centronic IDC Connector
Connector Style:Plug
Number of Terminal: 50 pin / 25 pairs
Gender: Male
Insulator Color: Black
Insulator Material: PPO
Contact pin Material: Phosphor Bronze
Shield Plating: Nickel
Centerline = 2.16mm [0.085in]
Mounting Option: 180°Cable Outlet
Cover: Metal Cover
Application: RJ21 Cable
|
Common Features: |
|
|
Designed for Cable-to-cable and cable-to-PC Board applications |
|
|
Avilable in Plug & Socket Style |
|
|
Terminal Option with various types |
|
|
Connector and hood sold as complete assembly |
|
|
Avilable in low profile hood style |
|
|
Metal shell provides grounding and shielding capability |
|
|
Mates with industry compatible connector |
|
Materials |
|
|
Contact Material: |
Phosphor Bronze |
|
Insulator: |
PBT (UL 94-V0) |
|
Housing Material: |
Nickel Plated Steel |
|
Electrical Character |
|
|
Current Rating: |
5Amp |
|
Withstanding Voltage: |
AC 1000v r.m.s |
|
Insulation Resistance: |
1000 Megohms Minimum at DC 500V |
|
Contact Resistance: |
25M∩ Max Mated |
|
Operation Temperature: |
-55°C to +105°C |
|
Application |
|
|
1, VDSL Teleccom Equipment |
|
|
2, Computer Peripherals |
|
|
3, Communication Equipment |
|
|
4, RJ21 Cable |
Advantage:
1,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample available in 2 days
Technology Parameters
