Product Details:
|
| Connector Name: | Eurocard Connector | Gender: | Female Receptacle |
|---|---|---|---|
| No. Of Pin: | 20pin 32pin 64pin | Connector Line: | Din41612 Connector |
| Connector Type: | Straight Pcb Type | Pitch: | 2.54mm Pitch |
| No. Of Rows: | 2 Rows | Contact Type: | Easy Type |
| High Light: | Easy Type DIN 41612 Connector,2 Rows DIN 41612 Connector,Vertical Terminals DIN 41612 Connector |
||

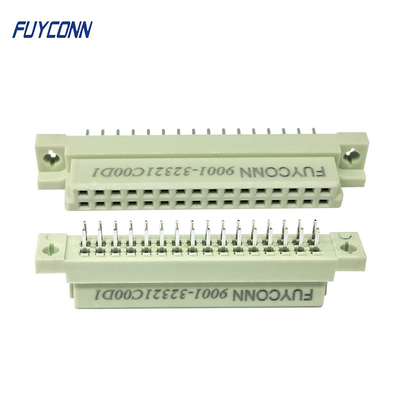

2.54mm 2 rows pcb vertical 2*16pin 32pin Female Euro 41612 Connector, Easy Type PCB straight 2 rows 32 pin DIN41612 Connector

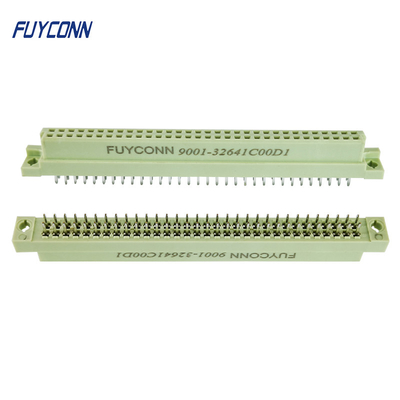

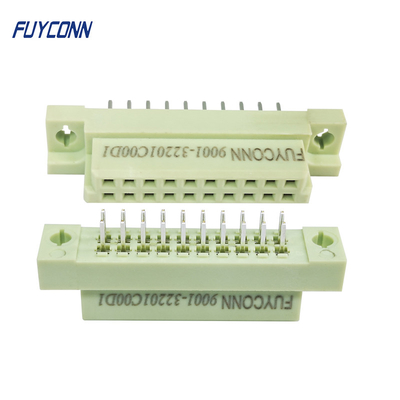

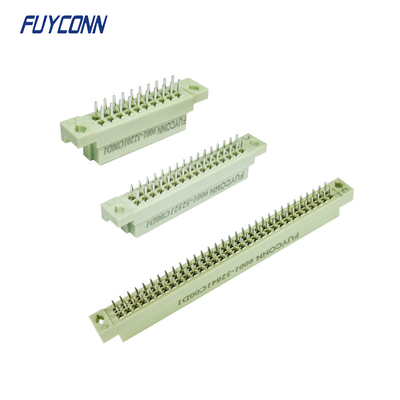

Female Euro Connector Easy Type 2 rows 20pin 32pin 64pin PCB DIN 41612 connector Vertical Terminals
DIN 41612 is a DIN standard for electrical connectors that are widely used in rack based electrical systems. Standar disation of the connectors is a pre-requisite for open systems, where users expect components from different suppliers to operate together. The most widely known use of DIN 41612 connectors is in the VMEbus system.
The DIN 41612 has been widely accepted as a standard for a variety of interconnection applications in the telecommunications and data markets worldwide. The most widely known use of DIN 41612 connectors is in the VME bus system.DIN connectors with three rows(a, b, c) of contacts on 0.100"(2.54mm) square grid are available in wire-wrap or solder tail type terminations. 5pin 10pin, 15pin 20pin,30pin, 32pin 48pin 64pin and 96pin are available.
DIN Type 2 rows 32P Vertical Female B Type European socket DIN 41612 connector
Detail Description
| 1. Product Line: | DIN41612 Connector |
| 2. Product Name: | Eurocard connector |
| 3. Connector Type | PCB DIN 41612 Connector |
| 4. Connector Gender: | Female |
| 5. Number of Position: | 20/32/48 pin |
| 6.Number of rows: | 2 rows |
| 7. Contact Material: | Brass |
| 8. Contact Plating: | 1U", 3U", 5U", 10U", 15U",30U" |
| 9. Insulation Material: | PBT |
| 10.Color | Gray |
| 11. Terminal Type | Straight Easy Type |
| 12. Pitch | 2.54mm or 5.08mm |
Electrical Specifications
| Current Rating: | 2Amp |
| Voltage rating: | AC 1000v for minute |
| Insulator Resistance: | 1000 MΩ min.at DC500V |
| Contact Resistance: | 30mΩ max. at DC 100MA |
| 4. Operation Temperature: | -55°C to +105°C |
Technology Parameters
