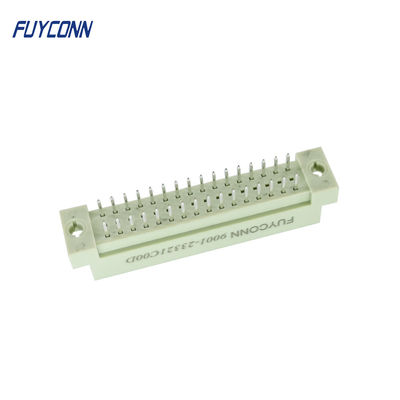

PCB Eurocard Connector 3 rows 32P Vertical Male DIN41612 Connector

Certification
China Dongguan Fuyconn Electronics Co,.LTD certification
China Dongguan Fuyconn Electronics Co,.LTD certification
I'm Online Chat Now

PCB Eurocard Connector 3 rows 32P Vertical Male DIN41612 Connector

PCB Eurocard Connector 3 rows 32P Vertical Male DIN41612 Connector
PCB Eurocard Connector 3 rows 32P Vertical Male DIN41612 Connector
PCB Eurocard Connector 3 rows 32P Vertical Male DIN41612 Connector PCB Eurocard Connector 3 rows 32P Vertical Male DIN41612 Connector PCB Eurocard Connector 3 rows 32P Vertical Male DIN41612 Connector PCB Eurocard Connector 3 rows 32P Vertical Male DIN41612 Connector PCB Eurocard Connector 3 rows 32P Vertical Male DIN41612 Connector PCB Eurocard Connector 3 rows 32P Vertical Male DIN41612 Connector

Large Image :  PCB Eurocard Connector 3 rows 32P Vertical Male DIN41612 Connector

Product Details:
Place of Origin: China
Brand Name: FUYCONN
Certification: UL 94-V0, ROHS-certified ISO 9001:2008, ISO 14001:2004
Model Number: FUYDIN082-332P
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Vacuum Tray + Carton
Delivery Time: 7-10 days
Payment Terms: T/T or Paypal
Supply Ability: 1 million/ month

PCB Eurocard Connector 3 rows 32P Vertical Male DIN41612 Connector

Description
Connector Line: Din41612 Connector Gender: Male Plug
Connector Type: Pcb Vertical Connector Insulation Material: PBT
Connector Name: European Connectore No. Of Pin: 32pin
High Light:

din female connector

,

din 41612 connectors

3rows 2*16 32pin Vertical PCB DIN41612 Connector, 2.54mm 2 Rows Straight Terminals 32 Pin Male Eurocard connector for PCB Board



DIN 41612.pdf



DIN 41612 is a DIN standard for electrical connectors that are widely used in rack based electrical systems. Standar disation of the connectors is a pre-requisite for open systems, where users expect components from different suppliers to operate together. The most widely known use of DIN 41612 connectors is in the VMEbus system.


The DIN 41612 has been widely accepted as a standard for a variety of interconnection applications in the telecommunications and data markets worldwide. The most widely known use of DIN 41612 connectors is in the VME bus system. 48 pin DIN connectors with three rows(a, b, c) of contacts on 0.100"(2.54mm) square grid are available in wire-wrap or solder tail type terminations.



Detail Description

1. Product Line: DIN41612 Connector
2. Product Name: Eurocard connector
3. Connector Type PCB DIN 41612 Connector
4. Connector Gender: Male
5. Number of Position: 5/10/15/20/30/32/48/64/96 pin
6.Number of rows: 3 rows
7. Contact Material: Brass
8. Contact Plating: 1U", 3U", 5U", 10U", 15U",30U"
9. Insulation Material: PBT
10.Color Gray
11. Terminal Type Right Angle
12. Pitch 2.54mm or 5.08mm



Electrical Specifications

Current Rating: 2Amp
Voltage rating: AC 1000v for minute
Insulator Resistance: 1000 MΩ min.at DC500V
Contact Resistance: 30mΩ max. at DC 100MA
4. Operation Temperature: -55°C to +105°C



Technology Parameters

PCB Eurocard Connector 3 rows 32P Vertical Male DIN41612 Connector 0
