Product Details:
|
| Connector Name: | Centronic Connector | Connector Type: | Straight Pcb Connector |
|---|---|---|---|
| Gender: | Female Connector | No. Of Pin: | 50pin 64pin 36 Pin |
| Pitch: | 2.16mm Pitch Connector | Contact Material: | Phosphor Bronze |
| Gold Plating: | 1u", 3u", 5u", 10u", 20u", 30u" | Insulation Color: | Black Or Blue |
| Insulation Material: | PBT | Application: | Printer |
| High Light: | PBT Centronics Printer Cable,PBT 36 Pin Centronics Female Connector,36 Pin Centronics Female Connector |
||
PCB 64 50 Pin Solderless Centronics Connector W/ Press Pin Contact

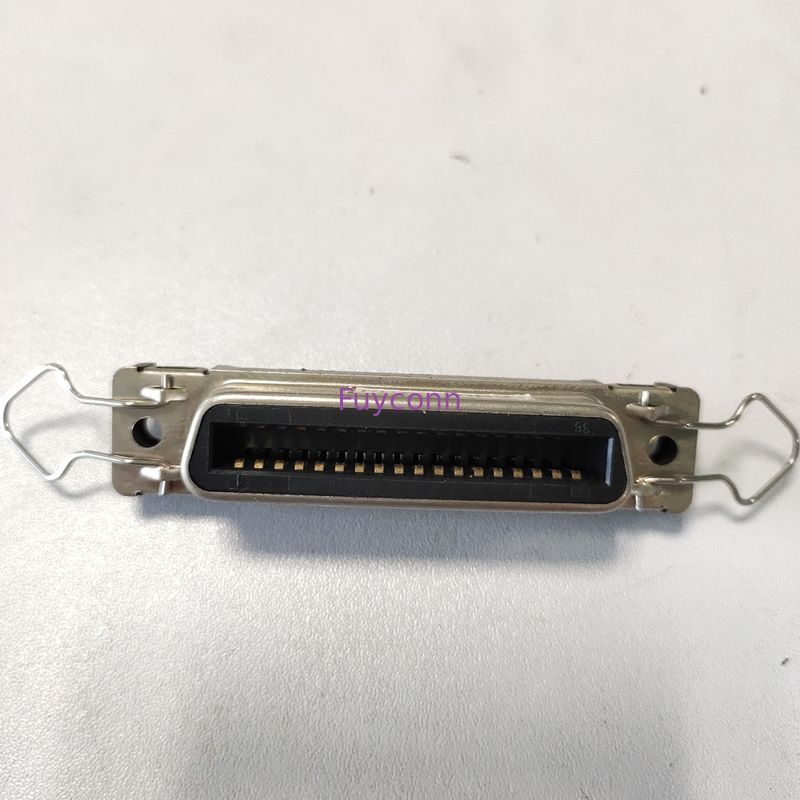

2.16mm pitch PCB 64 50 pin Solderless Centronics Connector, Female 50 contacts Press pin Panel Receptacle Connector
Power Dynamics shielded and unshielded Centronic connectors offer low cost cable-to-board and board-to-board connections. They are available in 14, 24, 36, and 50 contacts. Termination types include P.C.B., solder cup, and I.D.C. They can be used in a wide variety of computer and data interface applications. All PDI Centronic connectors carry UL afety approvals.
Detail Description
Advantage
1, ROHS compliant, UL-approved
2, High quality, Competitive price
3, Quick delivery time
4, Free sample available in 2 days
Common Features
| Designed for Cable-to-cable and cable-to-PC Board applications | |
| Board Application | |
| Available in Plug & Socket styles | |
| Terminal Option with various types | |
| Connector and hood sold as complete assembly | |
| Available in low profile hood style | |
| Metal shell provides grounding and shielding capability | |
| Mates with industry compatible connector |
| Current Rating: | 5Amp |
| Withstanding Voltage: | AC 1000v r.m.s |
| Insulation Resistance: | 1000 Megohms Minimum at DC 500V |
| Contact Resistance: | 25M∩ Max Mated |
| Operation Temperature: | -55°C to +105°C |
Application
| 1, VDSL Teleccom Equipment | |
| 2, Computer Peripherals | |
| 3, Communication Equipment | |
| 4, PCB Board | |
| 5, Cable to Panel | |
| 6, Cable to cable | |
| 7, Computer terminal | |
| 8, Telemetering | |
| 9, Test Equipment | |
| 10, Printer |
Usually pin headers are through-hole devices (THD / THT), but surface mount devices (SMD / SMT) also exist. In the SMD case, the solder side of the pin is bent at a 90-degree angle for soldering to a pad on the PCB. On single-row SMD headers, the pins are bent alternately to one side or the other, and on double-row SMD headers, the pins are simply bent outward. If pin headers are optional, the THD variant is usually chosen for ease of hand assembly.
Headers can be straight (vertical) or right-angled, the latter form is sometimes used to join two PCBs together horizontally. [1]
In most cases, the header has one or two lines,[1] although some manufacturers offer three or more lines.
They are usually sold as long strips (usually 36 / 40 / 50 needles) that can be easily cut to the desired number of needles. Many lead lengths are available to minimize labor during PCB assembly.
Male headers are often associated with ribbon cable connectors. [4] Used alone, they accept jumper wires with 2.54 mm (0.1 in) and 2.00 mm (0.079 in) pitch. [5]
Header types can be categorized by pitch (the even distance between pins measured from center to center). Some common heading spacings are:[1]
5.08 mm (0.200 in)
3.96 mm (0.156 in)
2.54 mm (0.100 in) with 0.64 mm (0.025 in) square pin [6] or precision machined 0.50 mm (0.020 in) round pin [7]
2.00 mm (0.079 in) with 0.50 mm (0.020 in) square pin [8]
1.27 mm (0.050 in)
1.00 mm (0.0394 in)
