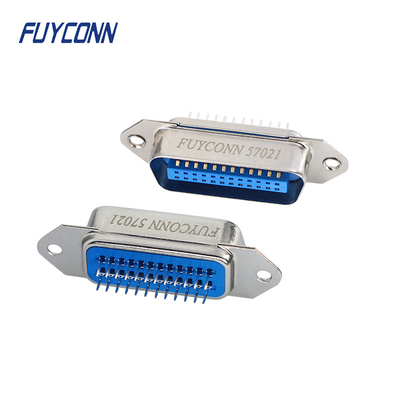

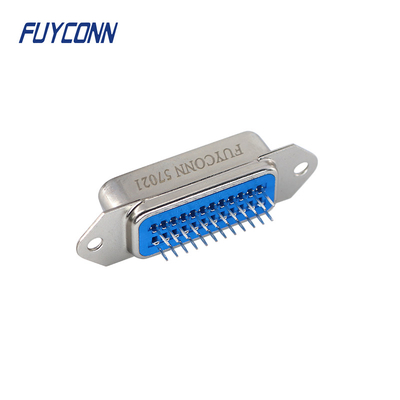

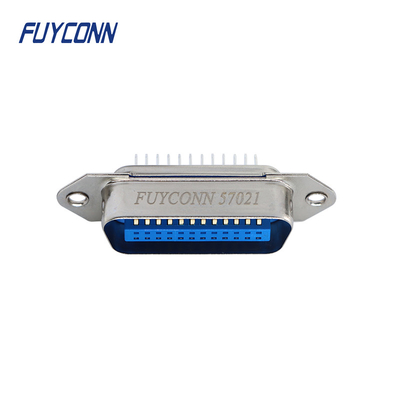

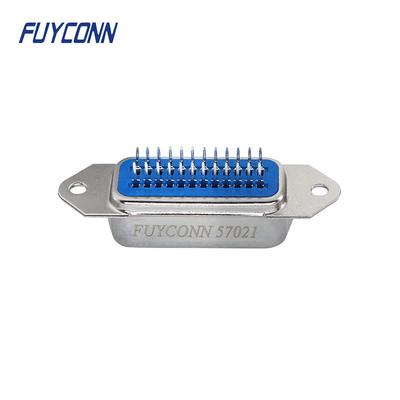

24pin Centronics Connector , 2.16mm Male Vertical PCB Connector

24pin Centronics Connector , 2.16mm Male Vertical PCB Connector
24pin Centronics Connector , 2.16mm Male Vertical PCB Connector 24pin Centronics Connector , 2.16mm Male Vertical PCB Connector 24pin Centronics Connector , 2.16mm Male Vertical PCB Connector 24pin Centronics Connector , 2.16mm Male Vertical PCB Connector 24pin Centronics Connector , 2.16mm Male Vertical PCB Connector

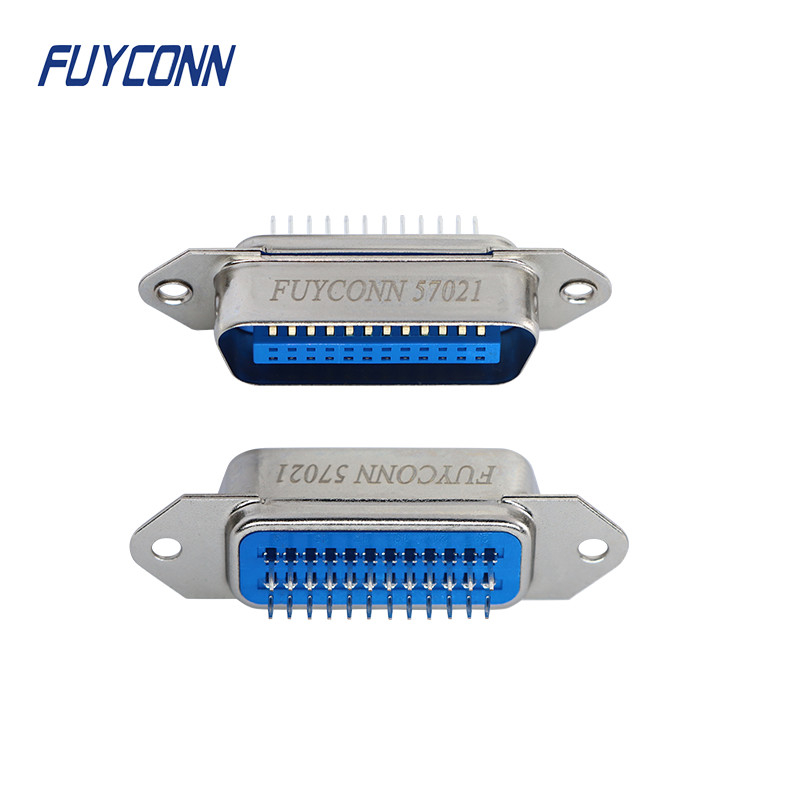

Large Image :  24pin Centronics Connector , 2.16mm Male Vertical PCB Connector

Product Details:
Place of Origin: China
Brand Name: FUYCONN
Certification: UL 94-V0, ROHS-certified, ISO 9001:2008, ISO 14001:2004
Model Number: FUY57021-24P
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Vacuum Tray + Carton
Delivery Time: 7-10 days
Payment Terms: T/T or Paypal
Supply Ability: 1 million/ month

24pin Centronics Connector , 2.16mm Male Vertical PCB Connector

Description
Product Name: Centronics Connector Product Line: DDK Connector
Connector Style: Solder Pin Connector Number Of Terminal: 24 Pin
Gender: Male Pitch: 2.16mm
Material: PBT PCB Mounting: Vertical
High Light:

Centronics Connector 24pin

,

Vertical PCB Centronics Connector

,

2.16mm Male Vertical PCB Connector

180 degree Vertical PCB Centronic Male Connector, PCB mount Straight 2.16mm pitch 24pin Centronics connector for PCB Board



The Centronics connector has a plastic bar in the center of the connector body that holds the contact pins. The body of the connector is often black or blue in color.



The Centronics connector has a plastic bar in the center of the connector body that holds the contact pins. The body of the connector is often black or blue in color.
The Centronics 50pin connector is arranged in two rows of pins each with 25 contacts, it is most often used by older SCSI-1 devices (scanners, storage devices, etc.).The Centronics 36pin connector is arranged in two rows of pins, each with 18 contacts. The connector is held in place by bail locks. The 36pin connector is often used for parallel applications, especially for printers.

24pin Centronics Connector , 2.16mm Male Vertical PCB Connector 0
Product features

1. Product Line:
Centronic Connector
2. Product Name:
57 CN Connector
3. Connector Gender:
Male
4. Number of Position:
14/24/36/50 pin
5. Contact Material:
Brass
6. Contact Plating:
1U", 3U", 5U", 10U", 15U",30U"
7. Insulation Material:
PBT
8. Certification
UL certification
9. Insulation Type
Easy Type
10. Shell:
Nickel plated steel
11. Orientation:
Standard
12. Pitch
2.16mm


Common Features

Designed for Cable-to-cable and cable-to-PC Board applications

Board Application

Terminal Option with various types

Connector and hood sold as complete assembly

Avilable in low profile hood style

Metal shell provides grounding and shielding capability

Mates with industry compatible connector



Materials

Contact Material:

Brass

Insulator:

PBT (UL 94-V0)

Shell

Nickel Plated Steel

Housing Material:

Nickel Plated Steel



Electrical Character

Current Rating:

5Amp

Withstanding Voltage:

AC 1000v r.m.s

Insulation Resistance:

1000 Megohms Minimum at DC 500V

Contact Resistance:

25M∩ Max Mated

Operation Temperature:

 -55°C to +105°C



Application

1, VDSL Teleccom Equipment

2, Computer Peripherals

3, Communication Equipment

4, RJ21 Cable

5, Cable to Panel

6, Cable to cable

7, Computer terminal

8, Telemetering

9, Test Equipment

10, Printer
