14pin Solder Centronic Connector Male Type 57 Series 2.16mm Pitch

Large Image : 14pin Solder Centronic Connector Male Type 57 Series 2.16mm Pitch

Product Details:

Place of Origin:	China
Brand Name:	FUYCONN
Certification:	UL 94-V0, ROHS-certified, ISO 9001:2008, ISO 14001:2004
Model Number:	FUY57028-14P

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	Vacuum Tray + Carton
Delivery Time:	7-10 days
Payment Terms:	T/T or Paypal
Supply Ability:	1 million/ month

Contact Now

14pin Solder Centronic Connector Male Type 57 Series 2.16mm Pitch

Description

Product Name:	Centronics Connector	Product Line:	DDK Connector
Connector Style:	Solde Pin Connector	Number Of Terminal:	14 24 36 50 Pin
Gender:	Male	Pitch:	2.16mm
Material:	PBT	PCB Mounting:	MD Type
Highlight:	14pin Solder Centronic Connector , 2.16mm Pitch Centronic Connector , MD Type Centronics Connector

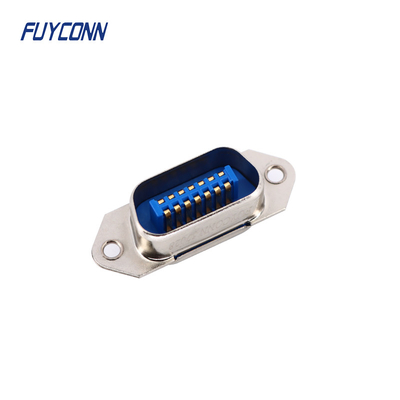

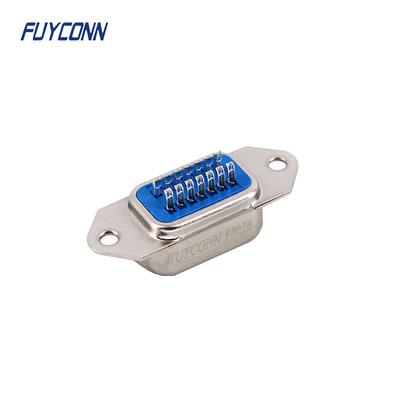

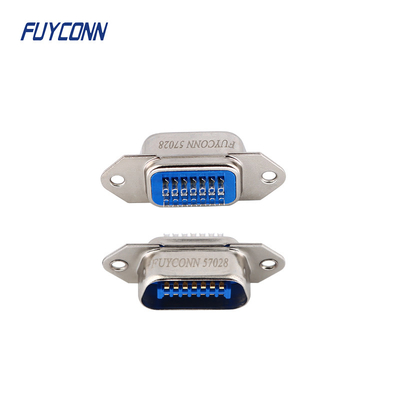

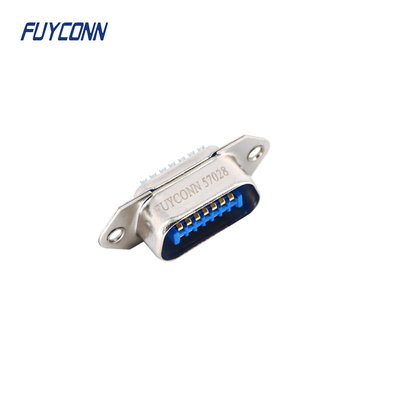

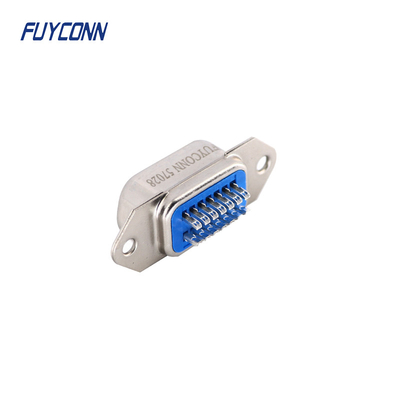

14pin Solder Centronic Connector Male Type 57 Series Connector 2.16mm Pitch

The Centronics connector has a plastic bar in the center of the connector body that holds the contact pins. The body of the connector is often black or blue in color.

The Centronics connector has a plastic bar in the center of the connector body that holds the contact pins. The body of the connector is often black or blue in color.

The Centronics 50pin connector is arranged in two rows of pins each with 25 contacts, it is most often used by older SCSI-1 devices (scanners, storage devices, etc.).The Centronics 36pin connector is arranged in two rows of pins, each with 18 contacts. The connector is held in place by bail locks. The 36pin connector is often used for parallel applications, especially for printers.


			Product features

			1. Product Line:

			Centronic Connector

			2. Product Name:

			57 CN Connector

			3. Connector Gender:

			Male

			4. Number of Position:

			14/24/36/50 pin

			5. Contact Material:

			Brass

			6. Contact Plating:

			1U", 3U", 5U", 10U", 15U",30U"

			7. Insulation Material:

			PBT

			8. Certification

			UL certification

			9. Insulation Color

			Black or Blue

			10. Shell:

			Nickel plated steel

			11. Orientation:

			Standard

			12. Pitch

			2.16mm

Common Features

Designed for Cable-to-cable and cable-to-PC Board applications
Board Application
Terminal Option with various types
Connector and hood sold as complete assembly
Avilable in low profile hood style
Metal shell provides grounding and shielding capability
Mates with industry compatible connector

Materials

Contact Material:	Brass
Insulator:	PBT (UL 94-V0)
Shell	Nickel Plated Steel
Housing Material:	Nickel Plated Steel

Electrical Character

Current Rating:	5Amp
Withstanding Voltage:	AC 1000v r.m.s
Insulation Resistance:	1000 Megohms Minimum at DC 500V
Contact Resistance:	25M∩ Max Mated
Operation Temperature:	-55°C to +105°C

Application

1, VDSL Teleccom Equipment
2, Computer Peripherals
3, Communication Equipment
4, RJ21 Cable
5, Cable to Panel
6, Cable to cable
7, Computer terminal
8, Telemetering
9, Test Equipment
10, Printer
