Product Details:
|
| Product Name: | Centronics Connector | Product Line: | DDK Connector |
|---|---|---|---|
| Connector Style: | Solde Pin Connector | Number Of Terminal: | 14 24 36 50 Pin |
| Gender: | Male | Pitch: | 2.16mm |
| Material: | PBT | PCB Mounting: | MD Type |
| High Light: | ISO 14001 Solder Connector,24pin Centronic Solder Connector,DDK Solder DIP Connector |
||

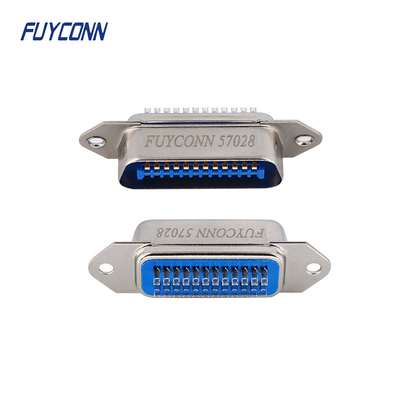

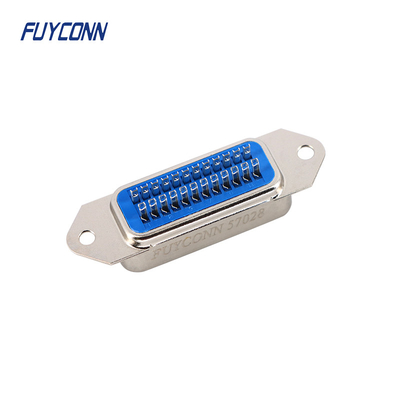

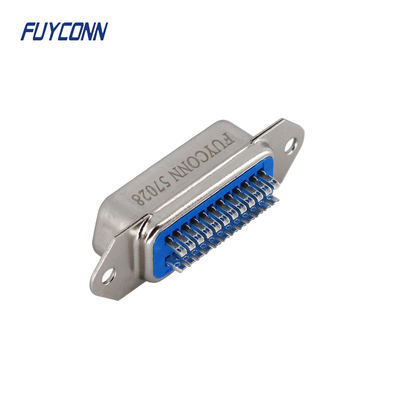

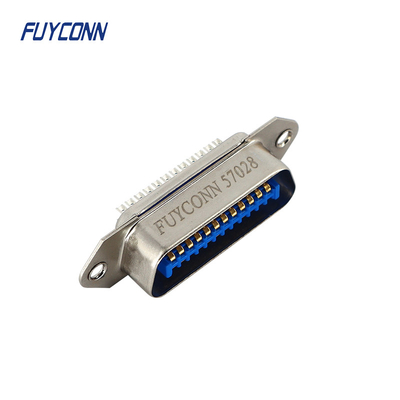

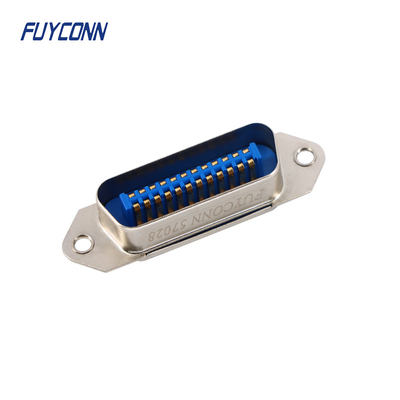

24pin Centronic Solder Connector DDK Solder DIP Connector
The Centronics connector has a plastic bar in the center of the connector body that holds the contact pins. The body of the connector is often black or blue in color.
Common Features
|
Designed for Cable-to-cable and cable-to-PC Board applications |
|
|
Board Application |
|
|
Terminal Option with various types |
|
|
Connector and hood sold as complete assembly |
|
|
Avilable in low profile hood style |
|
|
Metal shell provides grounding and shielding capability |
|
|
Mates with industry compatible connector |
Materials
|
Contact Material: |
Brass |
|
Insulator: |
PBT (UL 94-V0) |
|
Shell |
Nickel Plated Steel |
|
Housing Material: |
Nickel Plated Steel |
Electrical Character
|
Current Rating: |
5Amp |
|
Withstanding Voltage: |
AC 1000v r.m.s |
|
Insulation Resistance: |
1000 Megohms Minimum at DC 500V |
|
Contact Resistance: |
25M∩ Max Mated |
|
Operation Temperature: |
-55°C to +105°C |
Application
|
1, VDSL Teleccom Equipment |
|
|
2, Computer Peripherals |
|
|
3, Communication Equipment |
|
|
4, RJ21 Cable |
|
|
5, Cable to Panel |
|
|
6, Cable to cable |
|
|
7, Computer terminal |
|
|
8, Telemetering |
|
|
9, Test Equipment |
|
|
10, Printer |
